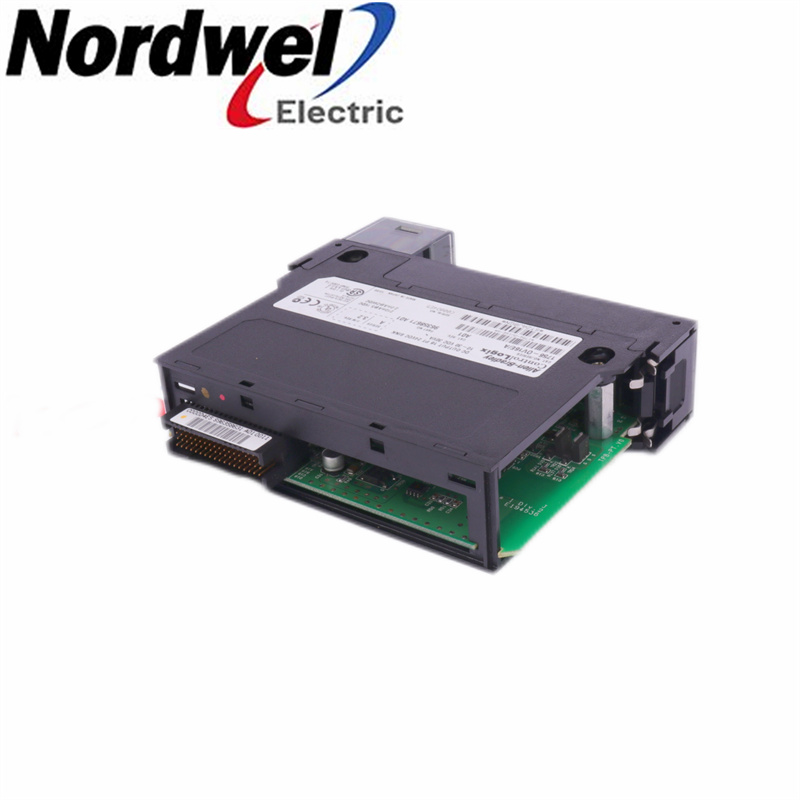

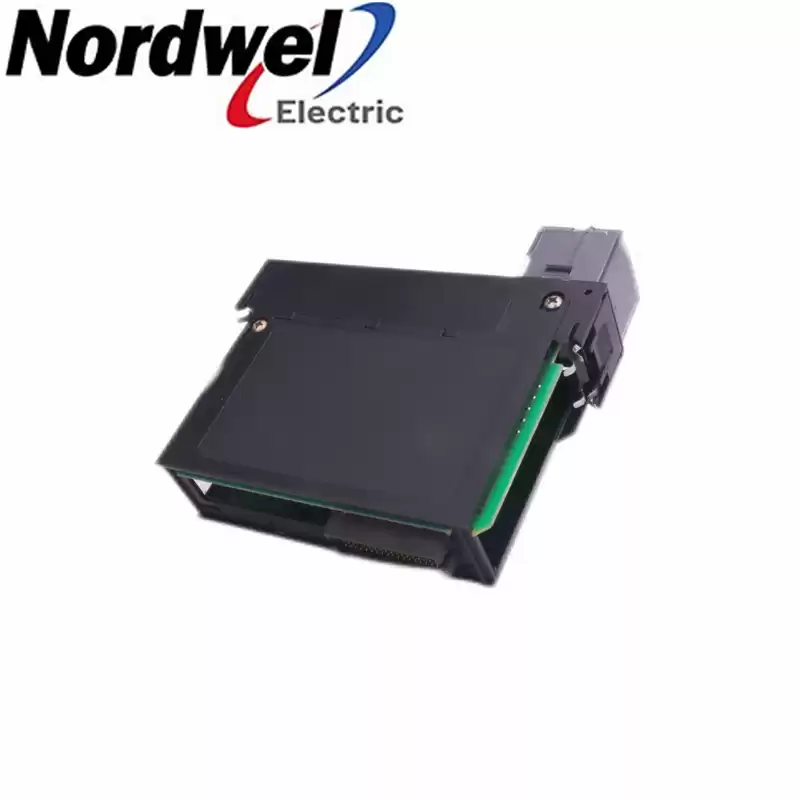

| 1756-OV16E | Electronically Fused Sinking Output Module

  • Description | 1756-OV16E | Electronically Fused Sinking Output Module
  • Place of OriginUSA
  • CertificationCOO
  • Manufacture YearThe latest year
  • Dimensions3.8 cm x 15.2 cm x 14.0 cm
  • Part Number1756-OV16E
  • Weight0.3 kg
Facebook Twitter Pinterest LinkedIn 分享

Product Details

  • Manufacturer Automation
  • Brand
  • Part Number/Catalog No. 1756-OV16E
  • Series ControlLogix
  • Module Type Electronically Fused Sinking Output Module
  • Outputs 16-Point Electronically Fused
  • Voltage 12-24 Volts DC Sink
  • Operating Voltage Range 10-30 Volts DC
  • Maximum Output Current Rating-Point 1 Amp at 60 Celsius
  • Maximum Output Current Rating-Module 8 Amps at 60 Celsius
  • Power Dissipation (Max) 6.72 Watts at 60 Celsius
  • Backplane Current at 5 Volts 210 milliamps
  • Removeable Terminal Block(s) 1756-TBNH, 1756-TBSH
  • Isolation Voltage 50 Volts Continuous
  • Enclosure None
