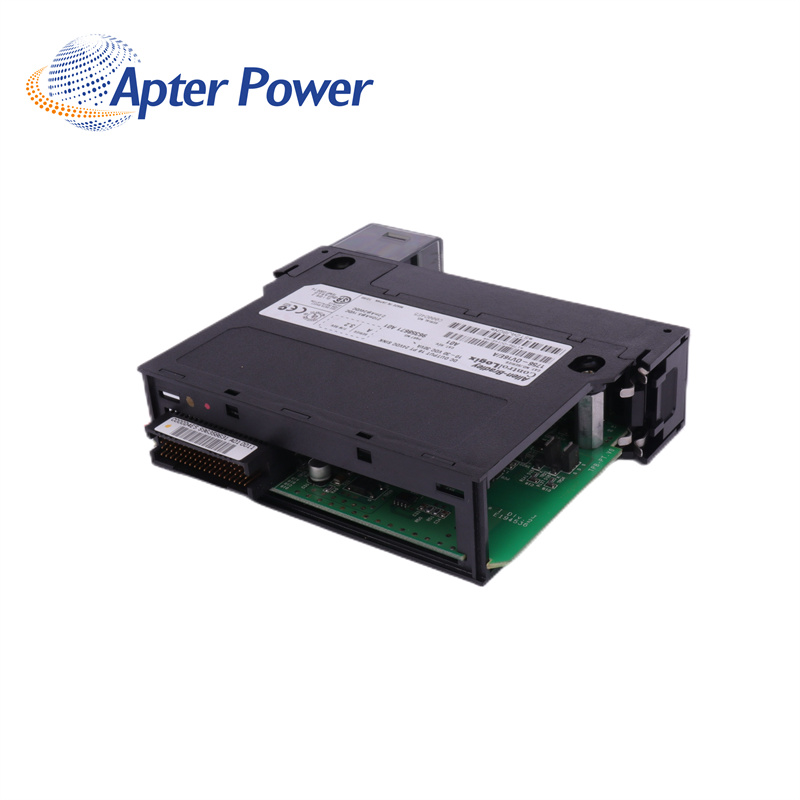

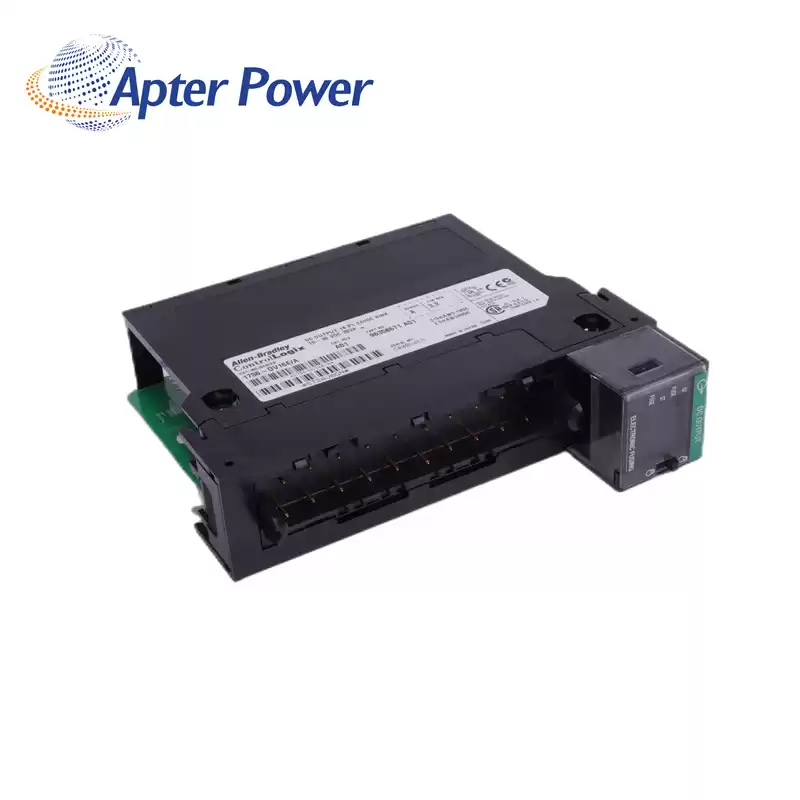

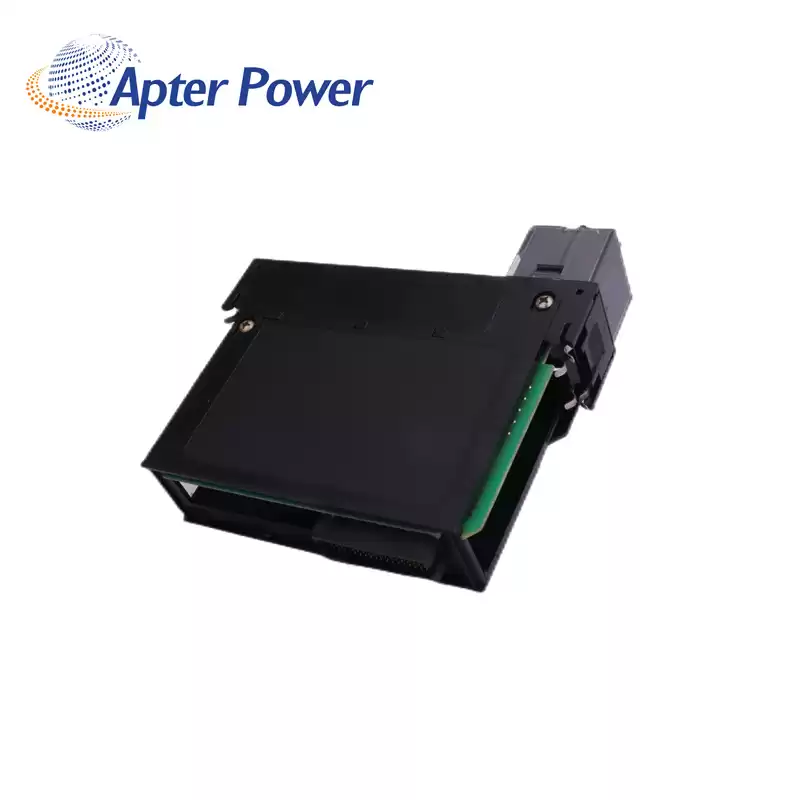

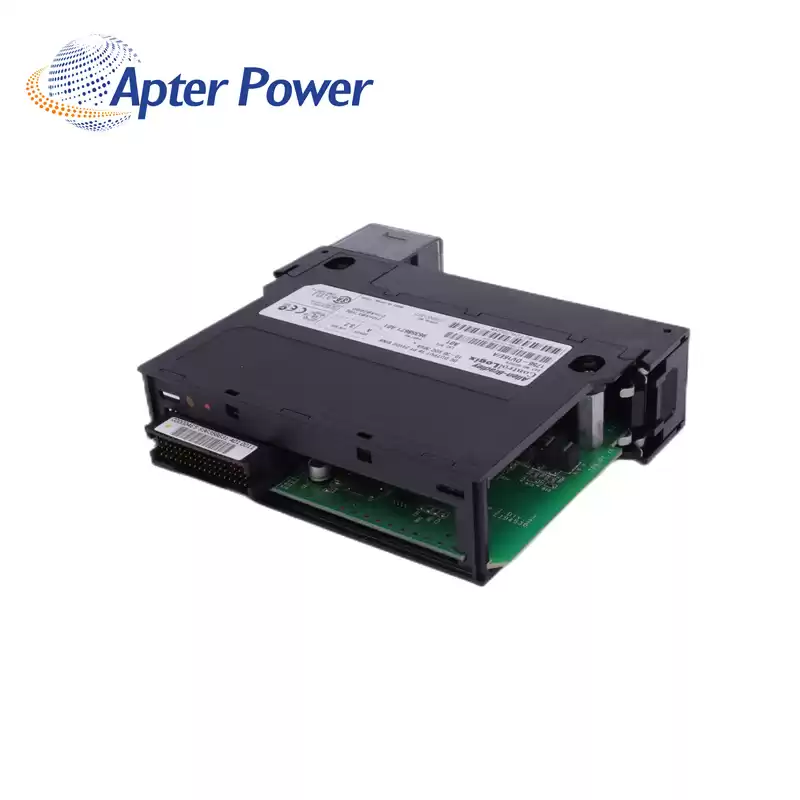

Technical Specifications for 1756-OV16E
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
210 milliamps
|
|
Part Number/Catalog No.
|
1756-OV16E
|
Output Current
|
15.0A
|
|
Module Type
|
Output Module
|
Input Voltage
|
10-30 Volts DC
|
|
Manufacture Year
|
2022
|
Power Dissipation
|
6.72 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10612598264367
|
About 1756-OV16E
|
The 1756-OV16E has an insulation voltage of 250V adopting basic insulation type routinely tested at 1350V AC for 2s between outputs-to-backplane and output group-to-group. It has an IEC designated T4 temperature code and a North America T4 temperature code and it comes in an open enclosure.
The 1756-OV16E has a nominal signal delay time of 75μs for OFF to ON state and 360μs for ON to OFF state and it has 1ms maximum delay time for both OFF to ON and ON to OFF. It has backplane ratings of 2mA at 5.1V and 210mA at 24V and a total power of 1.12W. The maximum power dissipation across the 1756-OV16E’s circuits is 6.72W and the maximum leakage current on each point is 1mAin the OFF state.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
