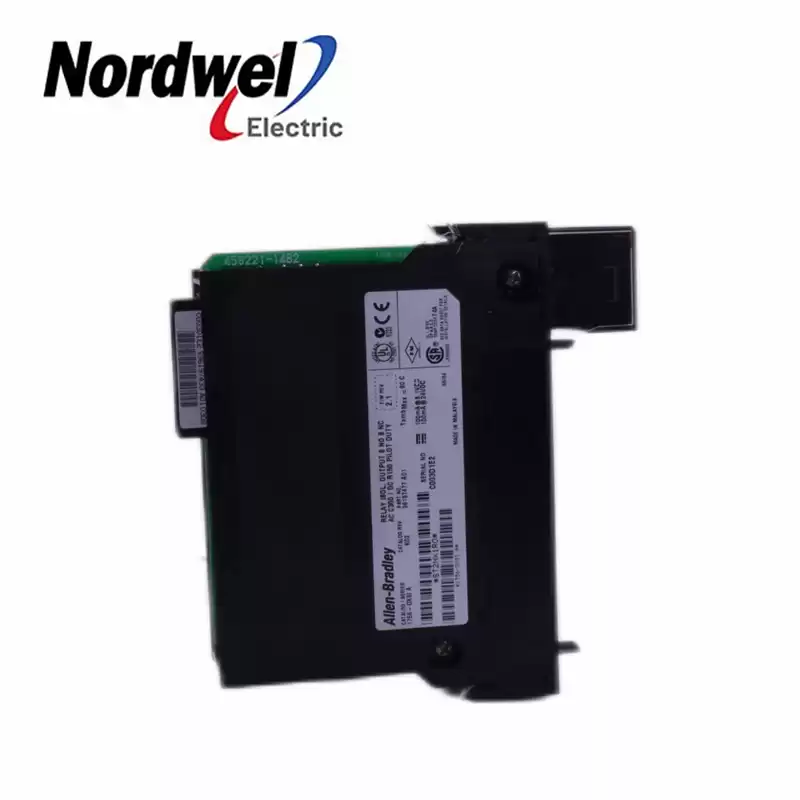

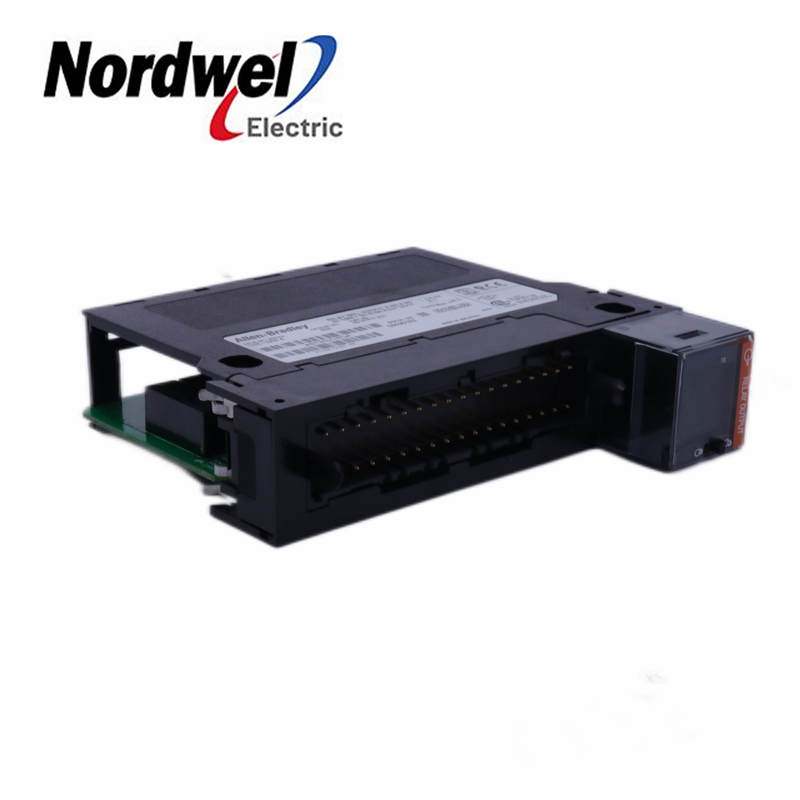

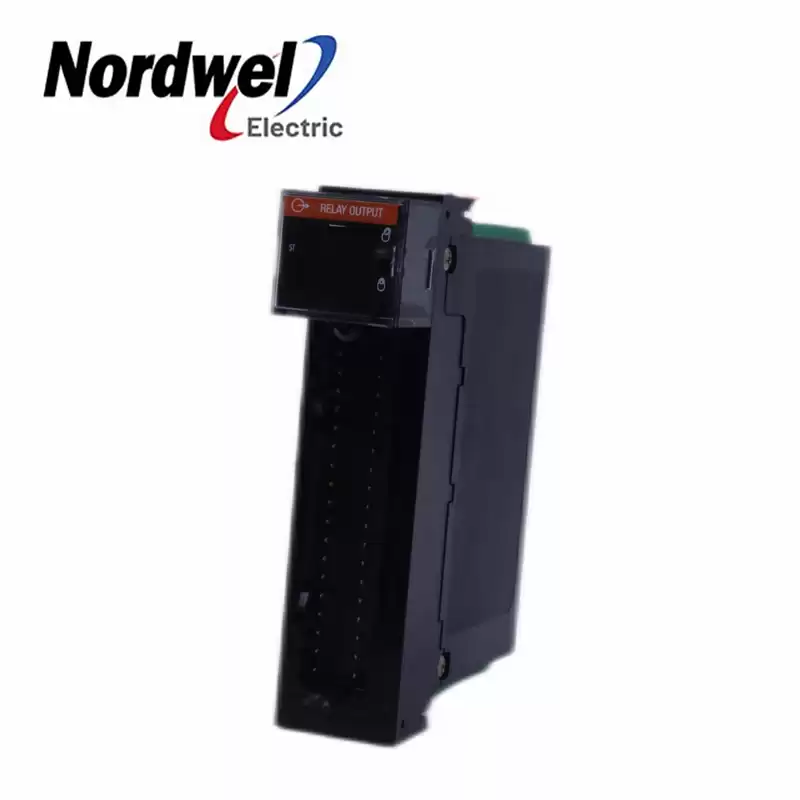

The 1756-OX8I is a ControlLogix Discrete output module which operate at a voltage category of 5 to 125VDC and
10 - 240 VAC. This module has Eight (8) Normally Open (N.O) and Eight (8) Normally Closed (N.C) contact outputs.
This module is directly installed to a 1756 local or remote chassis.
Technical Specifications for 1756-OX8I
Manufacturer Automation
Brand
Part Number/Catalog No. 1756-OX8I
Series ControlLogix
Outputs 8-Point Individually Isolated
Module Type Isolated Relay Output Module
Output Current 2, 0.5, 0.25 Amps
Contact Output Form C contacts
Operating Voltage 10-265 Volts AC, 5-150 Volts DC
Maximum Switching frequency 1 operation/3 s (0.3 Hz at rated load)
Mean Bounce Time 1.2 ms
Removeable Terminal Block(s) 1756-TBCH, 1756-TBS6H
Maximum Output Delay Time 13 milliseconds
Expected contact life 300 kHz resistive; 100 kHz inductive
Backplane Current at 5 Volts 100 mA
Power Dissipation (Max) 3.1 Watts at 60 Celsius
Enclosure None
Isolation Voltage 250V (continuous), basic insulation type, outputs-to- backplane, and
output-to-output
