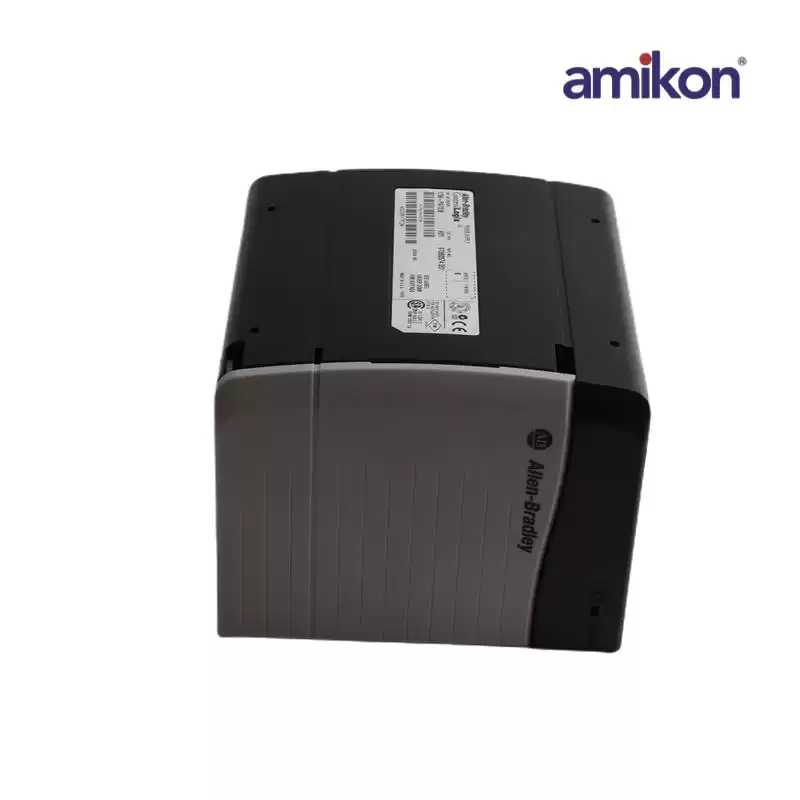

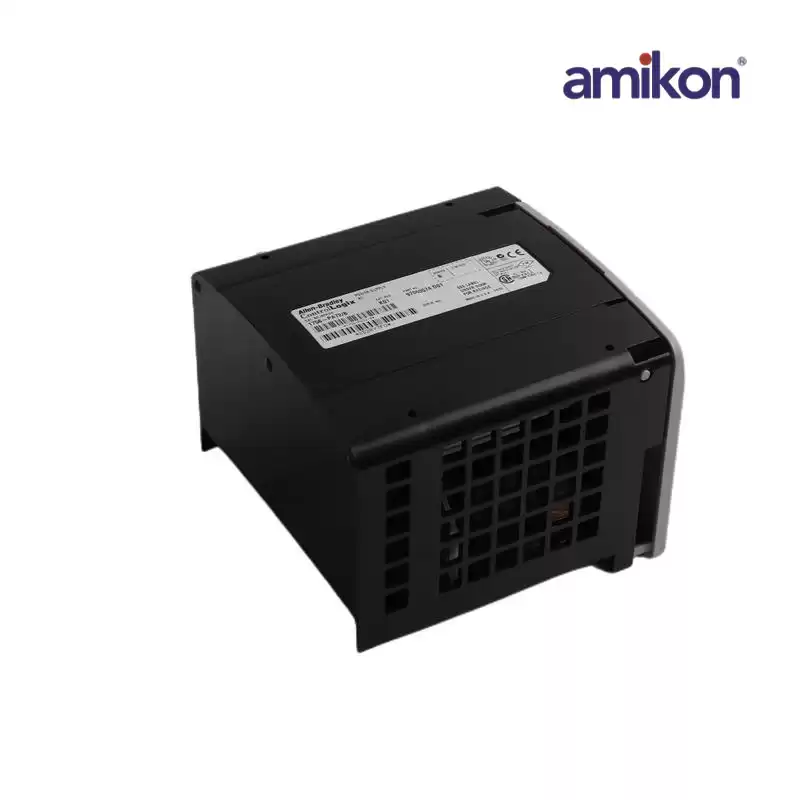

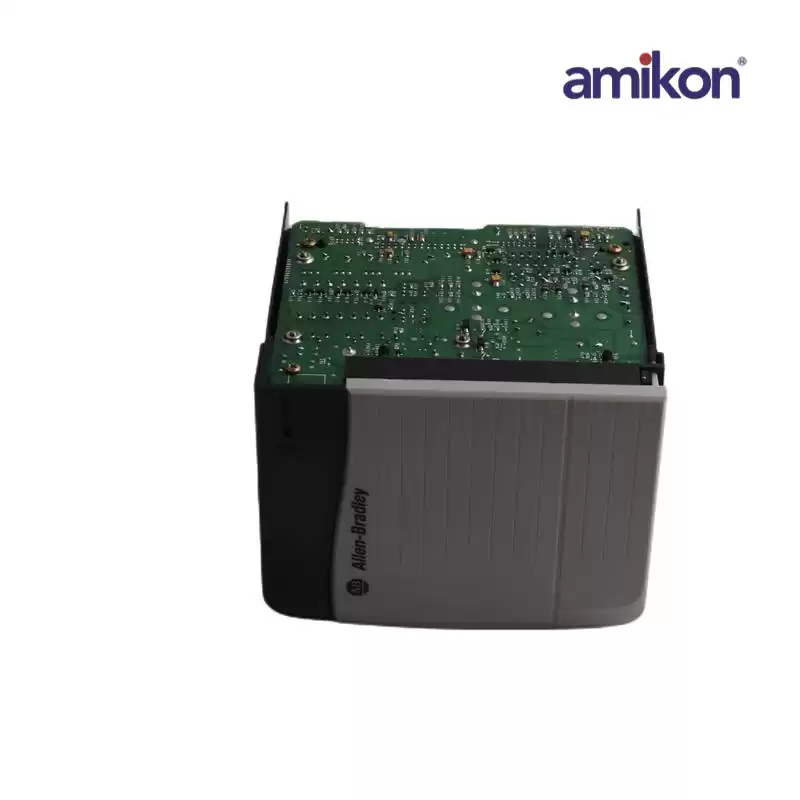

1756-PA72 Power Supply Module
|
|
Dimensions ：
|
17cmx12cmx3.2cm
|
Weight：
|
0.45kg
|
|
Full Description: 1756-PA72 ControlLogix AC Power Supply The 1756-PA72 is a ControlLogix Standard Power Supply. This Power Supply has an input Voltage of 85-265VAC with Nominal supply of 120V/240VAC
|
|
The 1756-PA72 has a power consumption of 25 Watts at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). This power supply has a power dissipation of 85.3 BTU/hour and a power supply with a maximum inrush current of 20 A. The 1756-PA72 provides built-in overcurrent protection. It is user-supplied at a maximum of 15 A.
The 1756-PA72 also has a reinforced insulation type tested at 3500 Volts DC for 60 seconds. The 1756-PA72 is open type equipment. This power supply should be installed in an appropriate enclosure that is designed for certain environmental conditions. The inside of the enclosure should be accessible only with a tool.
|
