1756-PA75R/AB IN STOCK WITH HIGH QUALITY
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Brand Name AB
Product reference 1756-PA75R
1756 ControlLogix Power Supplies Specifications
ControlLogix® power supplies are used with the 1756 chassis to provide 1.2V, 3.3V, 5V, and 24V DC power directly to
the chassis backplane. Standard, Slim, ControlLogix-XT™, and redundant power supplies are available.
Summary of Changes
This manual contains new and updated information as indicated in this table.
Standard Power Supplies Catalog Numbers 1756-PA72, 1756-PA72K, 1756-PA75, 1756-PA75K, 1756-PB72,
1756-PB72K,1756-PB75, 1756-PB75K,1756-PC75, 1756-PH75
Standard Slim Power Supplies Catalog Numbers 1756-PA50, 1756-PA50K, 1756-PB50, 1756-PB50K
ControlLogix-XT Power Supplies Catalog Numbers 1756-PAXT, 1756-PBXT
ControlLogix-XT Slim Power Supplies Catalog Numbers 1756-PA30XT, 1756-PB30XT
Redundant Power Supplies Catalog Numbers 1756-PA75R, 1756-PA75RK,1756-PB75R, 1756-PB75RK
Redundant Power Supplies Chassis Adapter Catalog Number 1756-PSCA2, 1756-PSCA2K
ControlLogix-XT Redundant Power Supplies Catalog Numbers 1756-PAXTR, 1756-PBXTR
ControlLogix-XT Redundant Power Supplies Chassis Adapter
Catalog Number
1756-PSCA2XT
Redundant Power Supply Power Cable Catalog Numbers 1756-CPR2, 1756-CPR2D, 1756-CPR2U
ControlLogix® power supplies are used with the 1756 chassis to provide 1.2V, 3.3V, 5V, and 24V DC power directly to
the chassis backplane. Standard, Slim, ControlLogix-XT™, and redundant power supplies are available.

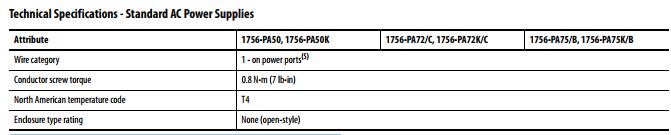

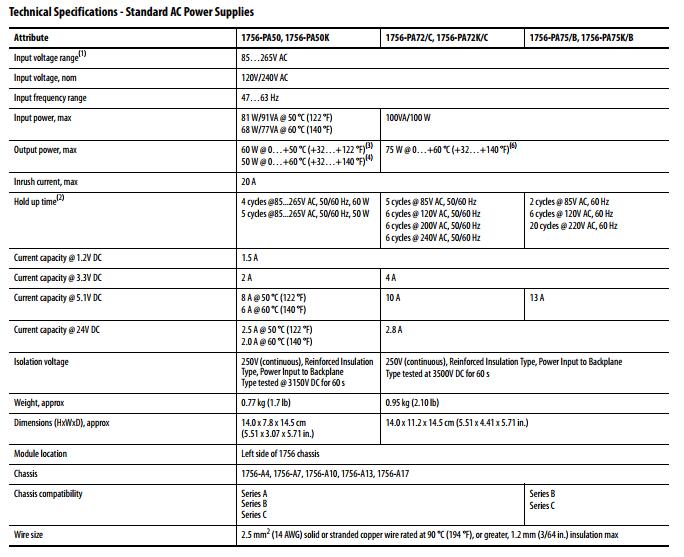

Standard AC Power Supplies
(1) UL certification for 120/240V AC, 50/60 Hz nominal. Rockwell Automation specified 85…265V AC, 47…63 Hz.
(2) The hold up time is the time between input voltage removal and DC power failure.
(3) The combination of all output power (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) cannot exceed 60 W @ 50 °C (122 °F) maximum temperature.
(4) The combination of all output power (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) cannot exceed 50 W @ 60 °C (140 °F) maximum temperature.
(5) Use this conductor category information to plan conductor routing as described in the system level installation manual. See the Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.
(6) The combination of all output power (5.1V backplane, 24V backplane, 3.3V backplane, and 1.2V backplane) cannot exceed 75 W.
