Technical Specifications for 1756-PB75
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Power Output
|
75 Watts at 60 Celsius
|
|
Part Number/Catalog No.
|
1756-PB75
|
Isolation Voltage
|
24 Volts DC
|
|
Module Type
|
Analog output Module
|
Input Frequency
|
47-63 Hertz
|
|
Manufacture Year
|
2021
|
Input Power
|
95 W
|
|
Product Package
|
Original Package
|
UPC
|
10612598206862
|

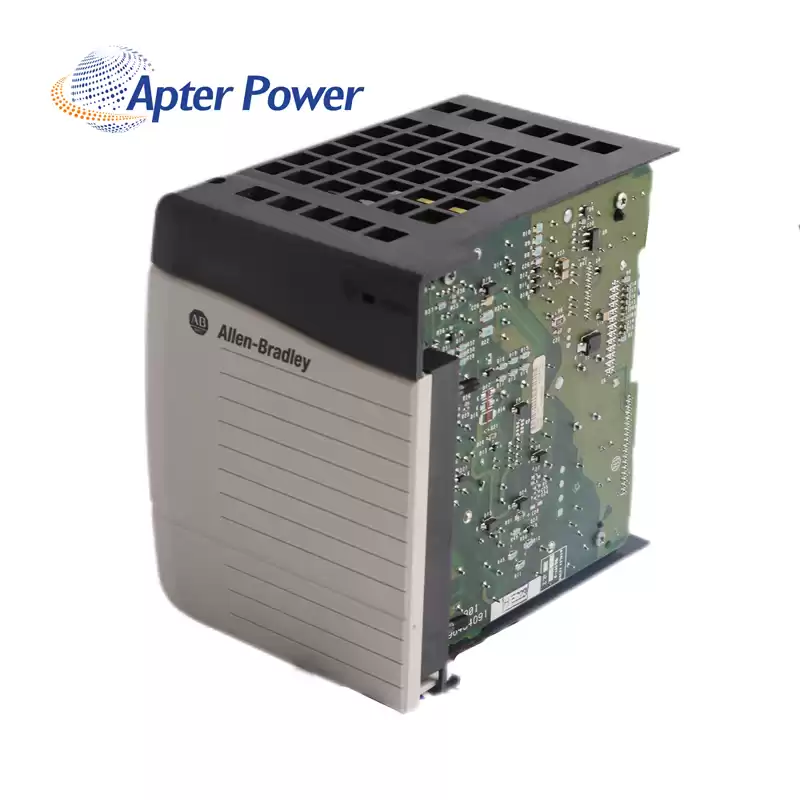

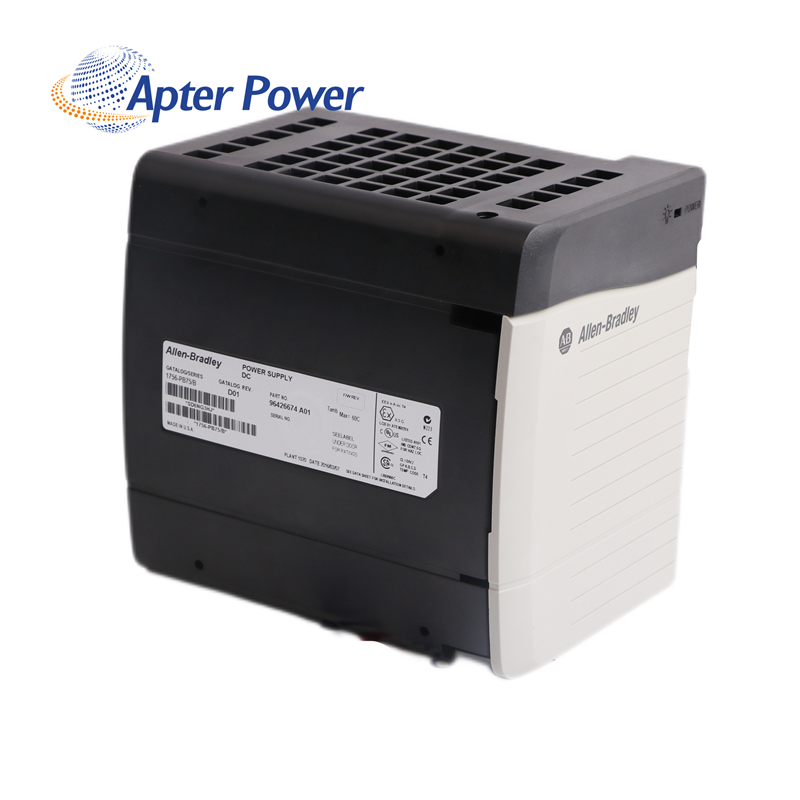

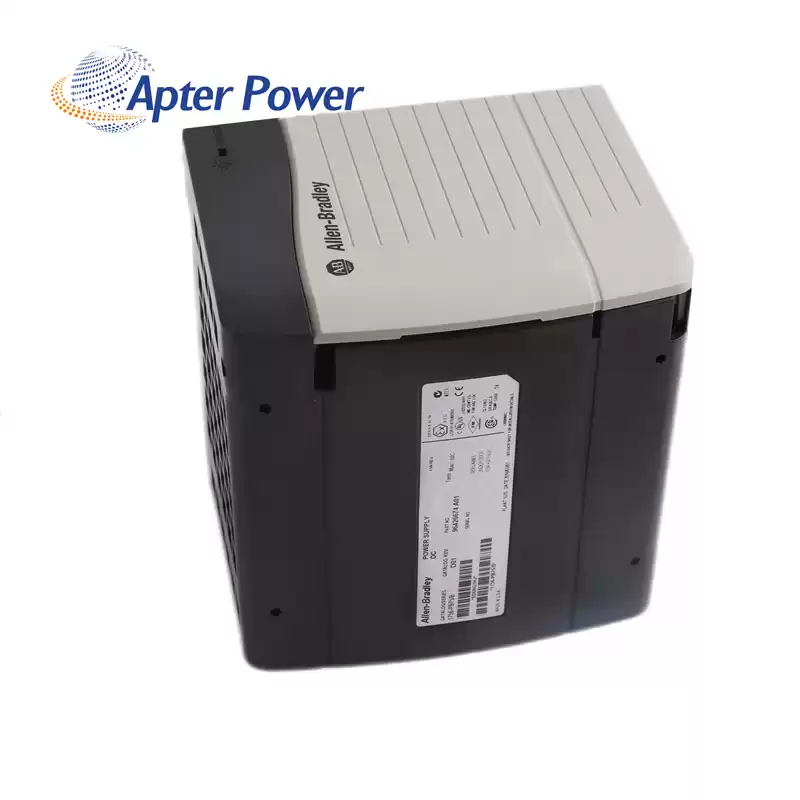

About 1756-PB75
|
The 1756-PB75 is externally powered by a nominal supply voltage of 24VDC with applicable voltage range of 18-32VDC. It has an input power rating of 95W and inrush current rating of 30A. It delivers an output power of 75 W @ 0…+60 °C (+32…+140 °F) and current capacities of 1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This power supply also features hold up time of 35 ms @ 18V DC; 40 ms @ 24V DC and 40 ms @ 32V DC with isolation voltage of 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s.
The 1756-PB75 has an input voltage range between 18 and 32V DC with 24V DC nominal and a power rating of 95W input power and 75W maximum output power at 0-60 °C. The module has a maximum surge current of 30A and a signal hold up time of 35ms at 18V DC, 40ms at 24V DC, and 40ms at 32V DC.The 1756-PB75 has an isolation voltage of 250V using a reinforced insulation type tested at 3500V DC for 60s between power input-to-backplane. Its circuitry uses 2.5 mm2 (14 AWG) stranded or solid copper wire with a 0.8 N-m (7 lb-in) conductor screw torque.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
