1756-SYNCH
|
|
Dimensions ：
|
28.3cmx18.2cmx5.2cm
|
Weight：
|
0.59KG
|
|
The 1756-SYNCH draws a current of 1200 mA at 5.1V DC and of 3 mA at 24V DC. It has 6.2 W Power dissipation and 21.2 BTU/hr. Thermal dissipation. It can be installed in any slot on a ControlLogix chassis with an open enclosure.

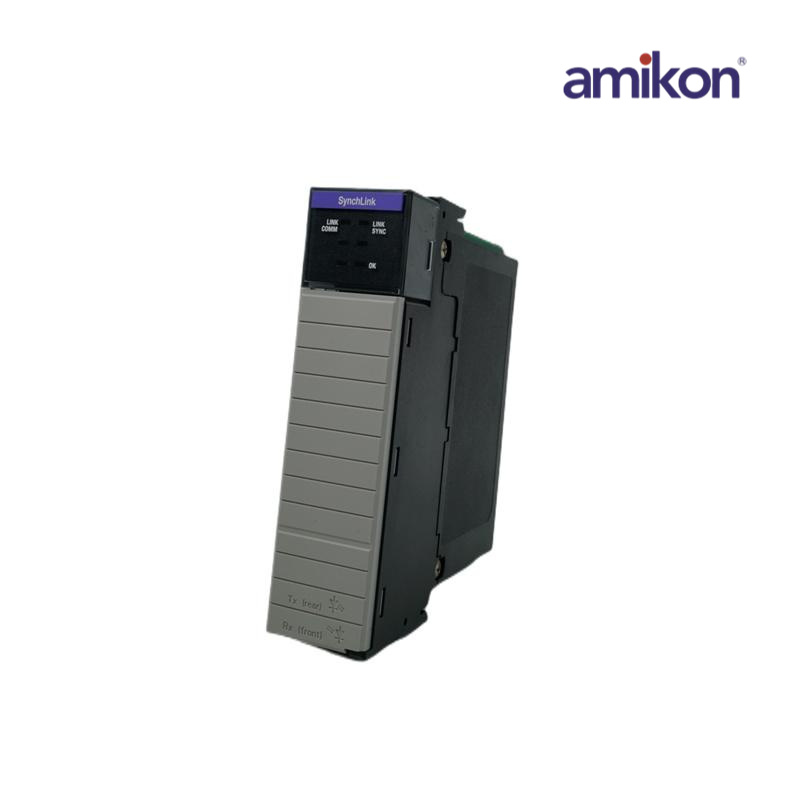

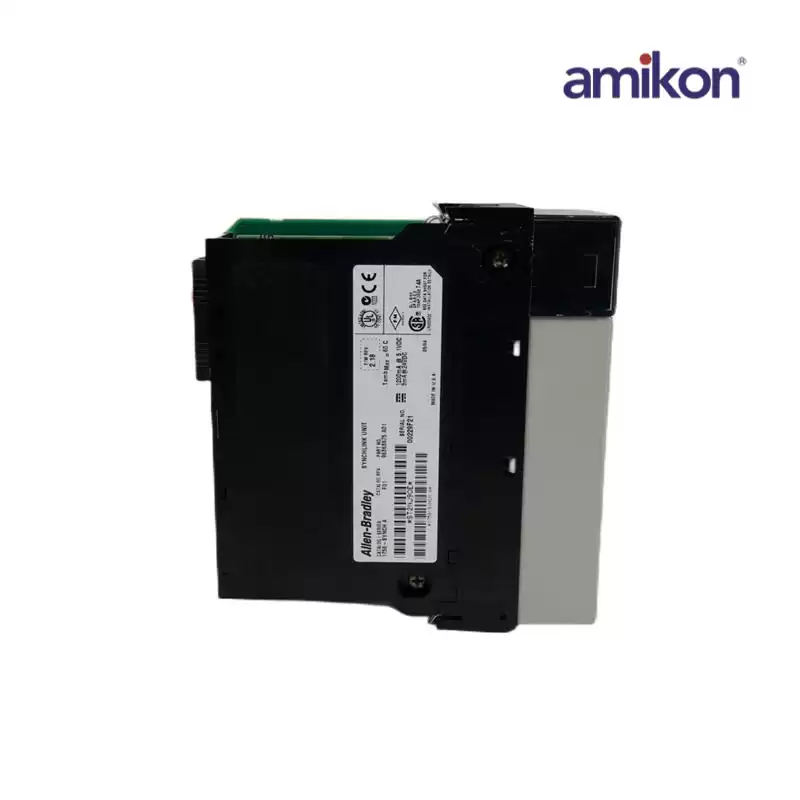

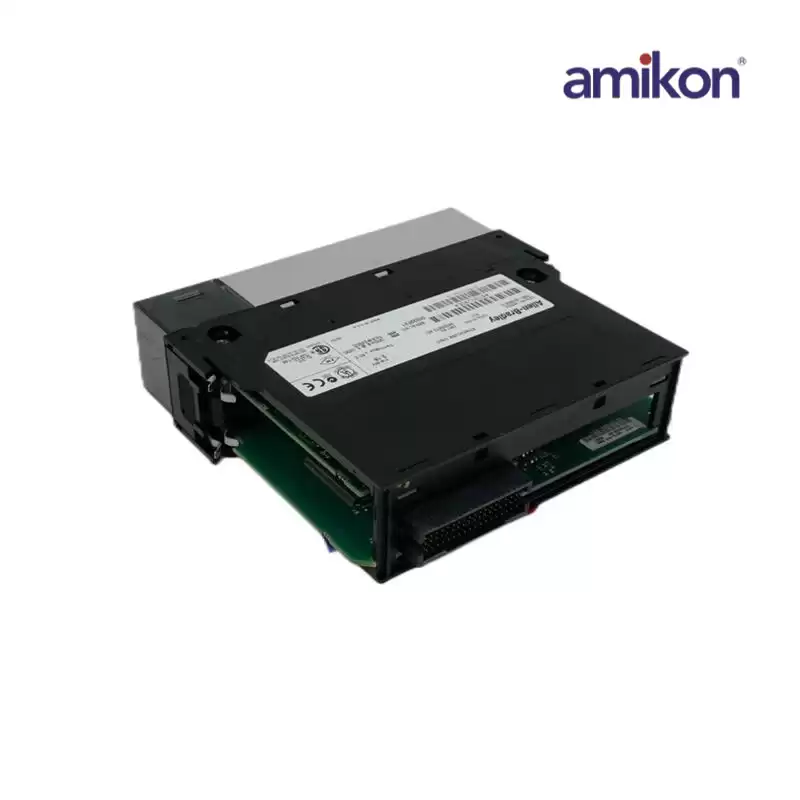

The 1756-SYNCH is a ControlLogix SynchLink Communication Module. It features data broadcasting and time synchronization for better-coordinated drive control and motion distribution. The 1756-SYNCH establishes communication between a ControlLogix chassis and a SynchLink fiber-optic cable.
|
|
