1756-TBE |
|||
|
Dimensions ： |
15.3cm3.7cmx12cm |
Weight： |
0.37KG |
|

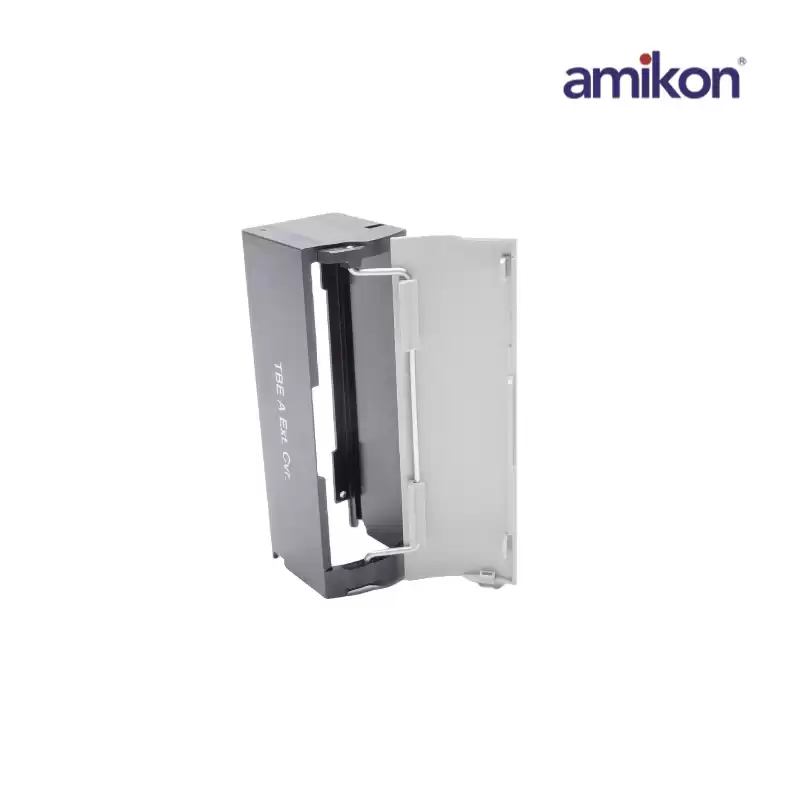

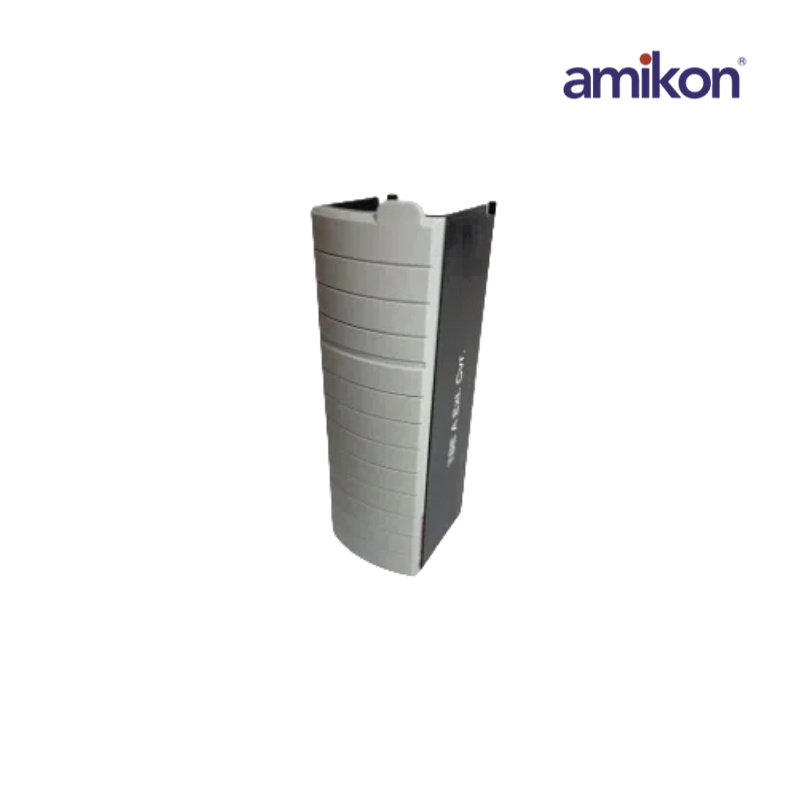

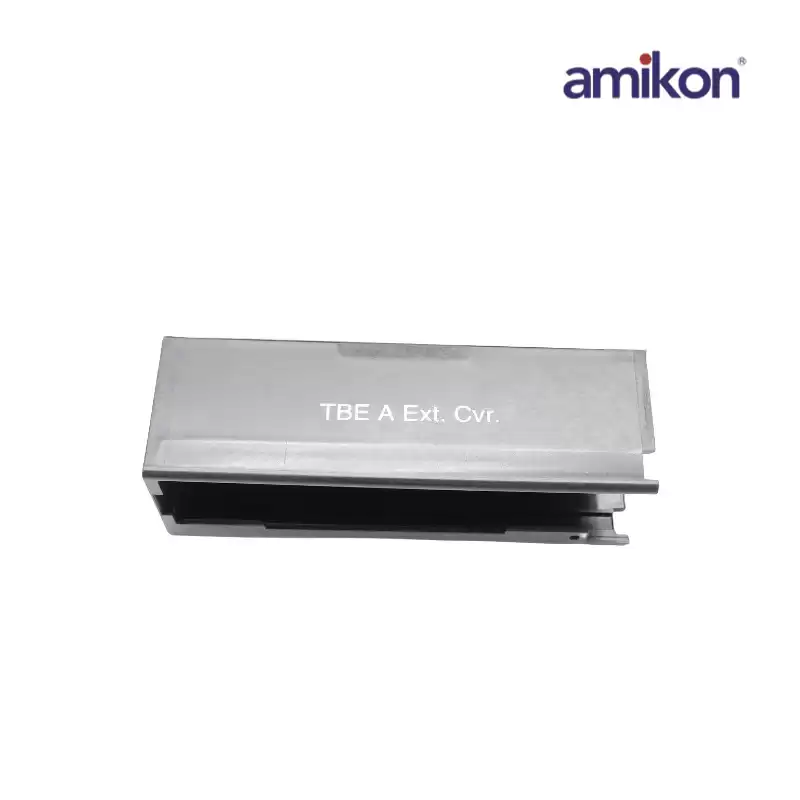

The 1756-TBE Extended-Depth Terminal Housing protects wiring connections by providing a cover to the wired RTB when it is seated on the module. This housing is recommended when working with wire measurements greater than 36-18AWG or 23-14AWG on the sequence of events module. It has a 157.43 mm (6.198 inches) depth from the module front to the back of the chassis.
The 1756-TBE is an Extended-Depth Housing used when additional wire routing space in an RTB is required for applications. It is ordered separately and is a component of the Bulletin 1756 Removable Terminal Block Series that uses heavy gauge wiring. The I/O terminal block and extended-depth housing combination allows up to 628 sq. mm wire capacity.
|
|||
