Technical Specifications for 1757-SRM
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane current
|
0.160 A at 24V DC
|
|
Part Number/Catalog No.
|
1757-SRM
|
Wavelength
|
1300 nm
|
|
Module Type
|
HART analog I/O module
|
Thermal dissipation
|
38.49 BTU/hr
|
|
Manufacture Year
|
2021
|
Connector
|
SC Type
|
|
Product Package
|
Original Package
|
UPC
|
10612598553845
|
About 1757-SRM
|

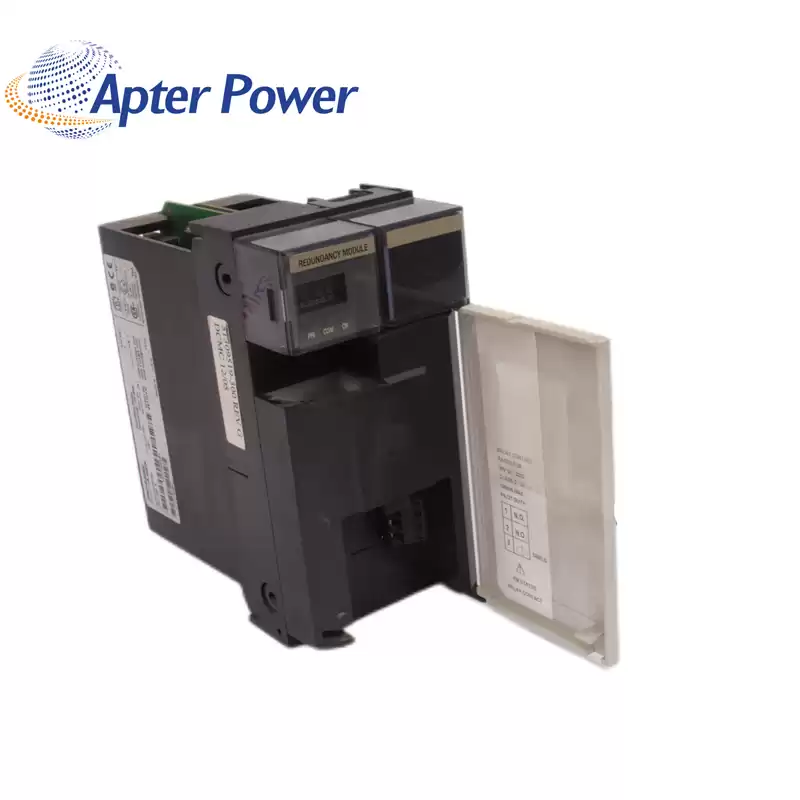

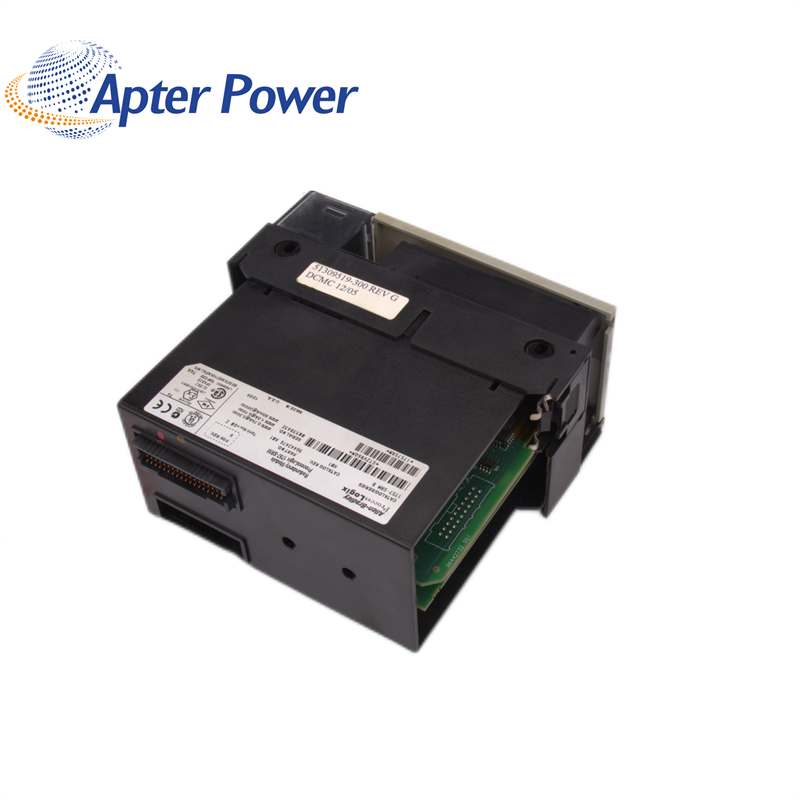

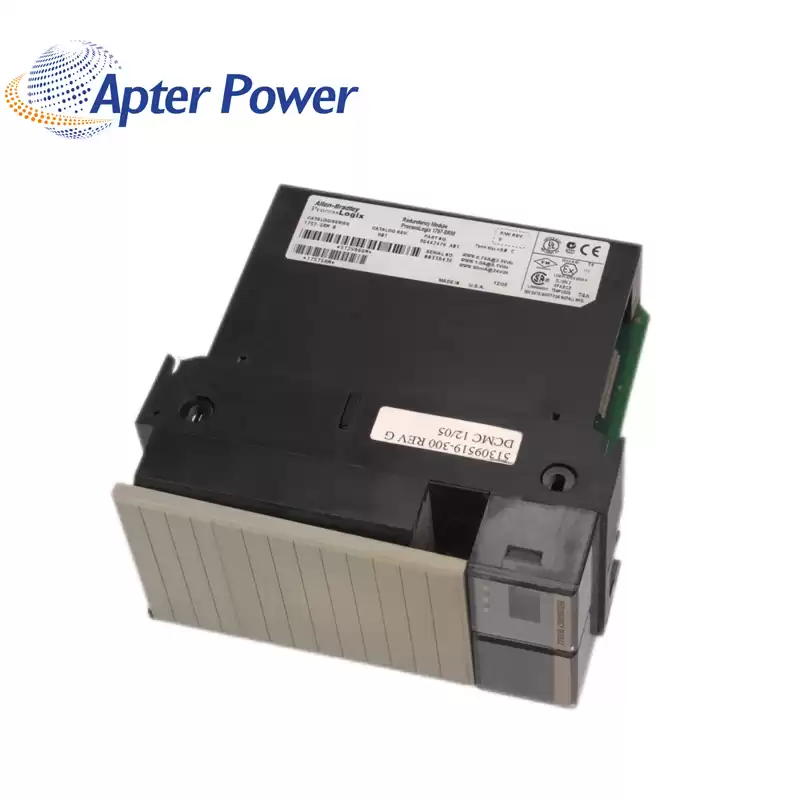

The 1757-SRM ProcessLogix and ControlLogix System Redundancy Module is a solid-state device that is employed in critical industrial applications that should not be stopped under any circumstances in order to provide a redundancy system by using an identical pair of PLCs to guarantee operation at all times.
The 1757-SRM redundancy module is designed for installation in any free slot of a ControlLogix chassis but predefining the order of the cards to install in each ControlLogix slot is recommended. Both PLC systems, called the primary and secondary PLC systems, should be identical for the redundancy system to work appropriately.
The 1757-SRM is a Two (2) slot module. It has module status display that indicates text codes that represent the module operational status. The PRI LED inform the user which of the chassis within the pair operates as the primary chassis. The COM LED represents the communication and synchronization status. The Health status LED indicates if the module is performing self-test, experienced critical failure or operating normally.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
