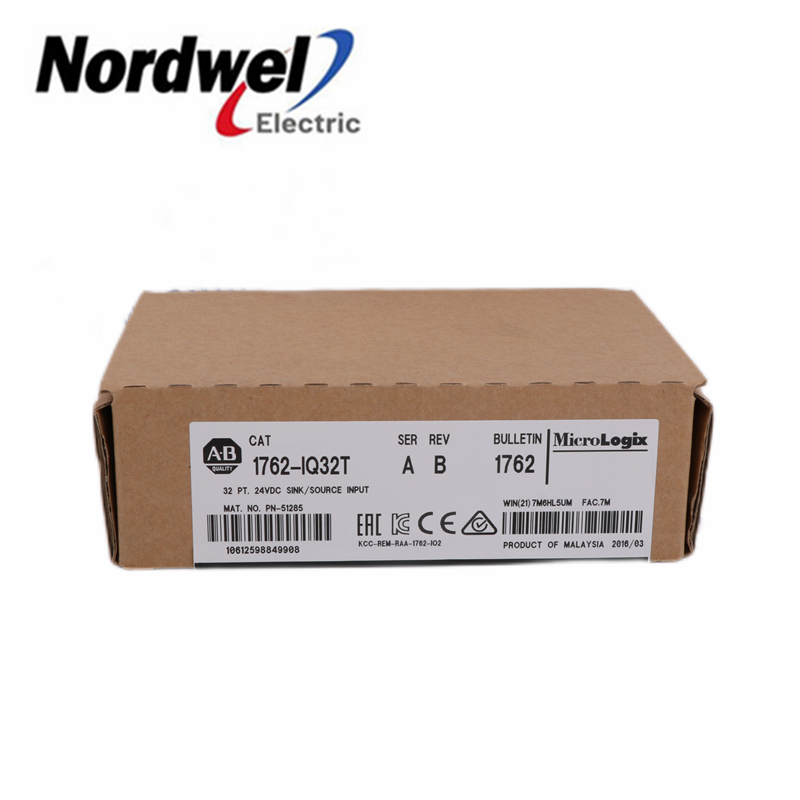

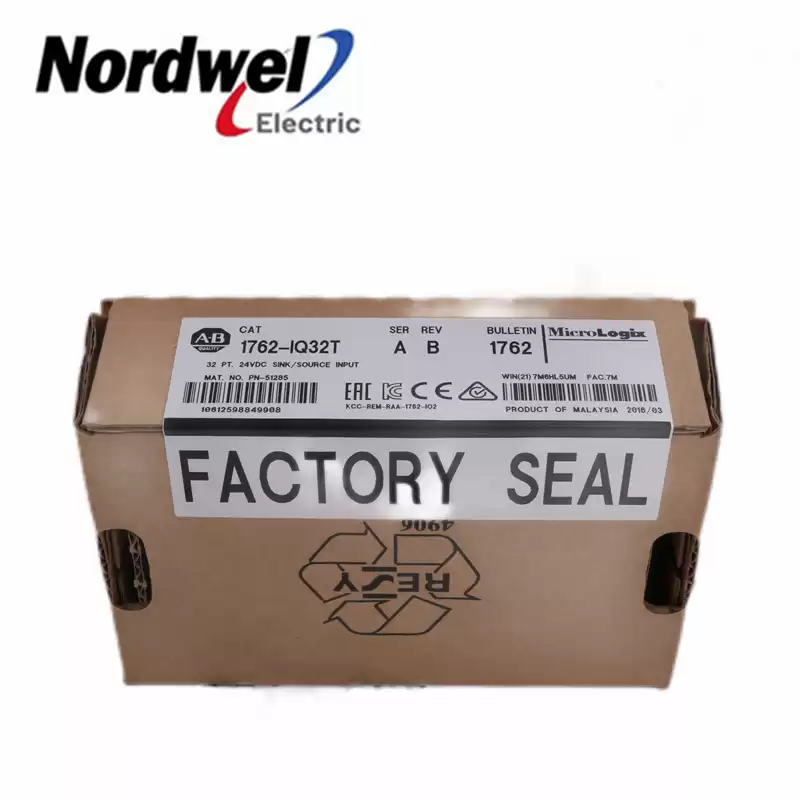

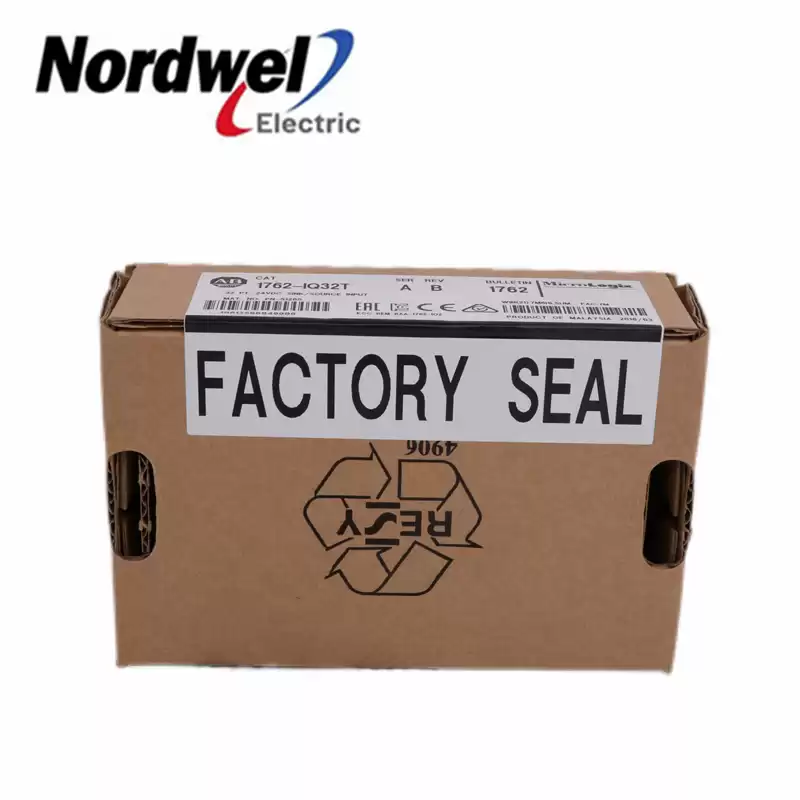

The 1762-IQ32T is an high-density discrete input module that is part of the MicroLogix
Programmable Logic Controller (PLC) platform. This module is compatible for use with MicroLogix1100,
1200 and 1400 controllers. It features Thirty-Two (32) input channels with group isolation. Specifically,
this module has Four (4) groups of Eight (8) channels each group.
The 1762-IQ32T supports sink and source wiring configuration. The input channels are designed to accept
an input voltage range of 10-30 VDC with nominal voltage level of 24VDC. Each channel has a minimum
ON-state voltage of 10VDC and maximum Off-state voltage of 5VDC. It has an OFF-state current of
1.0 mA, minimum On-state current of 1.6 mA @ 10V DC or 2 mA @ 15V DC and maximum On-state
current of 5.7 mA @ 26.4V DC and 6.5 mA @ 30.0V DC.
