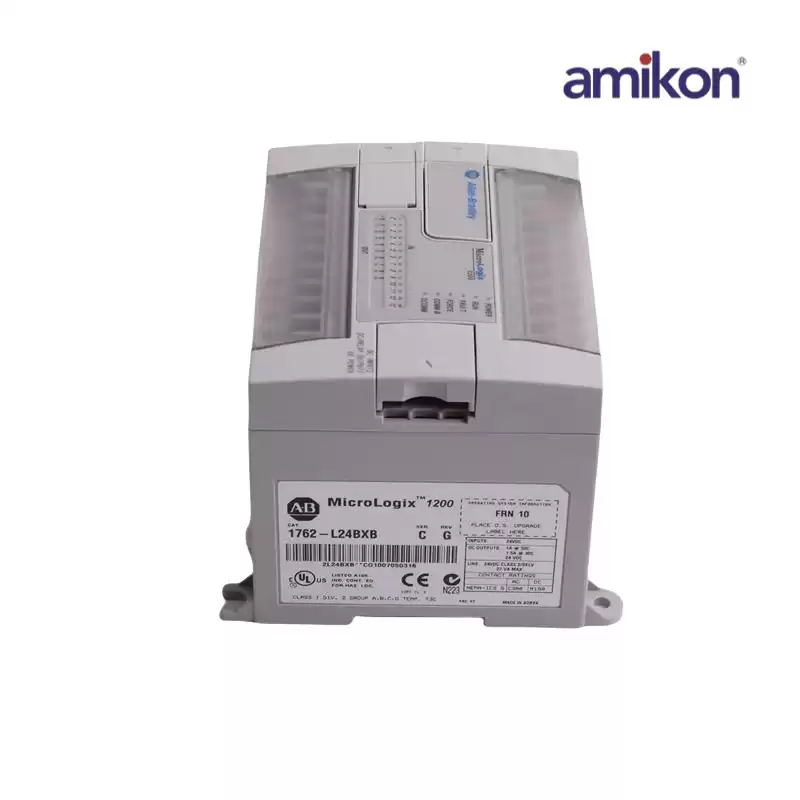

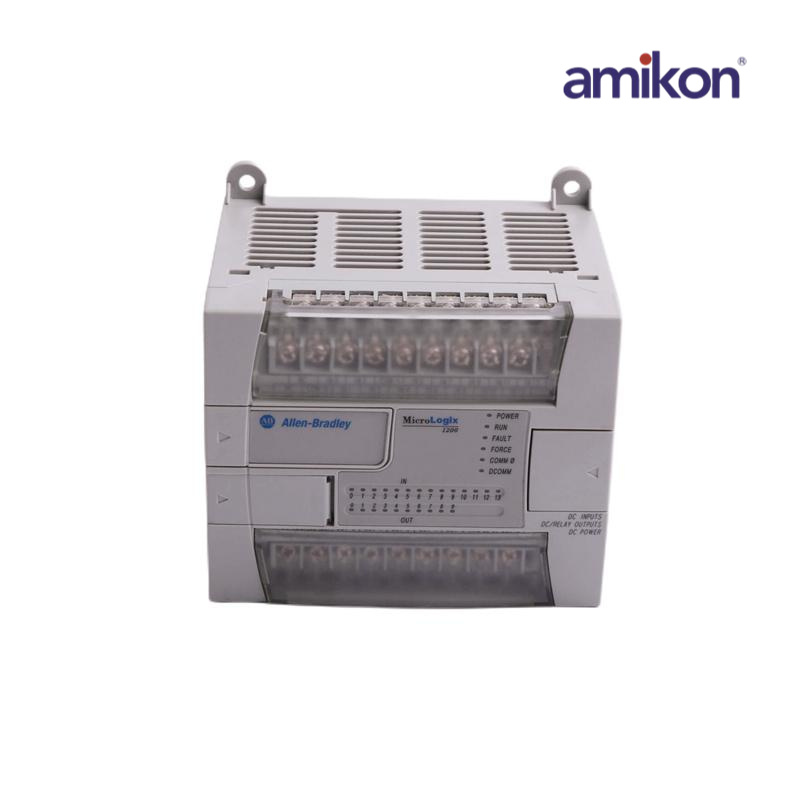

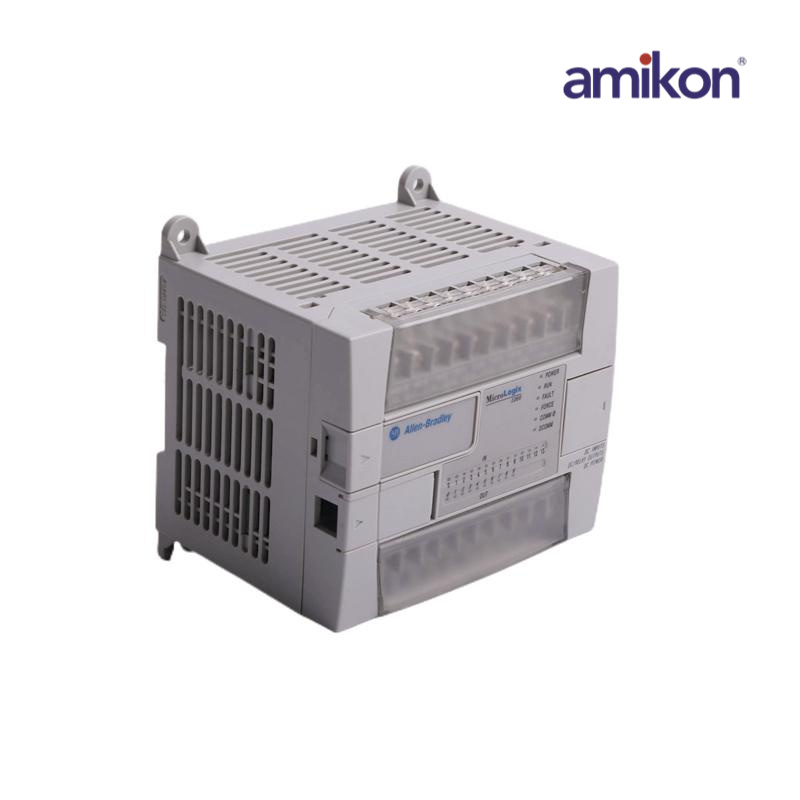

1762-L24BXB
|
|
Dimensions ：
|
12.7cmx8.5cmx11.2cm
|
Weight：
|
0.46KG
|
|
The 1762-L24BXB has different specifications than other controller modules. Its heat dissipation is 17 Watts and its power supply inrush current is 15 Amps for 20 milliseconds at 24 Volts DC. The power supply usage of the 1762-L24BXB is 27 Watts.
The 1762-L24BXB has a built-in power supply that operates with a nominal input supply voltage of 24VDC. It comes with a mini-DIN 8 pin circular RS232 connector that is installed on the controller’s front panel that may be used for most communication functions, specifically, programming, hardware configuration, online edits and communication with visualization systems such as Supervisory Control and Data Acquisition (SCADA) and human Machine Interface (HMI).
|
|
