Description
All MicroLogix 1500 programmablecontrollers provide several communicationoptions to fit into a variety of applications.The addition of a second full-functionRS-232 communications port enables twonumbercommunication devices to be connectedto the controller simultaneously The DFl Full-Duplex protocol allows theMicroLogix 1500 to communicate directlywith another device, such as a personalcomputer or an operator interface device.The DF1 Full-Duplex protocol (alsoreferred to as DFl point-to-pointprotocol) is useful where RS-232 point-to-point communication is required.
Features
One RS-232 port (available on all base units)
Additional RS-232 port (available when using catalog number1764-LRP)
300,600,1200,4800,9600,19,200,and 38,400 baud ratesRTS/CTS Hardware handshake signals
- channel 0 ®RTS/CTS/DCD Hardware handshake signals
- channel 1 Connection to DH485 and DeviceNet networks
respectively Connection to modems for remote communications ASCII messaging provides dial
-out capability
|

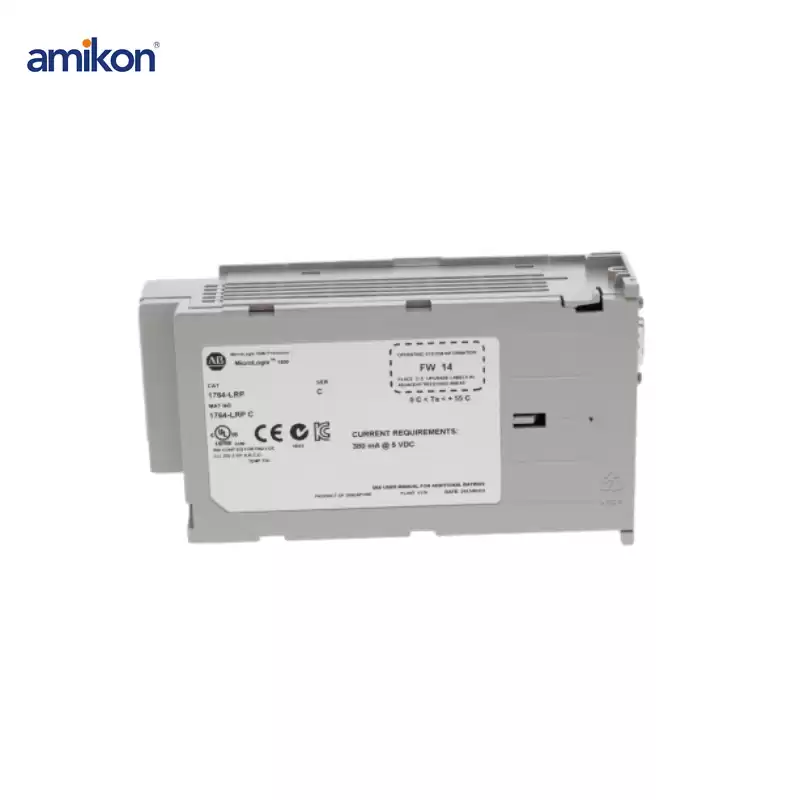

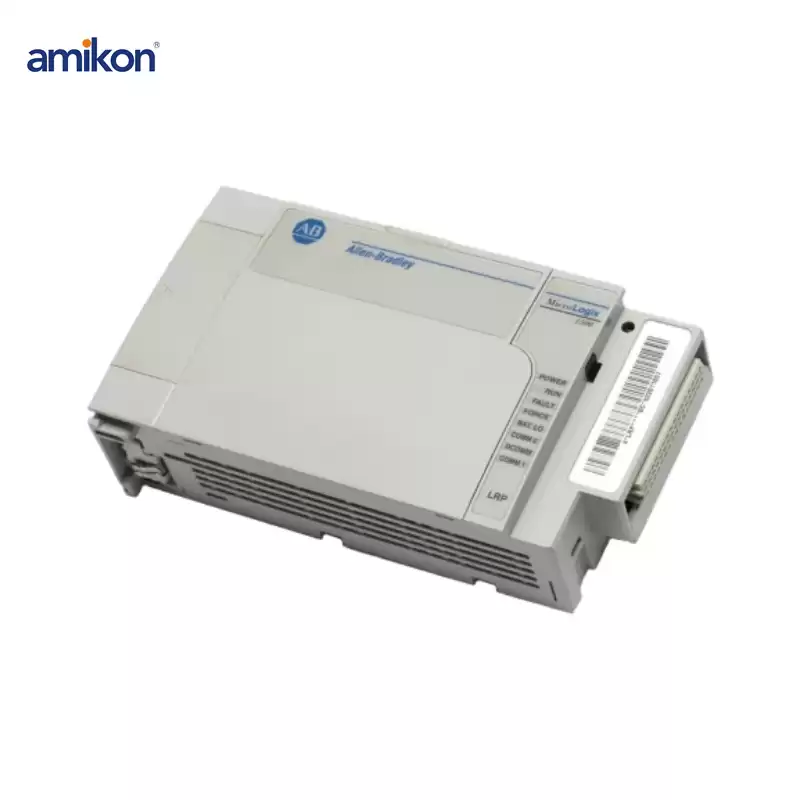

Model Number
|
1764-LRP
|
Product Origin:
|
USA
|
|
Dimensions
|
9.4x8.7x6.9cm
|
Lead Time
|
IN STOCK
|
|
Weight:
|
0.2 kg
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Shipping Port:
|
XIAMEN
|
Performance
• Sensorless Vector Control develops high torque over a wide speed range and adapts to individual motor characteristics.
• Variable P
WM allows the drive to output more current at low
frequencies.
• Integral PID functionality enhances application flexibility.
• Timer, Counter, Basic Logic and StepLogic™ functions can reduce hardware design costs and simplify control schemes.–Timer function: Relay or opto outputs controlled by drive performing timer function. Timer is initiated by activating a digital input programmed as “Timer Start.”
–Counter function: Relay or opto outputs controlled by drive performing counter function. Counter function is activated by a digital input programmed as “Counter Input.”
– Basic Logic: Relay or opto outputs controlled by status of digital inputs programmed as “Logic Inputs.” Performs basic Boolean logic.
– StepLogic: Logic-based steps using preset speed settings. Each step can be programmed for a specific speed, direction and accel/decel profile. Drive outputs can be used to indicate which step is being performed.
Our advantages
★Allen-Bradley
(1746,1747,1756,1762,1764,1769,1771,1785,1794,1797,2211,2711K/M/N/P,2711P,1746-IB16/32,1747-OB16/32,1746 L61/71CPU,A10/7/8,6180/1/6/9...
