1768-L43 | Controller Module | In Stock & Ready To Ship

New and original & Fast Deliyery & In Stock


  • Payment Term100% Advance Payment T/T Bank Wire Transfer
  • Warranty PeriodOne Year Warranty
  • Dimensions16x14x10.8cm
  • Weight0.5kg
  • Country of OriginUSA
  • Brand/Manufaturerother brand

1768-L43 | Controller Module |  In Stock & Ready To Ship

Overview


Condition: 100% New Original


Payment Terms: T/T


Minimum Order Quantity: 1pc


Weight: 0.5kg


Dimensions: 16x14x10.8cm

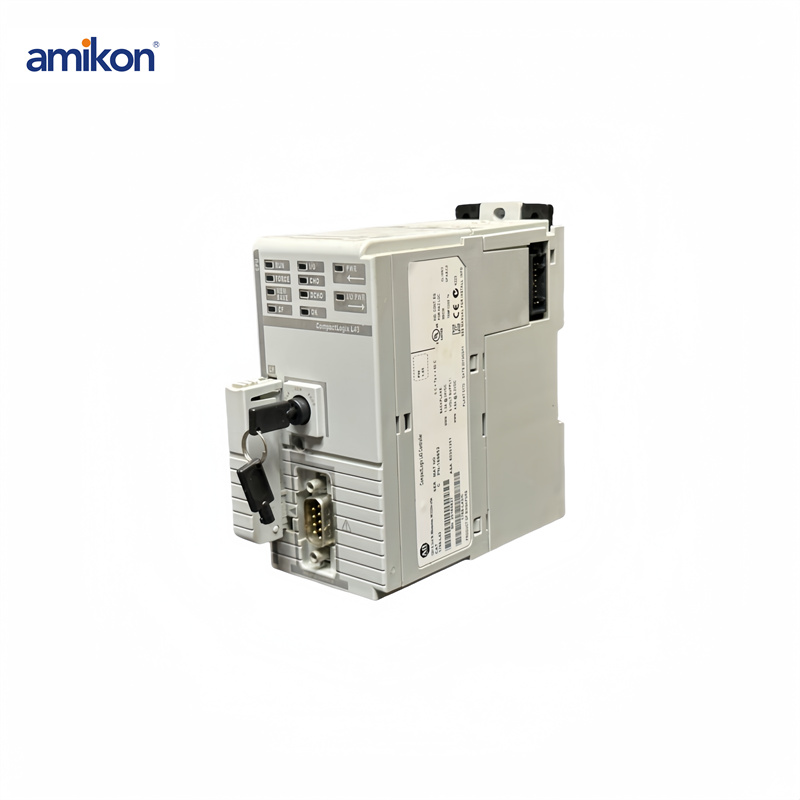

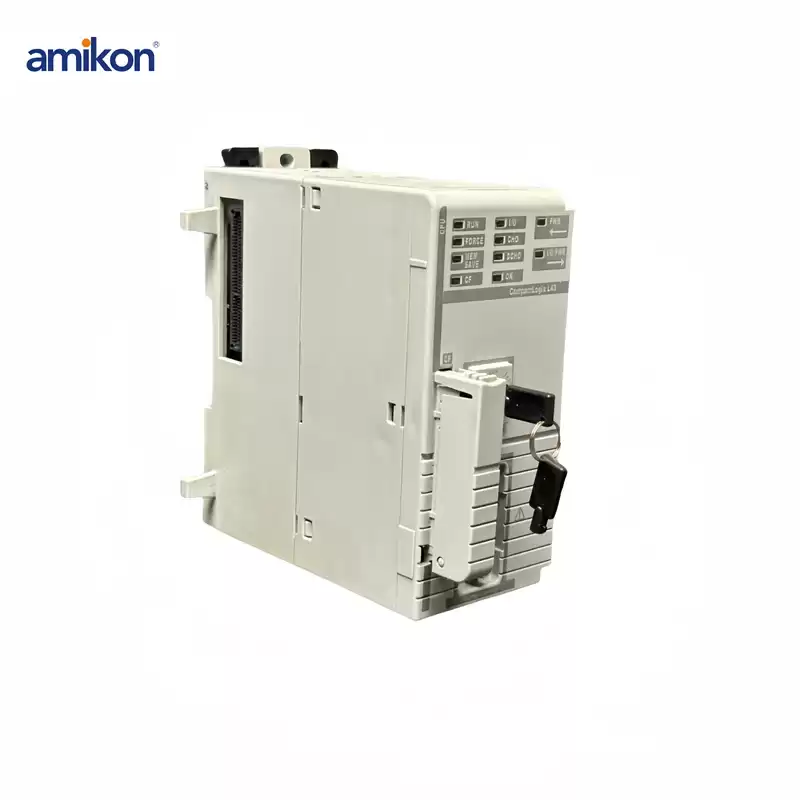

Product Description: 1768-L43  Controller Module

Integrated motion, select individual RPI for each module;

Controller tasks: 16 tasks (1 continuous task only)

Event tasks: Consume tags,

EVENT instructions, axis and motion event triggers;

User memory: 2 MB;

Built-in communication ports: 1 port RS-232  Serial (DF1 or ASCII);

Communication options: Ethernet/IP, ControlNet, DeviceNet;

Serial port communications: ASCII, DF1 full/half duplex, DF1 wireless modem, DH-485, Modbus via logic.

The CompactLogix L43 controller controls up to 4 axes of motion in material handling, packaging, metal forming and other applications that require speed, motion synchronization and information sharing.

The 1768-L43 controller combines the benefits of SERCOS interface and Ethernet/IP with a powerful, cost-effective processor.

It also supports DeviceNet and ControlNet, enabling seamless information flow from the smallest device to enterprise systems. Small size, modularity.



Our advantages


★Allen-Bradley

(1746,1747,1756,1762,1764,1769,1771,1785,1794,1797,2211,2711K/M/N/P,2711P,1746-IB16/32,1747-OB16/32,1746 L61/71CPU,A10/7/8,6180/1/6/9...
