1768-L45/AB Memory Module

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1768-L45

The 1768-L45 Compact Logix controller by Allen-Bradley offers solutions for control applications with motion, I/O, and network demands. It has 4 available slots for module support and can support four 1768 backplane modules. It supports a 1768 backplane current of 2.0 Amps at 24 Volts, and a 1769 backplane output current of 2.0 Amps at 5.7 Volts. The 1768-L45 also provides a 1768 backplane output current of 5.6 Amps at 5 Volts, and in total it provides 1768 and 1769 backplane current of 7.6 Amps at 5.2 Volts. It dissipates 9.5W along it circuit and a power consumption of 50.4W.

The 1768-L45 can support a maximum of thirty 1769 I/O modules which can reside in 3 local I/O module banks. It has an isolation voltage of 30 Volts with the isolation type tested at 500 Volts AC for 60 seconds. The 1768-L45 is certified at the T4 (135 degrees Celsius) temperature code. For mounting, M4 or #8 screws must be used. It has dimensions of 131.6 x 67.4 x 121.8 millimeters (5.18 x 2.65 x 4.80 inches) and weighs approximately 0.34 kilograms (11.9 ounces). The 1768-L45 has an operating temperature range between 0 and 60 degrees Celsius (32 and 140 degrees Fahrenheit) at a 5 to 95% non-condensing relative humidity. It has an operational shock rate of 30G and one of up to 50G in non-operational mode, with a maximum vibration of 5G at 10 to 500 Hertz. It has a CISPR 11:  Group 1, Class A, emission standard for an industrial environment. It is cUL-us tested and certified to meet standard requirements in the US and Canada.

Attempting to use controllers with incompatible software and firmware revisions can result in the following: • An inability to connect to the controller • Unsuccessful firmware upgrades in ControlFLASH™ or AutoFlash utilities

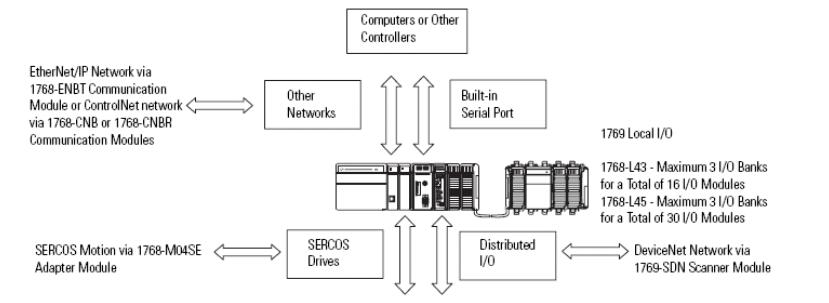

When designing a CompactLogix system, determine the network configuration and the placement of components in each location. You need to do the following: • Select I/O devices for your DIN-rail or panel-mounted system. • Establish motion control and drives requirements. • Select communication modules. • Select controllers. • Select power supplies. • Mount the system. • Select software.

You need these parts when installing your controller: • 1768-L43 or 1768-L45CompactLogix controller • 1768-PA3 or 1768-PB3 power supply • 1769-ECR end cap • Mounting screws (M4 or #8 panhead) or one of these EN 50 022 DIN rails: – 35 x 7.5 mm (1.38 x 0.30 in.) – 35 x 15 mm (1.38 x 0.59 in.) • 1756-CP3 serial cable (or make your own)

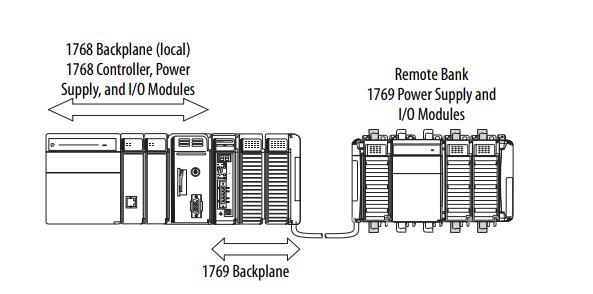

CompactLogix System Distance Ratings Because the 1768 CompactLogix power supply works with the controller to power a 1768 system, the distance rating in a 1768 CompactLogix system differs from that in a 1769 CompactLogix system. In the 1768 system, the distance rating is the distance between 1769 I/O modules and the controller. In the 1769 system, the distance rating is the distance between 1769 I/O modules and the power supply.
