1769-BOOLEAN/AB IN STOCK& READY FOR SHIP

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1769-BOOLEAN

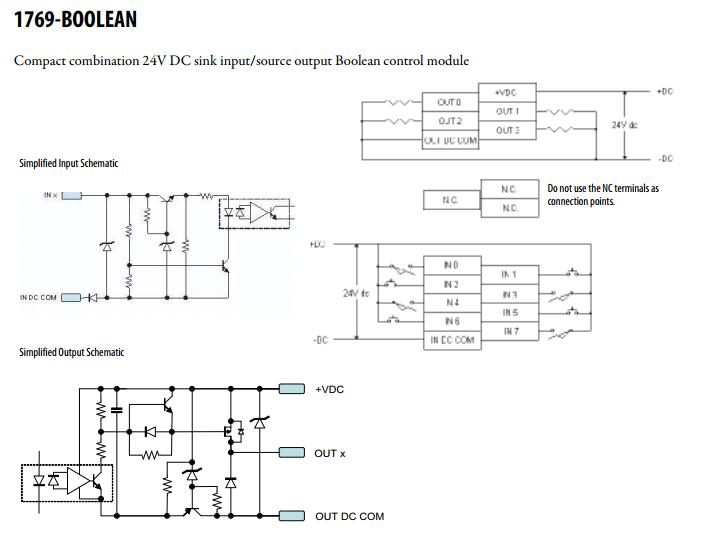

The Allen-Bradley 1769-BOOLEAN comes with an LED display and an open-type enclosure. It measures 3.34 inches in depth, 4.65 inches in height and 1.38 inches in width, and it weighs approximately 0.625 lb. It has a 10-30V DC input signal and a 20.4 - 26.4V DC output signal. It features a closed loop time of 1 microsecond and it can mount on a DIN-rail or panel mount. The 1769-BOOLEAN module is a combination of 24V DC input/output.  Its outputs can be controlled using Boolean expressions or controlled directly from the program. When the expression is TRUE, it signifies output as ON state. And when it is FALSE, the output channel is at OFF state. The module's Boolean expression has 4 operations to configure, OR, AND, XOR, or NONE.

The 1769-BOOLEAN module comes with eight single-ended 24V DC inputs and four single-ended 24V DC sourcing outputs. The sourcing describes how the current flows in I/O and the field device. It has a 220-mA max current draw at 5.1V and a draw of 0 mA at 24V. Its heat dissipation reaches 3.55 W at most. The 1769-BOOLEAN’s isolation voltage is 75V DC and it is rated to withstand 1200V AC for 1 s or 1697V DC for 1 s in dielectric tests. Its isolation voltage is IEC verified class 2 reinforced insulation type.

The 1769-BOOLEAN comes with 8 virtual and real inputs and 24V AC sinking voltage. The module has an operating voltage range 10-30 V DC at 30 °C and 10-26V DC at 60 °C. It has 10 μs OFF-ON and ON-OFF input delay and an input impedance which is 2.0 kΩ at 24V DC and 2.3 kΩ at 30V DC.

Each 1769 I/O module has a distance rating. In 1769 systems, the distance rating is the number of modules between the specific module and the 1769 power supply. In a 1768 system, the distance rating is the number of modules between the specific I/O module and the 1768 controller.

Digital I/O Modules Choose digital I/O modules when you need these features.

Most output modules have built-in surge suppression to reduce the effects of high-voltage transients. Use an additional suppression device if an output is being used to control inductive devices, such as relays, motor starters, solenoids, or motors.

Additional suppression is especially important if your inductive device is in series with or parallel to hard contacts, such as push buttons or selector switches. Add a suppression device directly across the coil of an inductive device. The suppression device reduces the effects of voltage transients that are caused by interrupting the current to that device and to prolong the life of the switch contacts.

Analog I/O Modules Choose analog, thermocouple, or RTD modules for these features:

 • Individually configurable channels

 • Ability to enable and disable channels individually

 • Onboard scaling • Auto calibration of inputs

• Online configuration

 • Selectable input filters

• Over-range and under-range detection and indication

• Selectable response to a broken input sensor

• Selectable power source

• Input modules offer both single-ended or differential inputs

 • Ability to direct output device operation during an abnormal condition

• High accuracy ratings The data can be configured on board each module as:

 • Engineering Units in volts or milliamps.

 • Scaled-for-PID.

 • Percent of range.

 • Raw/Proportional Data for maximum resolution.

Related products

1756-LSP
1756-M02AE
1756-M02AS
1756-M03SE
1756-M08SE
1756-M08SEG
1756-M16SE
1756-OA8D
1756-OA8E
1756-OB16IEFS
1756-OB16IS
1756-OF4
1756-OF6CI
1756-OF6VI
1756-OF8
1756-OF8H
1756-PA72
1756-PA75
1756-PA75R
1756-PAR2
1756-PAXT
1756-PB72
1756-PB75
1756-PB75R
1756-PBR2
1756-PBXT
1756-PC75
1756-PH75

6ES7413-1XG01-0AB0  SIMATIC S7-400, CPU 413-1
6ES7413-2XG01-0AB0  CPU413-2DP, MPI/DP, 72KB
6ES7413-1XG02-0AB0  SIMATIC S7-400, CPU 413-1
6ES7413-2XG02-0AB0  CPU413-2DP, MPI/DP, 72KB
6ES7413-1XG00-0AB0  CPU413-1, MPI, 72KB
6ES7413-2XG00-0AB0  CPU413-2DP, MPI/DP, 72KB

ABB

CP1-10R-11
CP1-10G-11
CL2-502G
CL2-502Y
CL2-502R
CE4T-10R-11
CL2-523G
CE4T-10R-02
N44E 220-230V50HZ
N40E-220-230V50HZ
CA5-10
CA5-01
CAL5-11
CAL18-11
A9-40-00 220V-230V50Hz
A9-30-10*220-230V 50HZ/230-240V 60HZ
AF65-30-00-13 100-250V50/60HZ-DC
AF145-30-11*100-250V AC/DC
AF185-30-11*100-250V AC/DC
AF260-30-11*100-250V AC/DC
AF265-30-11-13 100-250V50/60HZ-DC
AF300-30-11*100-250V AC/DC
AF370-30-11-13 100-250V50/60HZ-DC
AF400-30-11*100-250V AC/DC
AF 460-30-11*100-250V AC/DC
AF580-30-11*100-250V AC/DC
AF750-30-11*100-250V AC/DC
AF1250-30-11*100-250V AC/DC
GAF 185-10-11**100-250V AC/DC
GAF460-10-11*100-250V AC/DC
GAF750-10-11*100-250V AC/DC
GAF 1250-10-11*100-250V AC/DC
A9-30-10*110V 50Hz/110-120V 60Hz
A9-30-10*220-230V 50Hz/230-240V 60Hz
A12-30-10*110V 50Hz/110-120V 60Hz
A12-30-10*220-230V 50Hz/230-240V 60Hz
A16-30-10*110V 50Hz/110-120V 60Hz
A16-30-10*220-230V 50Hz/230-240V 60Hz
A26-30-10*110V 50Hz/110-120V 60Hz
1756-PLS
1756-RIO
1756-RM
1756-RM2
1756-RM2XT
1756-RMXT
1756-SYNCH
1757-FFLD2
1757-FFLD4
1757-FFLDC2
1757-FFLDC4
1757-FIM
1757-PE1400RED2
1757-PE1600RED1
1757-PE1600RED2
1757-PE1800RED1
1757-PE1800RED2
1757-PIM
1757-PLX52
1757-PLXC
1757-PLXCGX200
1757-PLXCPE1400
1757-PLXCPE1600
1757-PLXCPE1800
1757-SRC100
1758-FLO301
1758-FLO302
1758-RTU201
1758-RTU202
1768-CNBR
1768-ENBT
1768-EWEB
1768-L43
1768-L43S
1768-L45
1768-L45S
1769-IF16C
1769-IF16V
1769-IR6

Our Advantages:

If you have any question pls do not hesitate to contact us.We can supply all kind of the automation parts,if you want to purchase parts pls send the parts model to my mail, I will prompt reply you as I receive the mail.Hope anyone inquire from us.    Waiting for your inquiry.
