Technical Specifications for 1769-BOOLEAN
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Power Dissipation
|
7.5 Watts
|
|
Part Number/Catalog No.
|
1769-BOOLEAN
|
Isolation Voltage
|
30 Volts
|
|
Module Type
|
Boolean Control Module
|
Power Consumption
|
33.6 Watts
|
|
Manufacture Year
|
2021
|
Backplane Current
|
1.4 Amps
|
|
Product Package
|
Original Package
|
UPC
|
10611320130888
|

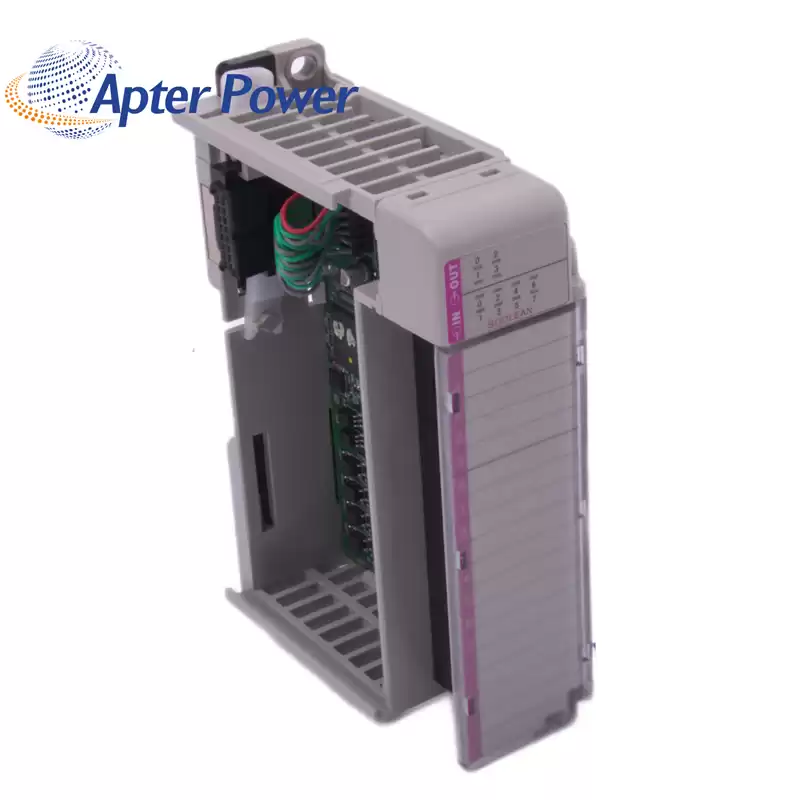

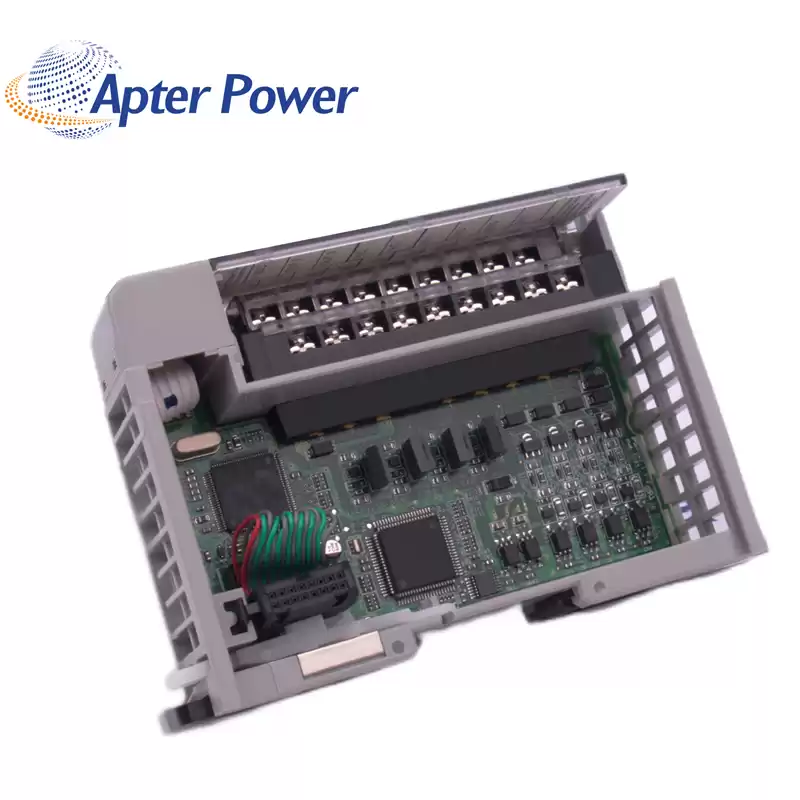

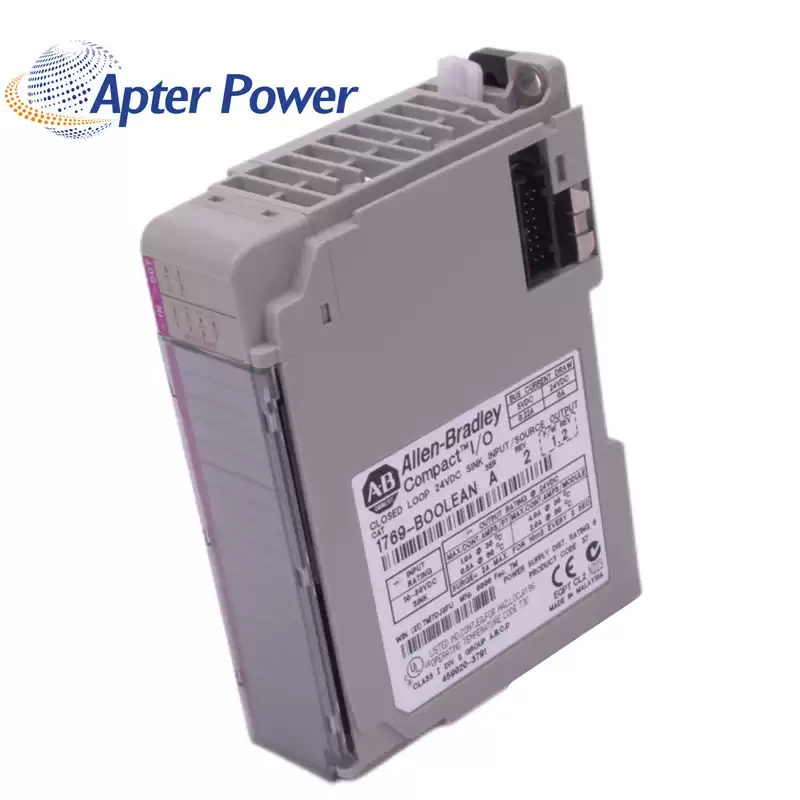

About 1769-BOOLEAN
|
The 1769-BOOLEAN module comes with eight single-ended 24V DC inputs and four single-ended 24V DC sourcing outputs. The sourcing describes how the current flows in I/O and the field device. It has a 220-mA max current draw at 5.1V and a draw of 0 mA at 24V. Its heat dissipation reaches 3.55 W at most. The 1769-BOOLEAN’s isolation voltage is 75V DC and it is rated to withstand 1200V AC for 1 s or 1697V DC for 1 s in dielectric tests. Its isolation voltage is IEC verified class 2 reinforced insulation type.
The 1769-BOOLEAN module is a combination of 24V DC input/output. Its outputs can be controlled using Boolean expressions or controlled directly from the program. When the expression is TRUE, it signifies output as ON state. And when it is FALSE, the output channel is at OFF state. The module's Boolean expression has 4 operations to configure, OR, AND, XOR, or NONE.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
