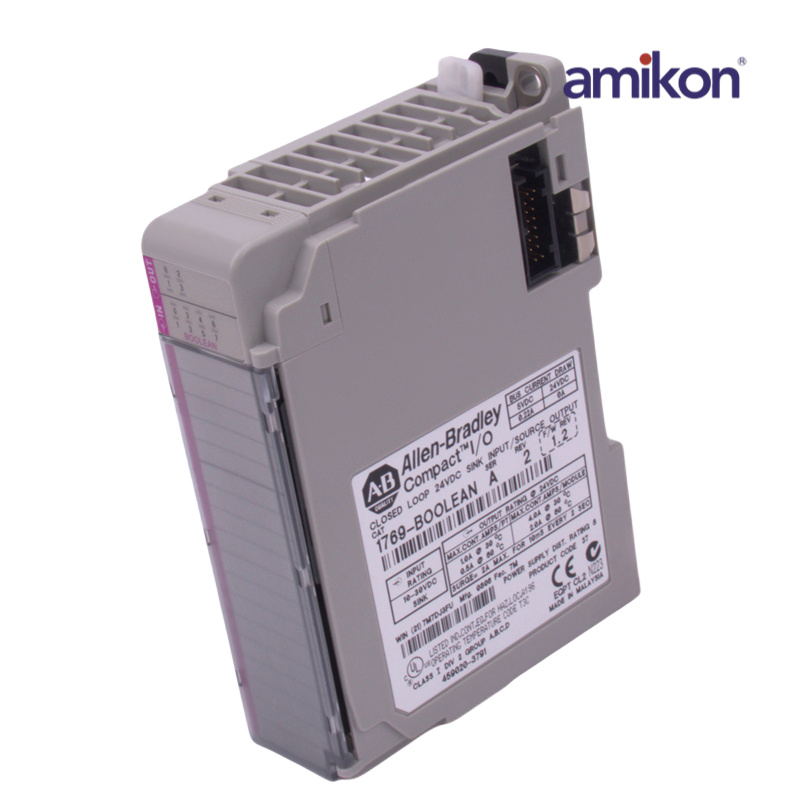

1769-BOOLEAN Compact I/O Boolean Control Module


  • Brand/Manufature
  • Product OriginUSA
  • Lead TimeIn Stock
  • ConditionBrand New
  • CertificateCoo/Test report/Warranty letter

1769-BOOLEAN

Dimensions :

11.6cmx8cmx3.4cm

Weight:

0.2KG

The 1769-BOOLEAN module comes with eight single-ended 24V DC inputs and four single-ended 24V DC sourcing outputs. The sourcing describes how the current flows in I/O and the field device. It has a 220-mA max current draw at 5.1V and a draw of 0 mA at 24V. Its heat dissipation reaches 3.55 W at most. The 1769-BOOLEAN’s isolation voltage is 75V DC and it is rated to withstand 1200V AC for 1 s or 1697V DC for 1 s in dielectric tests. Its isolation voltage is IEC verified class 2 reinforced insulation type.



The 1769-BOOLEAN module is a combination of 24V DC input/output.  Its outputs can be controlled using Boolean expressions or controlled directly from the program. When the expression is TRUE, it signifies output as ON state. And when it is FALSE, the output channel is at OFF state. The module's Boolean expression has 4 operations to configure, OR, AND, XOR, or NONE.
