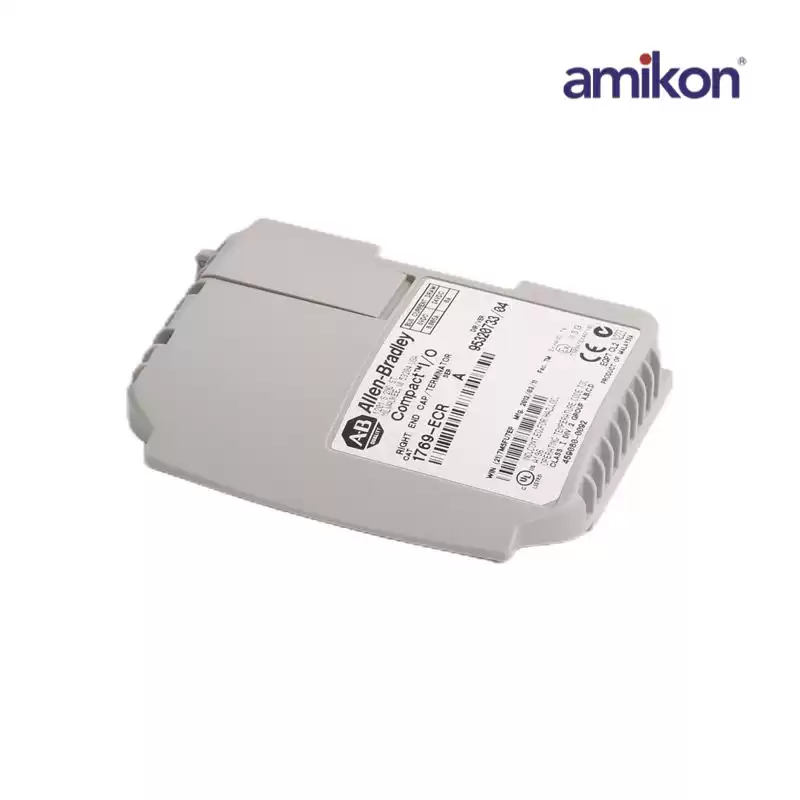

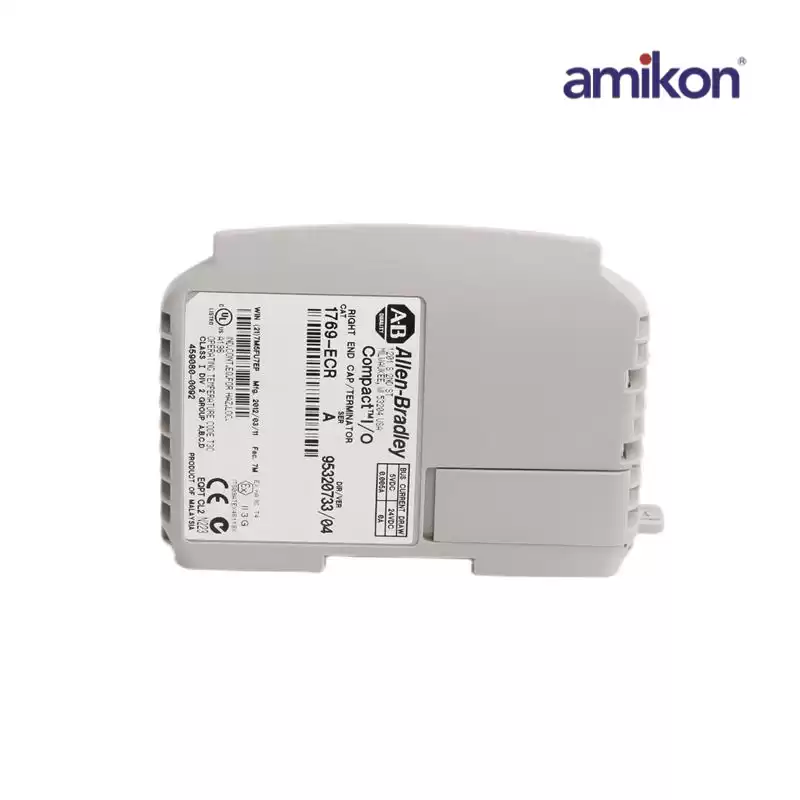

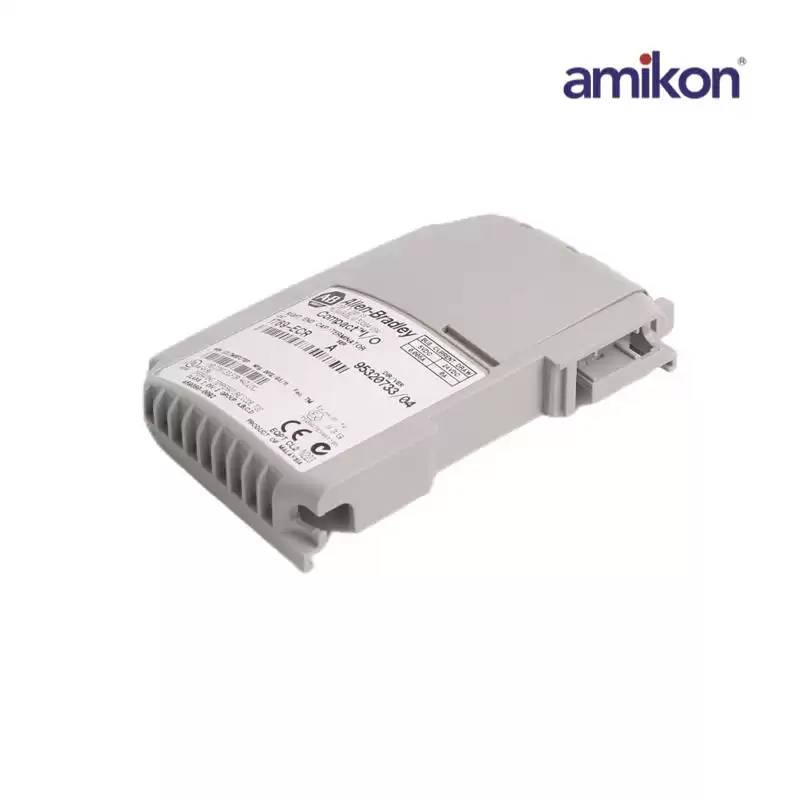

1769-ECR CompactLogix Right End Cap/Terminator
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension:4.5cmx16.6cmx27.5cm
|
Weight:1.2KG
|
|
This module is installed at the right sight of the last module of a CompactLogix assembly. It has a current draw of 5 mA at 5.1 VDC, weighs 130 g (0.286 lb) with open style enclosure
|
|
The 1769-ECR is a right end cap or terminator that terminates the end of the communication bus of a 1769 controller. It has a maximum bus current draw of 5 mA at 5V DC. It comes with an operating altitude of 6562 feet and an approximate shipping weight of 0.286 lbs
The 1769-ECR must only be installed or removed when power is removed from the system. Removal or insertion under power will cause controller error and stoppage which is not desirable especially with a functional and actively operating system.
|
