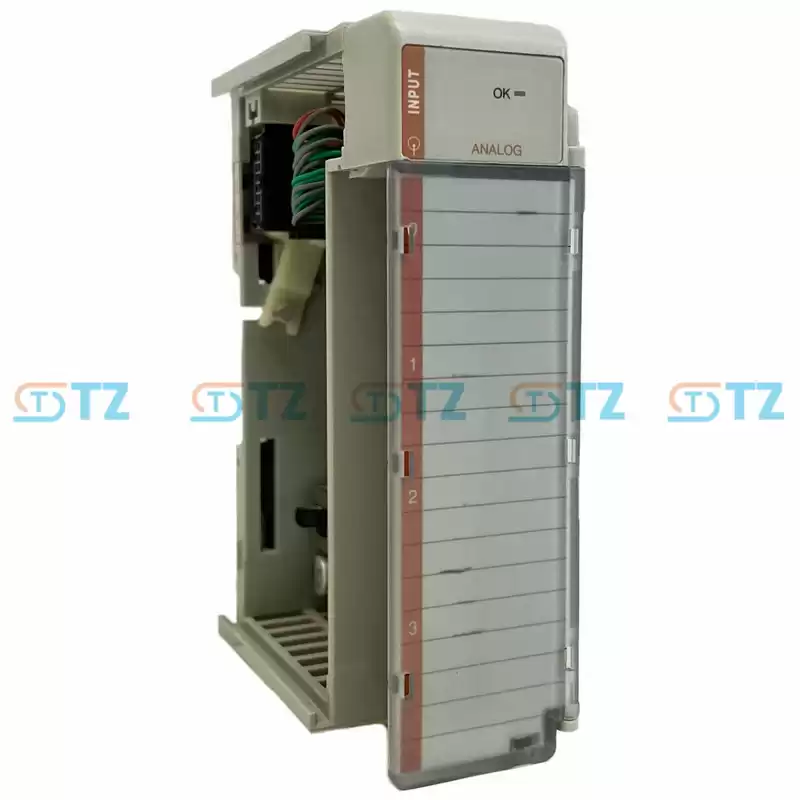

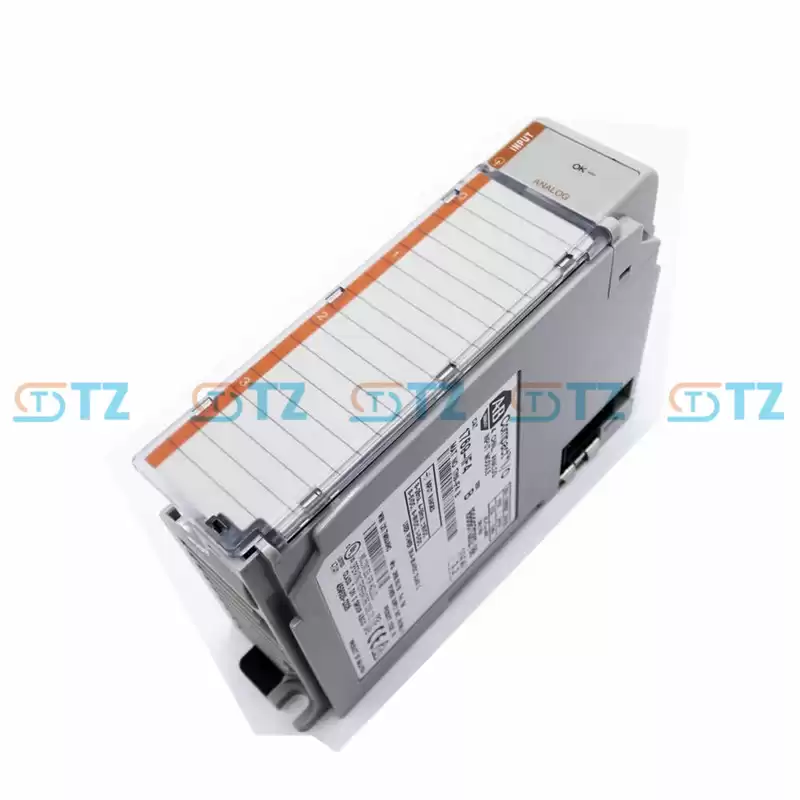

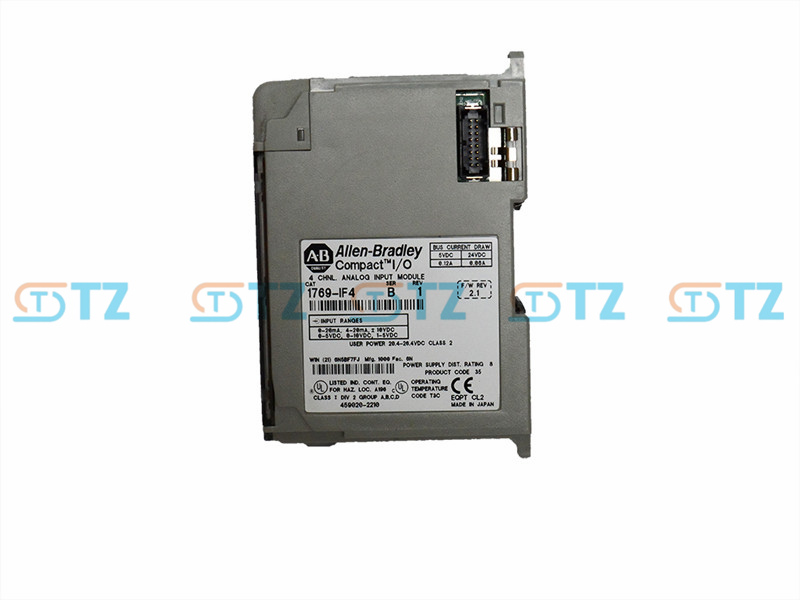

1769-IF4 Allen Bradley Rockwell CompactLogix 4 Channel Analog Current/Voltage Input Module

1769-IF4 is an analog input module from Allen-Bradley's CompactLogix product line.

HS CODE : 8538909200



It has four differential or single-ended channels that can be used to convert and digitally store analog data.  The module may auto-calibrate when the channels are first engaged or when their configuration differs from that of the channel before it.  The 1769-IF4 does not provide loop power for analog inputs, so an external power source meeting the needs of the input transmitter is necessary.  The module has a common mode rejection ratio of more than 60 dB at 50 and 60 Hz and a normal mode rejection ratio of -50 dB at 50 to 60 Hz.  It has an open-type enclosure and can be mounted on either a DIN rail or a panel.  The maximum current consumption of the 1769-IF4 is 120 mA at 5V DC and 60 mA at 24V DC.  The maximum common mode voltage per channel is 10V DC, and the rated operating voltage is 30V AC or 30V DC.  The operating temperature range for the 1769-IF4 is 0 °C to +60 °C (32 °F to +140 °F), whereas the storage temperature range is -40 °C to +85 °C (-40 °F to +185 °F)

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.

Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.

ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.

GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.

Honeywell - Experion® PKS; ControlEdge™ HC900; etc.

Many Available just wait for you, feel free to ask to get better deal!!!
Bou L
Sales Specialist
Bou.l@tztechautomation.com
+86-175 5077 6091


Product Tags 1769-IF4          1769IF4          Ab 1769-IF4          A-B 1769-IF4          Allen Bradley 1769-IF4          Rockwell 1769-IF4
