Technical Specifications for 1769-IF4
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Power Switch
|
24 VDC
|
|
Part Number/Catalog No.
|
1769-IF4
|
Input voltage range
|
0-10.5VDC
|
|
Module Type
|
Analog Input Module
|
Power Consumption
|
33.6 Watts
|
|
Manufacture Year
|
2021
|
Backplane Current
|
1.4 Amps
|
|
Product Package
|
Original Package
|
UPC
|
10662468992937
|

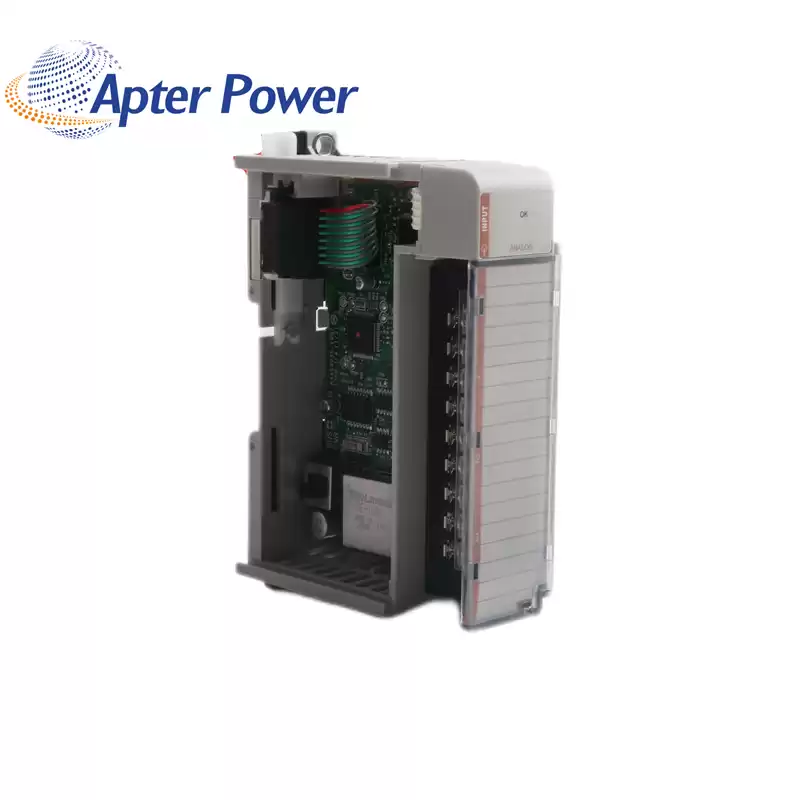

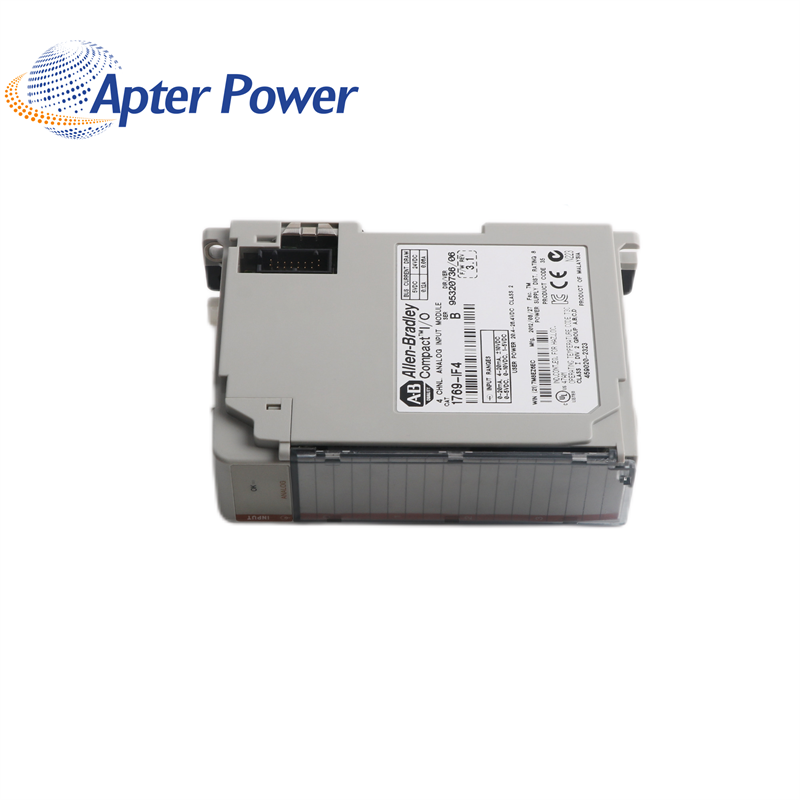

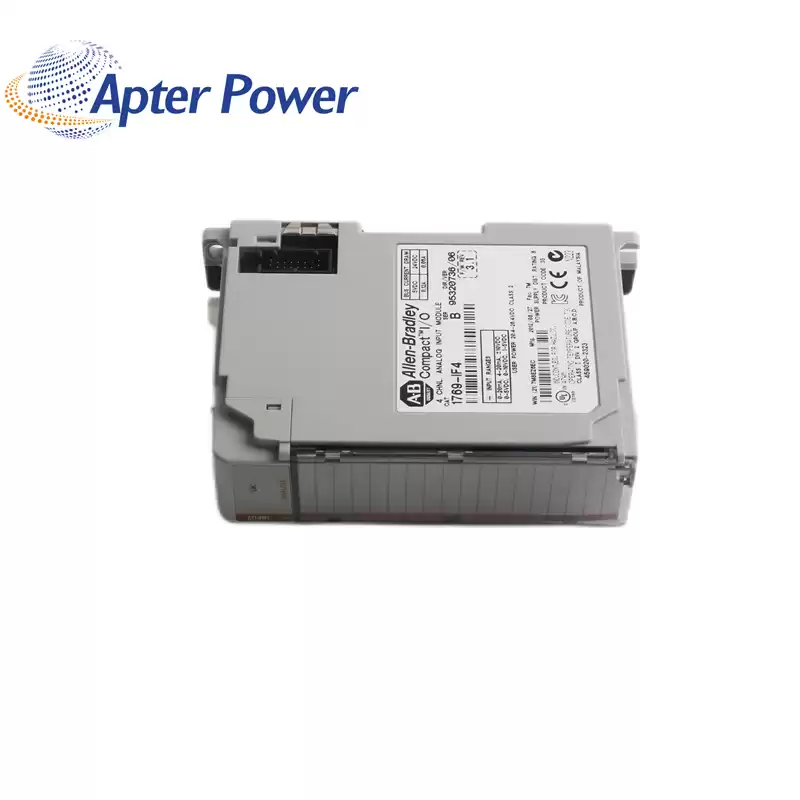

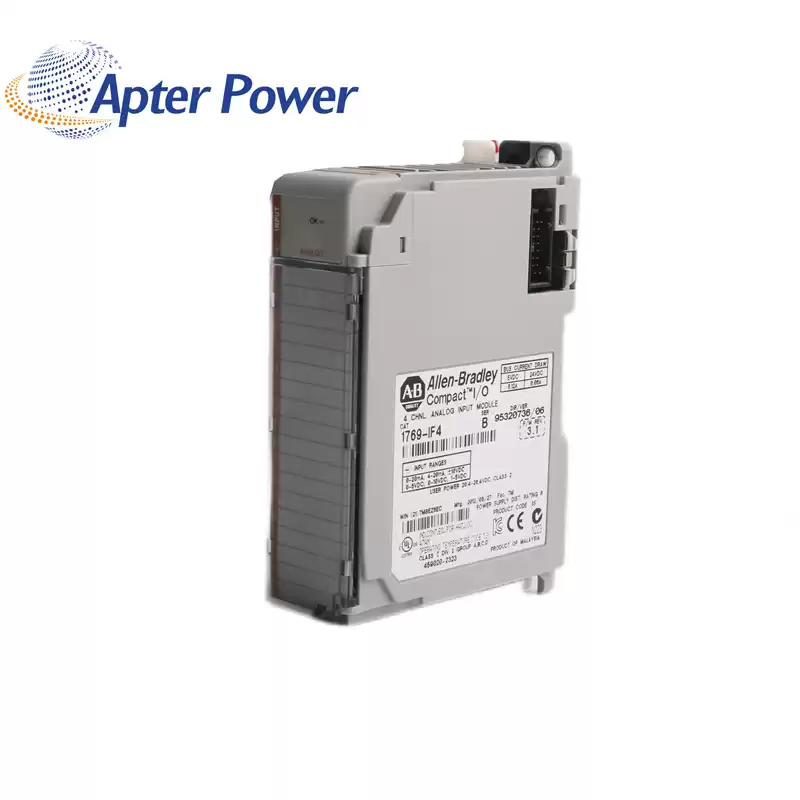

About 1769-IF4
|
The 1769-IF4 has input ranges of +/-10 Volts, 0 to 10 Volts, 0 to 5 Volts, 1 to 5 Volts, 0 to 20 mA, and 4 to 20 mA. Its maximum current draw is 5 Volts DC for both Series A and Series B modules and 24 Volts DC for Series B modules. The rated working voltage is 30 Volts AC or DC and the common mode voltage range is +/-10 Volts maximum per channel. The storage temperature requirement of the 1769-IF4 is -40 to 85 degrees Celsius, while its operating temperature is 0 to 60 degrees Celsius.
The module’s operating vibration is 5 g at 10 to 500 Hertz and a relay operating vibration of 2 g while s operating shock is 30 g, non-operating shock is 40 g, and relay operation shock is 7.5 g. It also has a 2000-meter operating altitude and a non-condensing relative humidity of 5 to 95%.
The 1769-IF4 is a Compact I/O analog module. It can convert and store the analog data digitally. Four differential or single-ended channels are available for this module and it can perform auto-calibration when it is enabled initially in a channel or when the channel has a different configuration than that of the previous channel.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
