1769-IF4
|
|
Dimensions ：
|
4cmx8.7cmx13cm
|
Weight：
|
0.2KG
|
|
The 1769-IF4 has input ranges of +/-10 Volts, 0 to 10 Volts, 0 to 5 Volts, 1 to 5 Volts, 0 to 20 mA, and 4 to 20 mA. Its maximum current draw is 5 Volts DC for both Series A and Series B modules and 24 Volts DC for Series B modules. The rated working voltage is 30 Volts AC or DC and the common mode voltage range is +/-10 Volts maximum per channel. The storage temperature requirement of the 1769-IF4 is -40 to 85 degrees Celsius, while its operating temperature is 0 to 60 degrees Celsius.

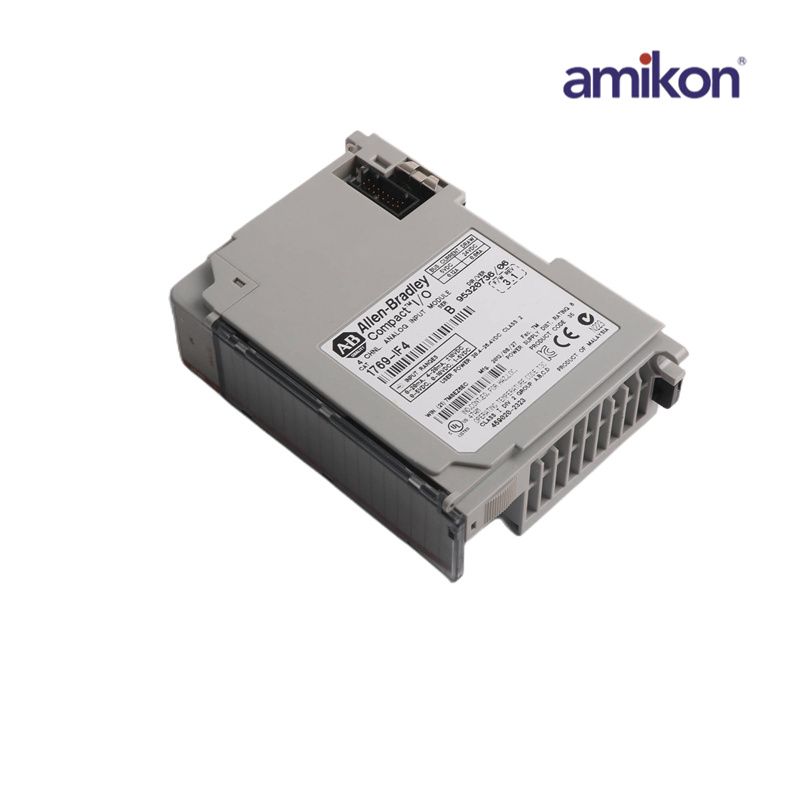

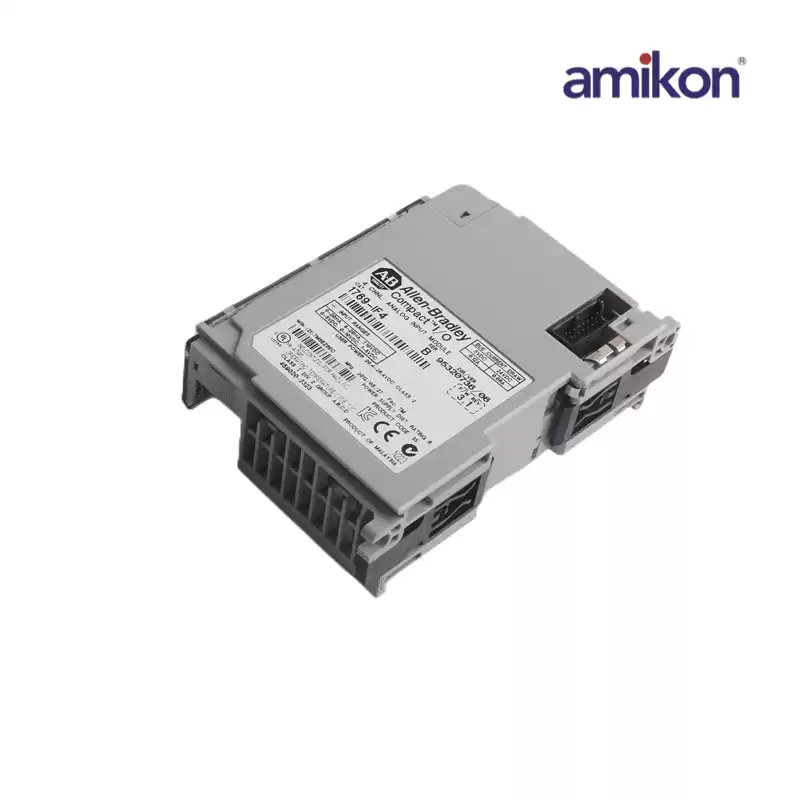

The 1769-IF4 is a Compact I/O analog module. It can convert and store the analog data digitally. Four differential or single-ended channels are available for this module and it can perform auto-calibration when it is enabled initially in a channel or when the channel has a different configuration than that of the previous channel.
|
|
