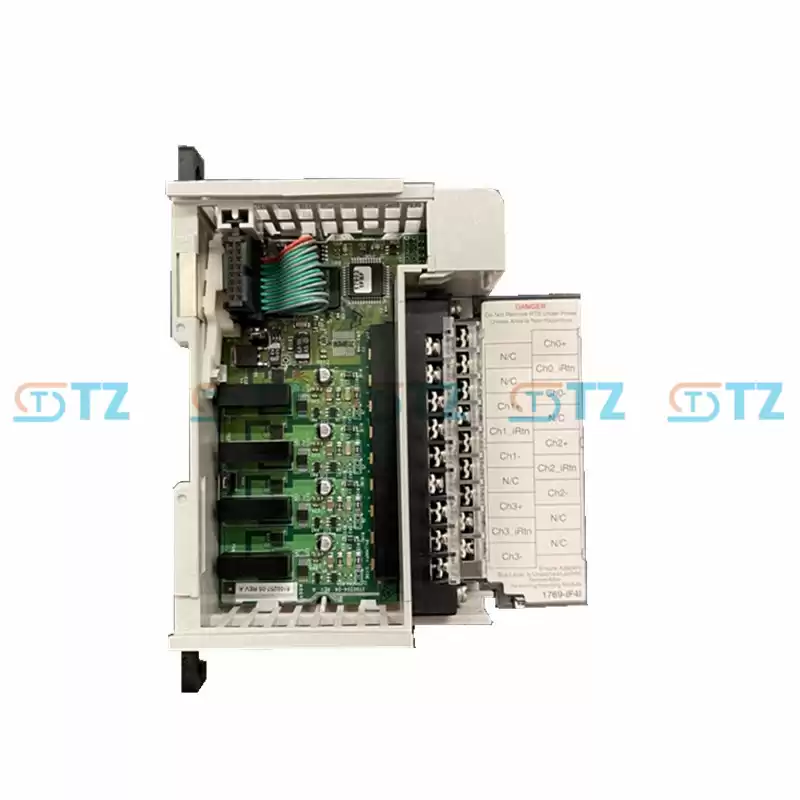

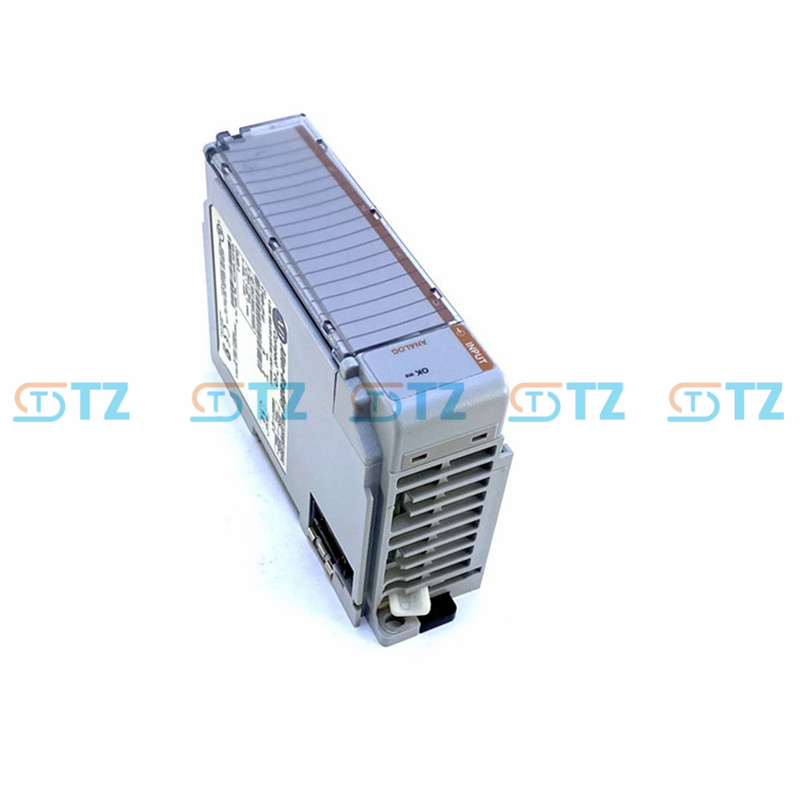

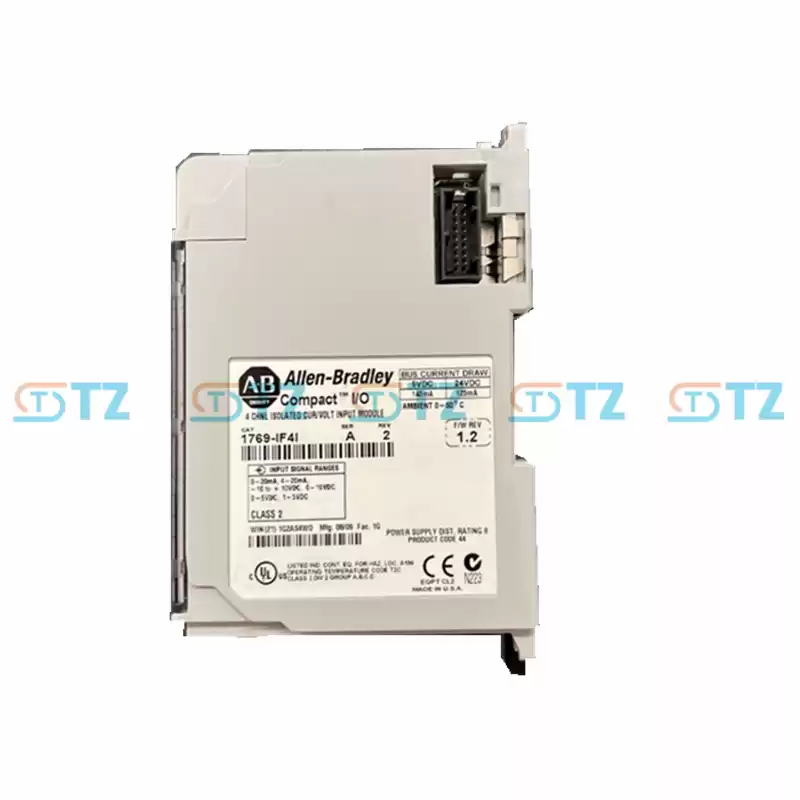

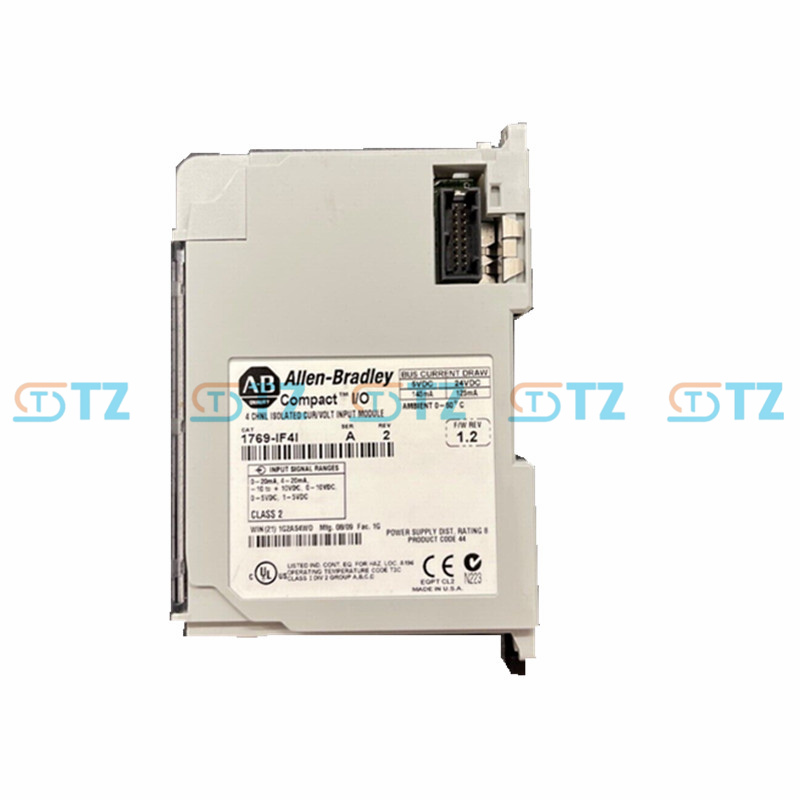

It has four differential or single-ended channels that can be used to convert and digitally store analog data. The module may auto-calibrate when the channels are first engaged or when their configuration differs from that of the channel before it. The 1769-IF4I provides loop power for analog inputs, so an external power source is not necessary. The module has a common mode rejection ratio of more than 60 dB at 50 and 60 Hz and a normal mode rejection ratio of -50 dB at 50 to 60 Hz. It has an open-type enclosure and can be mounted on either a DIN rail or a panel. The maximum current consumption of the 1769-IF4I is 120 mA at 5V DC and 60 mA at 24V DC. The maximum common mode voltage per channel is 10V DC, and the rated operating voltage is 30V AC or 30V DC. The operating temperature range for the 1769-IF4I is 0 °C to +60 °C (32 °F to +140 °F), whereas the storage temperature range is -40 °C to +85 °C (-40 °F to +185 °F).
All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.
Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.
ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.
GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.
Honeywell - Experion® PKS; ControlEdge™ HC900; etc.
Many Available just wait for you, feel free to ask to get better deal!!!
