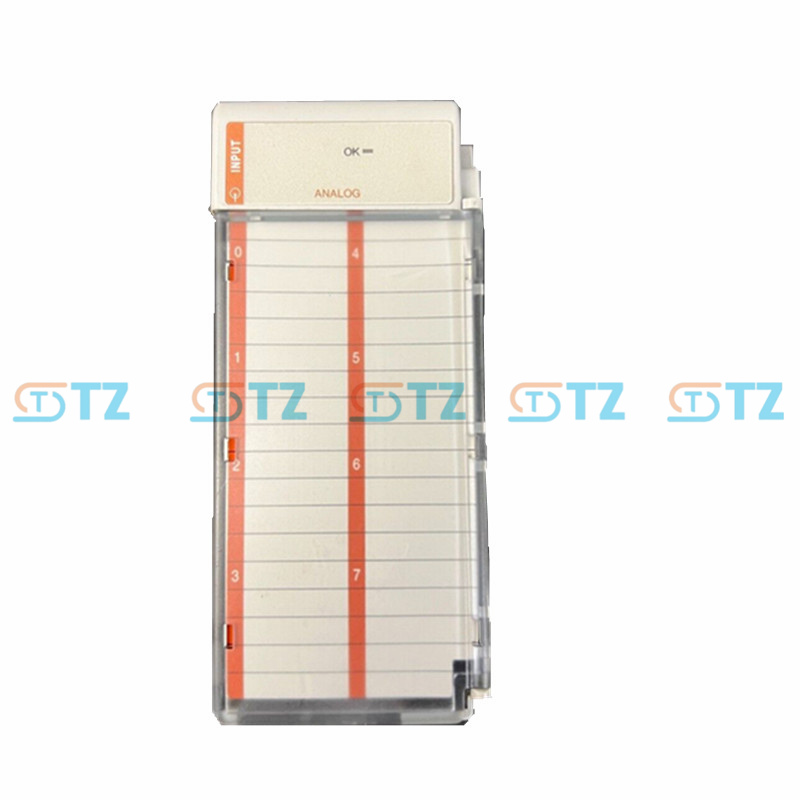

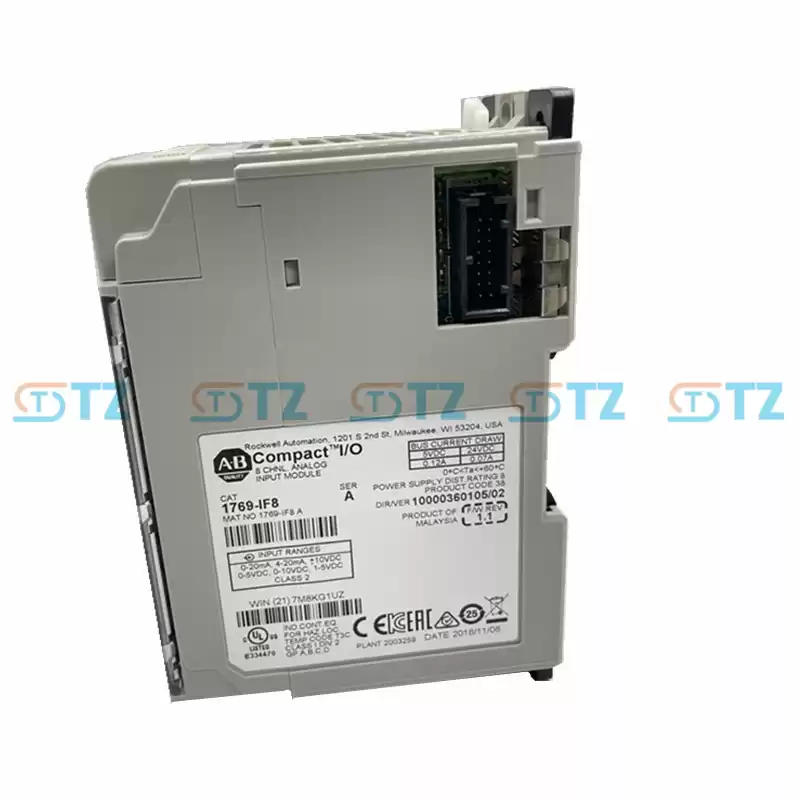

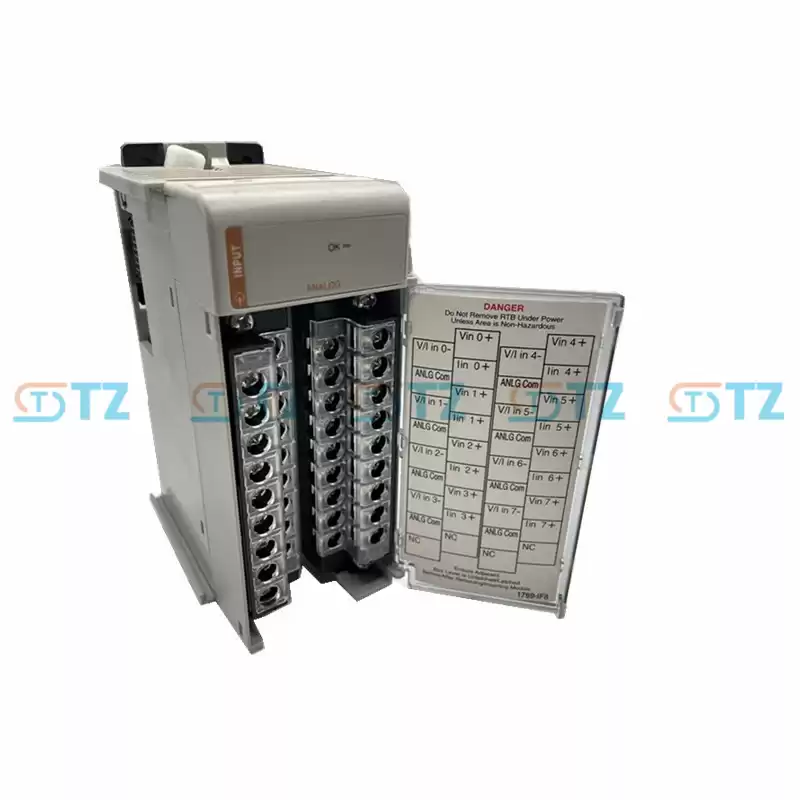

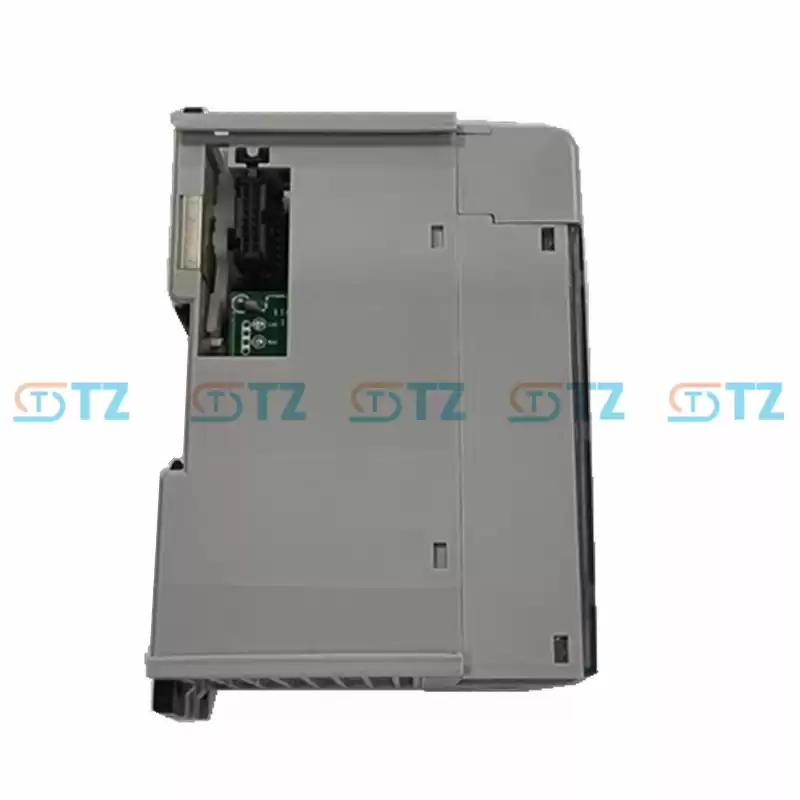

It has eight single-ended or differential input channels that can be used to convert and digitally store analog data. The 1769-IF8 does not provide loop power for analog inputs, so an external power source meeting the needs of the input transmitter is necessary. The module has a common mode rejection ratio of more than 60 dB at 50 and 60 Hz and a normal mode rejection ratio of -50 dB at 50 to 60 Hz. The maximum current consumption of the 1769-IF8 is 120 mA at 5V DC and 60 mA at 24V DC. The maximum common mode voltage per channel is 10V DC, and the rated operating voltage is 30V AC or 30V DC. The operating temperature range for the 1769-IF8 is 0 °C to +60 °C (32 °F to +140 °F), whereas the storage temperature range is -40 °.
All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.
Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.
ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.
GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.
Honeywell - Experion® PKS; ControlEdge™ HC900; etc.
Many Available just wait for you, feel free to ask to get better deal!!!
