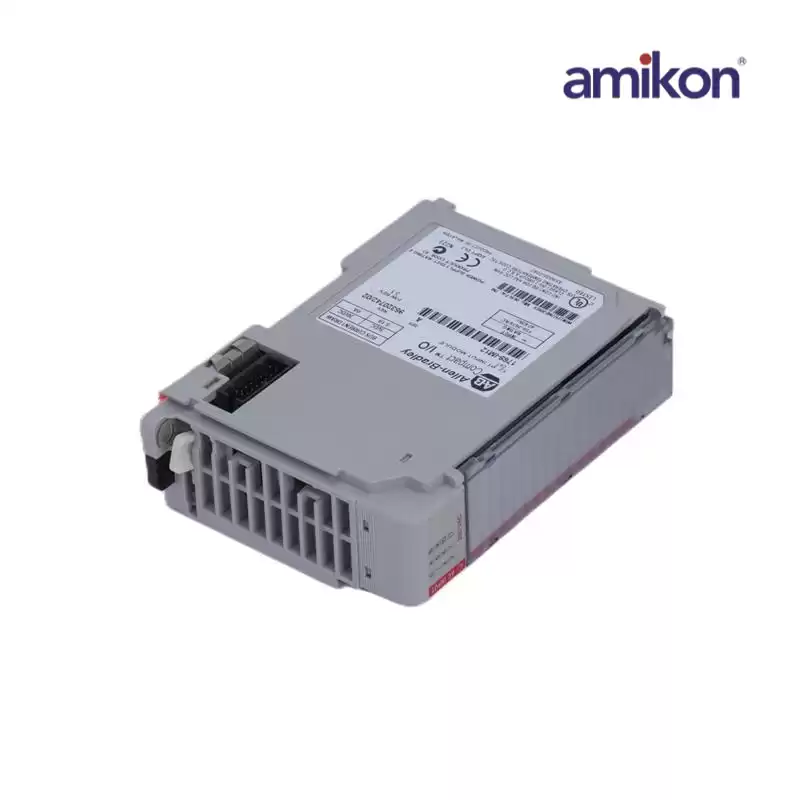

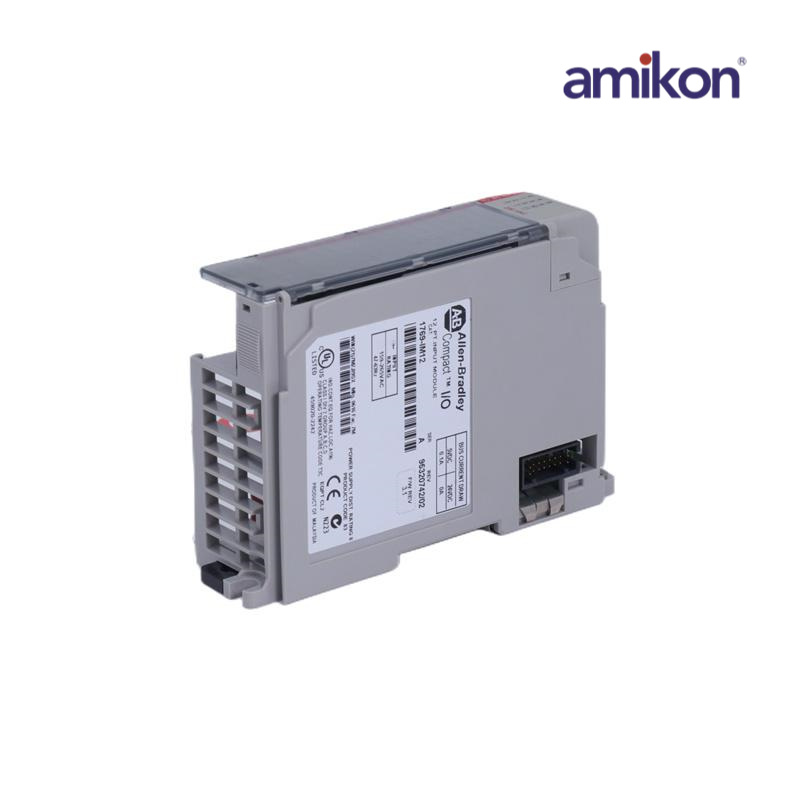

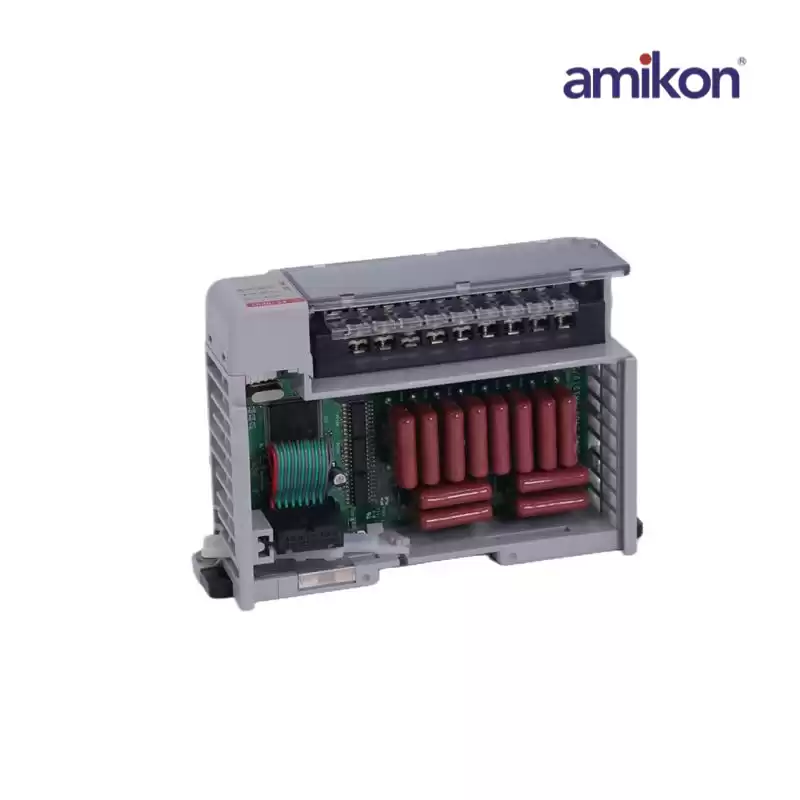

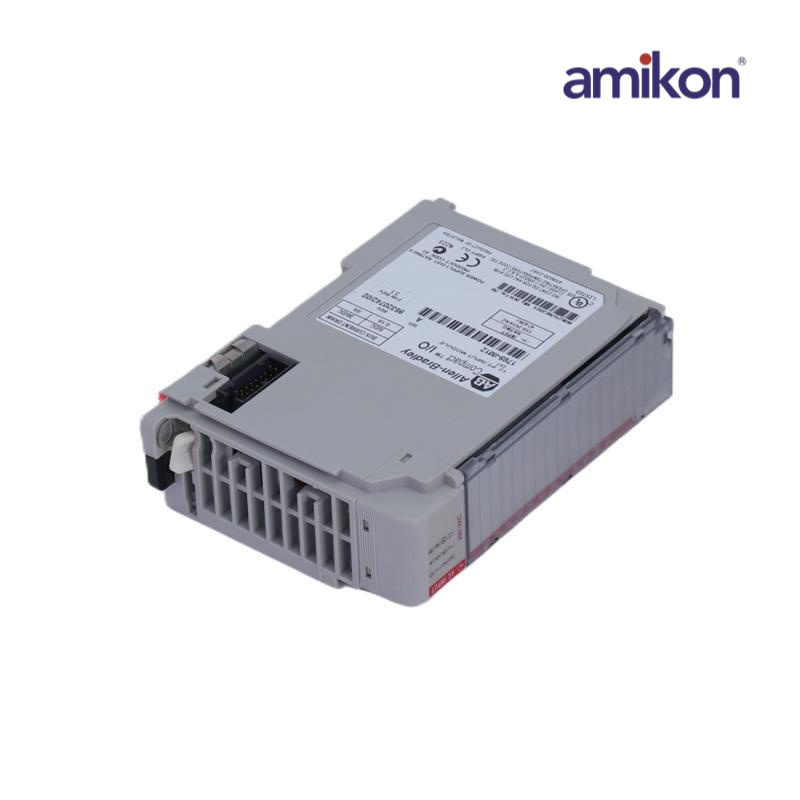

1769-IM12
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1769-IM12 compact 240 Volts AC input module has an operational isolation voltage of 132 Volts AC with IEC Class 2 reinforced insulation tested at 1836 Volts AC for 1 seconds between input points and BUS.It has one slot width and is installed on the panel mount or on a DIN rail using a terminal screw.
The 1769-IM12 compact 240V AC input module by is an AC input module in the compact I/O series which has 12 internally-connected 200 to 240 Volts AC inputs with an operational AC voltage range between 159 to 264 Volts AC at 47 to 63 Hertz and a signal delay ON to OFF time of 20 milliseconds.
|
|
