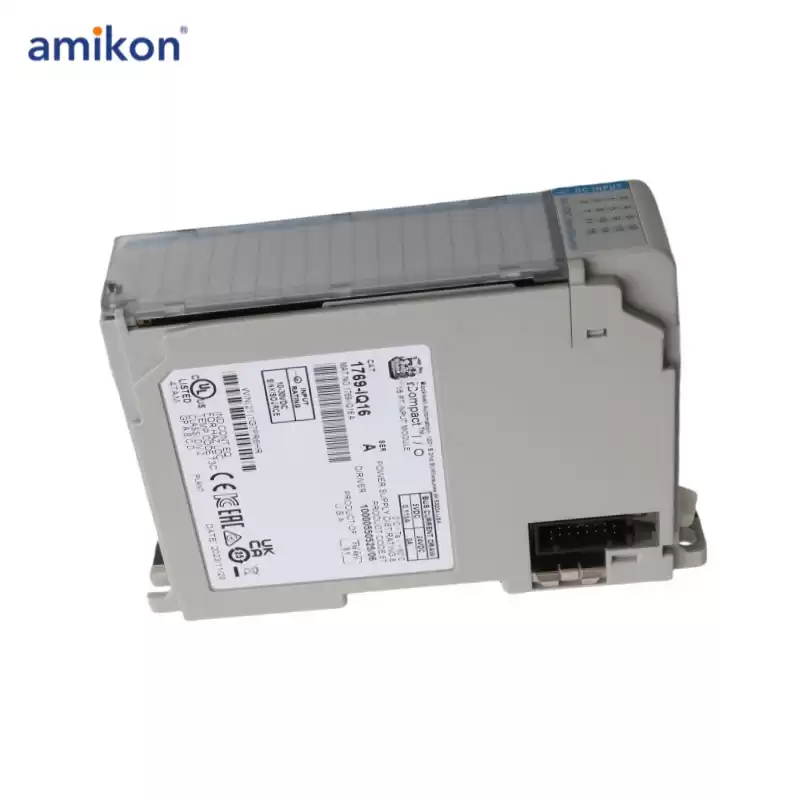

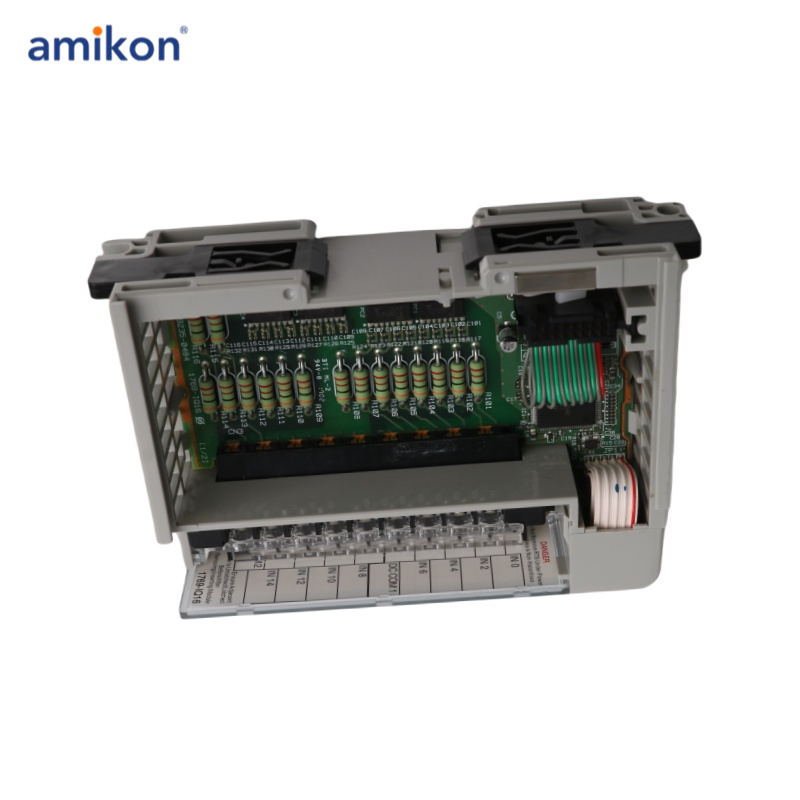

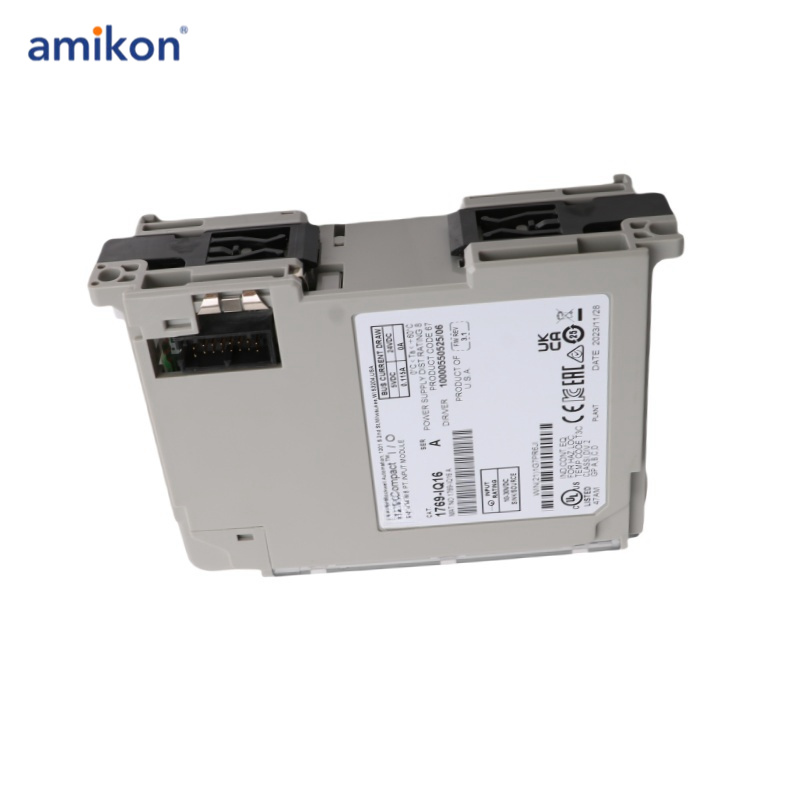

1769-IQ16F High Speed DC Input Module

Brand new and original sealed//Same Day Shipment


  • Payment Term100% Advance Payment T/T Bank Wire Transfer
  • Warranty PeriodOne Year Warranty
  • Dimensions12cmx5cmx9cm
  • Weight0.25KG
  • Country of OriginSWEDEN

Company infomation:

AMIKON LIMITED gives you access to a global supply of automation parts at your fingertips, ensuring that manufacturers can avoid unnecessary downtime. No matter where in the world, we are committed to helping businesses save millions in lost revenue.


Get in touch with us:

Sales Manager

E-mail

WhatsApp

Wechat

Lisa

sales7@amikon.cn

+86 18965423501

AMKPLC


About product:

The 1769-IQ16F DC high-speed input module is a 16-point input module designed for DC voltage sourcing and sinking. It operates within a voltage range of 10 to 30 Volts DC at an ambient temperature of up to 30°C (86°F), and between 10 to 26.4 Volts DC at a higher ambient temperature of 60°C (140°F). This module is distinct from other I/O modules in the series due to its built-in digital filtering feature, which allows configuration of ON/OFF and OFF/ON delay times of 0 ms, 100 ms, 500 ms, 1 ms, and 2 ms, supporting fast and flexible response rates. The 1769-IQ16F also has a maximum input signal delay of 2 ms (ON to OFF) and 300 ms (OFF to ON). Its power requirements include a current draw of 110 mA at 5.1 Volts DC and a heat dissipation of 3.55 Watts.


Specifications:

Attribute

Specification

Part Number/Catalog No.

1769-IQ16F

Module Type

High Speed DC Input Module

Input Type

Digital Input

Communication Cable

16 Point

Shipping Weight

2 pounds

Shipping Dimensions

8 x 8 x 5 inches

Series

A and B

Distance Rating

8 Modules

Working Voltage Rating

30 Volts AC / 30 Volts DC

Replacement Terminal Block

1769-RTBN18

Wire Type

Copper, 90 degrees Celsius

Wire Size (Solid)

22-14 AW
