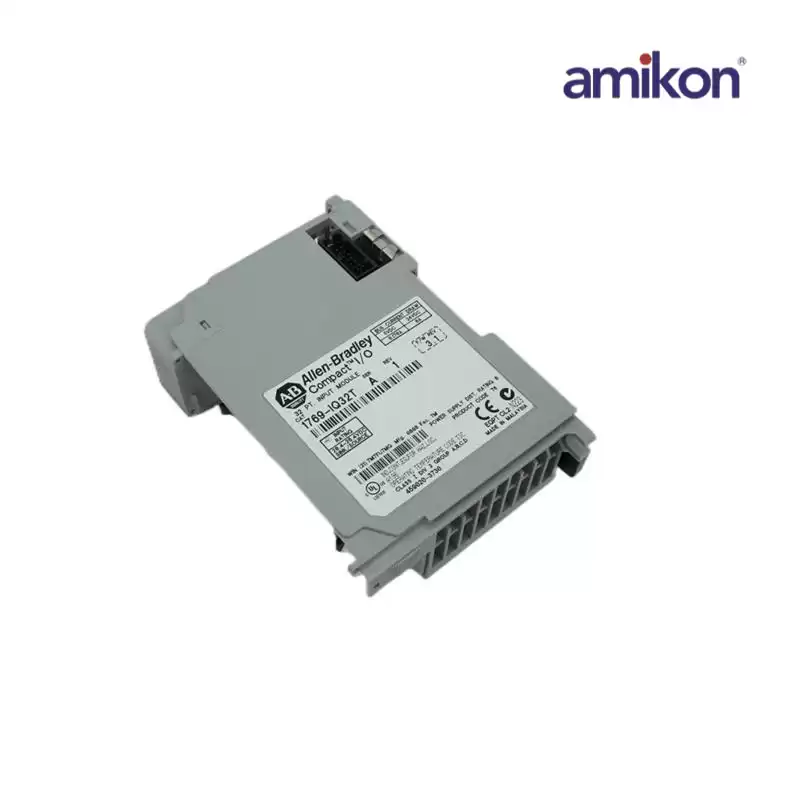

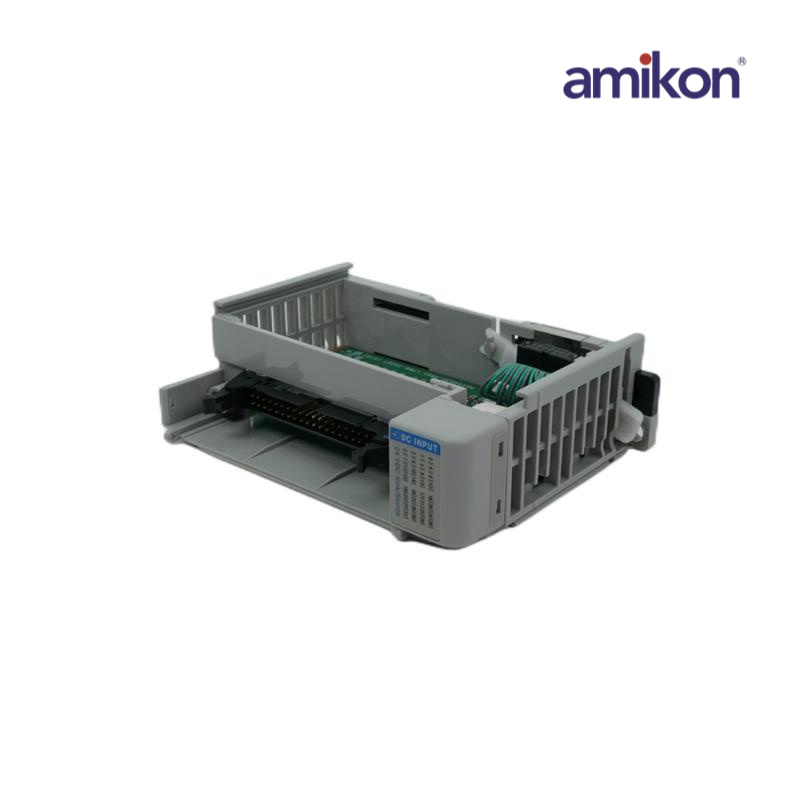

1769-IQ32T
|
|
Dimensions ：
|
3.8cmx8.6cmx13cm
|
Weight：
|
0.25KG
|
|
The 1769-IQ32T has an operating voltage range of 20.4-26.4V DC at 60 deg. Celsius (140 deg. Fahrenheit). Its minimum on-state voltage is 19VDC and its maximum inrush current is 5 mA. It has a Type 1+ IEC input compatibility with an open-style enclosure type rating.The 1769-IQ32T Compact Input Module can be installed not more than 8 modules away from the power supply. Its tongue-and-groove slots serve as guides for installation to any adjacent module including the processor.
The 1769-IQ32T is a Compact I/O module that features a High number of discrete input channels embedded in a compact assembly. This module is Programmable Logic Controller (PLC) component that is used to interface field devices that operate in binary or ON/OFF actions.
|
|
