Brand Name                 AB

Product reference      1769-IQ6XOW4

The 1769 Compact I/O™ modules can be used in the following applications:

• With a CompactLogix™ controller

• For expansion I/O in a MicroLogix™ 1500 controller assembly • In an assembly with a 1769-ADN DeviceNet adapter

• In an assembly with a 1769-AENTR Ethernet adapter. Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply. Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.

The Allen-Bradley 1769-IQ6XOW4 Compact Digital DC I/O Module is a combination sink/source input and AC/DC relay output module. It can be installed on a DIN rail or a panel using mounting screws. It is designed to fit perfectly with other modules to build an assembly or system. The 1769-IQ6XOW4’s tongue-and-groove design locks it together with other modules. It also features an integrated communication bus that connects one module to another via the movable bus connector.
The 10-Channel 1769-IQ6XOW4 Compact I/O Module comes with six 24V DC sink/source inputs and four AC/DC normally open relay contact outputs. For its input, it has an operating voltage range of 10-30V DC at 30 °C (86 °F) and 10-26.4V DC at 60 °C (140 °F). For output, the operating voltage is rated between 5 and 265V AC and between 5 and 125V DC. It has a maximum inrush current of 250 mA with type 3 IEC input compatibility. Its maximum current per point is 2.5 A while per module the maximum is 8 A.
The 1769-IQ6XOW4 Combination Module is C-UL certified (under CSA C22.2 No. 142), UL 508 listed, and is compliant with CE and C-Tick for all applicable directives. For optimal performance, it should be mounted 8 modules away from the power supply. Ensure enough ventilation and proper location for smooth operation and extended device life.

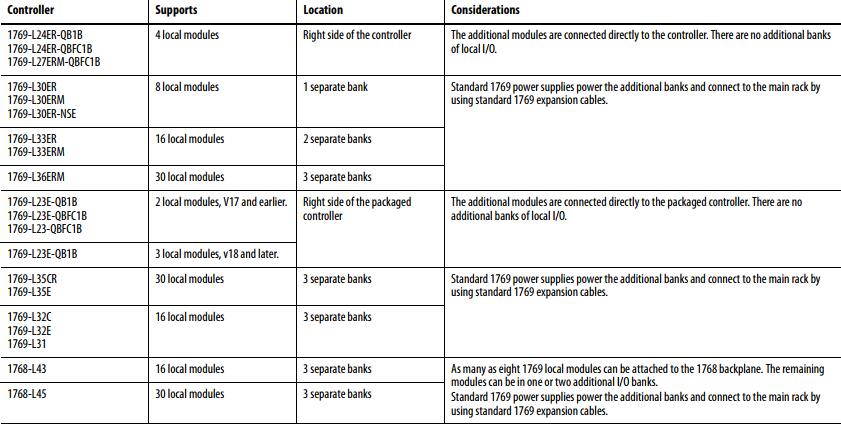

Place Compact I/O Modules You can DIN-rail or panel mount the controller and I/O modules. The number of local I/O modules that are supported depends on the controller.

Each 1769 I/O module has a distance rating. In 1769 systems, the distance rating is the number of modules between the specific module and the 1769 power supply. In a 1768 system, the distance rating is the number of modules between the specific I/O module and the 1768 controller.

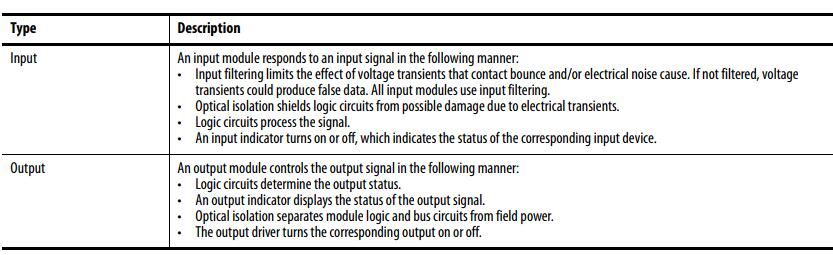

Digital I/O Modules Choose digital I/O modules when you need these features.

Most output modules have built-in surge suppression to reduce the effects of high-voltage transients. Use an additional suppression device if an output is being used to control inductive devices, such as relays, motor starters, solenoids, or motors.

Additional suppression is especially important if your inductive device is in series with or parallel to hard contacts, such as push buttons or selector switches. Add a suppression device directly across the coil of an inductive device. The suppression device reduces the effects of voltage transients that are caused by interrupting the current to that device and to prolong the life of the switch contacts.

Analog I/O Modules Choose analog, thermocouple, or RTD modules for these features:

 • Individually configurable channels

 • Ability to enable and disable channels individually

 • Onboard scaling • Auto calibration of inputs

• Online configuration

 • Selectable input filters

• Over-range and under-range detection and indication

• Selectable response to a broken input sensor

• Selectable power source

• Input modules offer both single-ended or differential inputs

 • Ability to direct output device operation during an abnormal condition

• High accuracy ratings The data can be configured on board each module as:

 • Engineering Units in volts or milliamps.

 • Scaled-for-PID.

 • Percent of range.

 • Raw/Proportional Data for maximum resolution.
