1769-L20/AB CompactLogix Controller

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1769-L20

The Allen-Bradley 1769-L20 is a CompactLogix Controller. It can support up to 8 modules in a maximum of 2 I/O banks with 1 expansion cable allowed and it has 1 RS-232 port available. LED indicators let the users monitor the controller status, the channel 0 RS-232 port status, and the channel 1 RS-232 port status. The channel 0 serial port has been set up for DH-485 communications.

This controller also comes with a 64 KB user memory which is allotted for both user available memory and memory reserved for overhead. The 1747-BA battery powers this controller and it is replaceable. The entire 1769-L20 controller measures 50 x 87 x 118 millimeters and has a shipping weight of 0.715 pounds. Operators can use a 1747-CP3 or 1756-CP3 programming cable with it and it can be mounted on a panel mount or DIN rail. Configuring this controller is done via the RSLogix5000 programming software.

The 1769-L20 comes with a backplane current of 600 mA at 5 Volts DC and 0 mA at 24 Volts DC. Intended for clean, dry environments, it has an operating temperature of 0 to 60 degrees Celsius and storage temperature of -40 to 85 degrees Celsius. Its ambient non-condensing relative humidity is 5 to 95% and the operating vibration is 5 g at 10 to 500 Hertz, 0.030. The 1769-L20’s operating shock is 30 g at 11 milliseconds when panel-mounted and 20 g at 11 milliseconds when DIN rail-mounted and its non-operating shocks are 40 g and 30 g, respectively.

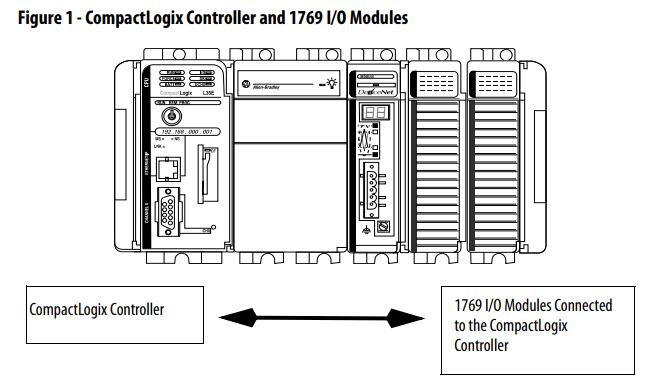

This chapter introduces the 1769 CompactLogix controllers. These controllers offer state-of-the-art control, communication, and I/O elements in a distributed control package. About the 1769 CompactLogix Controller The 1769 CompactLogix controller offers state-of-the-art control, communication, and I/O elements in a distributed control package.

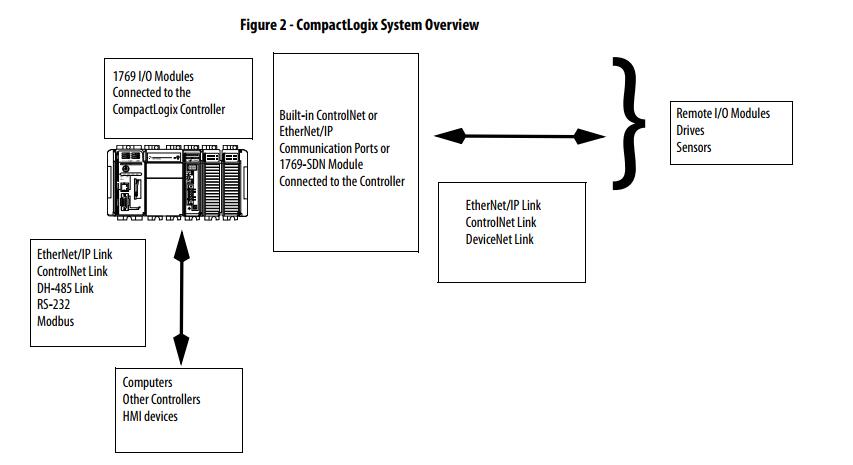

For a more flexible system, use: • multiple controllers in a single chassis. • multiple controllers joined across networks. • I/O in multiple platforms that is distributed in many locations and connected over multiple I/O links.

The CompactLogix controller, part of the Logix family of controllers, provides a small, powerful, cost-effective system consisting of the following: • RSLogix™ 5000 programming software • Built-in communication ports for EtherNet/IP (1769-L32E and 1769- L35E only) and ControlNet (1769-L32C and 1769-L35CR only) networks • A 1769-SDN communication interface module providing I/O control and remote device configuration over DeviceNet • A built-in serial port on every CompactLogix controller • Compact I/O modules providing a compact, DIN-rail or panel-mounted I/O system

When designing a CompactLogix system, determine the network configuration and the placement of components in each location. To design your CompactLogix system, you must select the following: • I/O devices • A communication network • Controllers • Power supplies • Softwar
