1769-L20
|
|
Dimensions ：
|
5.7cmx13.3cmx10.2cm
|
Weight：
|
0.2KG
|
|
The 1769-L20 comes with a backplane current of 600 mA at 5 Volts DC and 0 mA at 24 Volts DC. Intended for clean, dry environments, it has an operating temperature of 0 to 60 degrees Celsius and storage temperature of -40 to 85 degrees Celsius. Its ambient non-condensing relative humidity is 5 to 95% and the operating vibration is 5 g at 10 to 500 Hertz, 0.030.

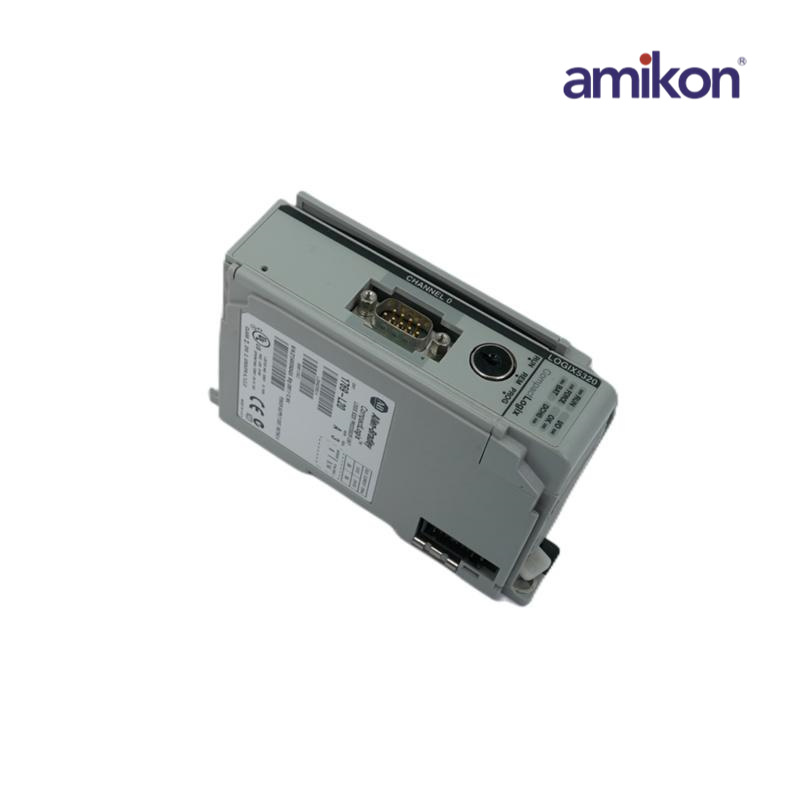

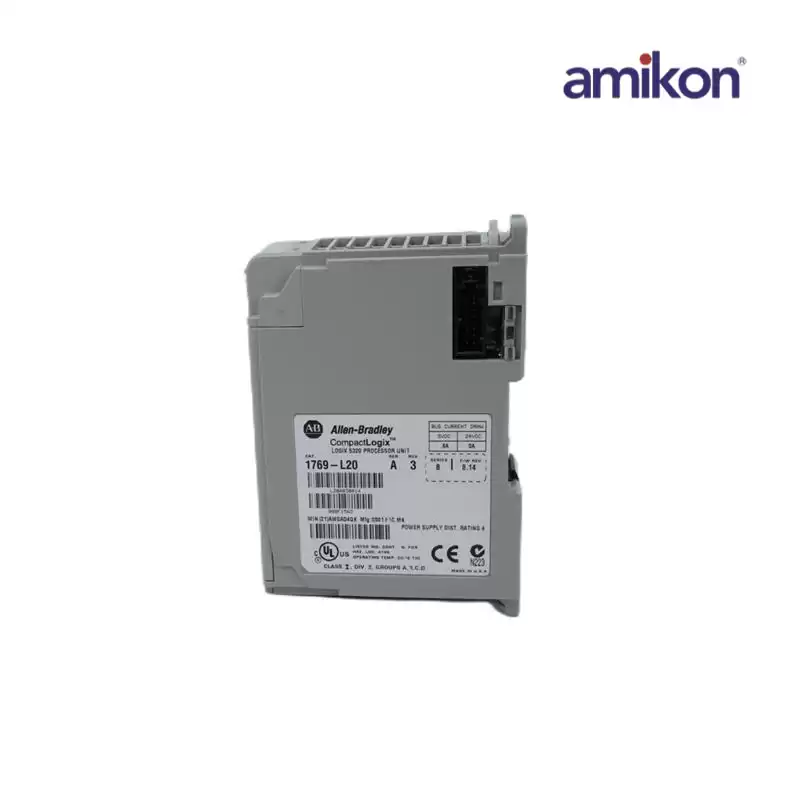

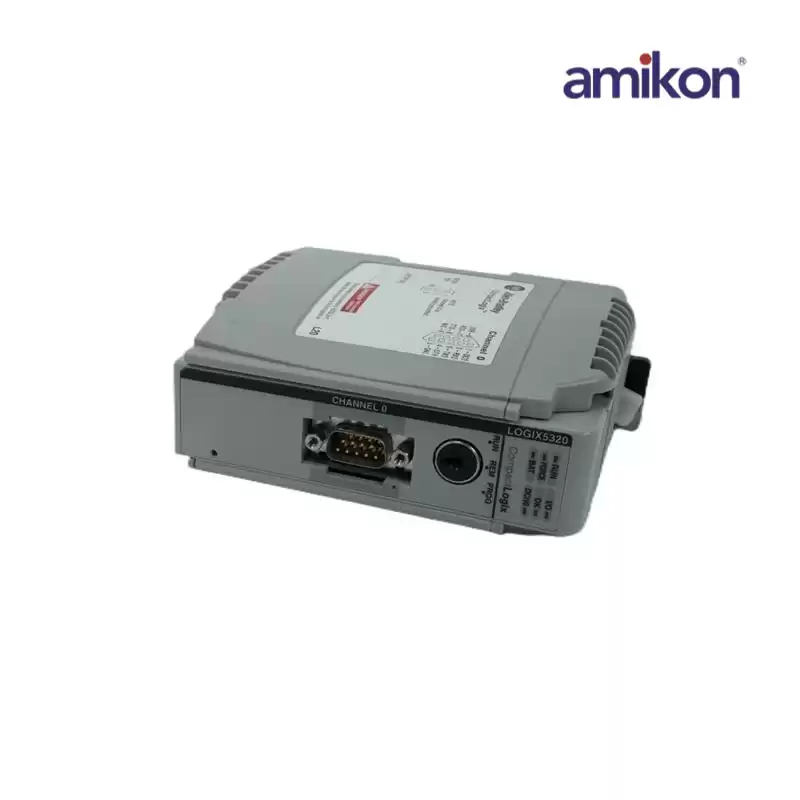

The 1769-L20 is a CompactLogix Controller. It can support up to 8 modules in a maximum of 2 I/O banks with 1 expansion cable allowed and it has 1 RS-232 port available. LED indicators let the users monitor the controller status, the channel 0 RS-232 port status, and the channel 1 RS-232 port status. The channel 0 serial port has been set up for DH-485 communications.
|
|
