About product:

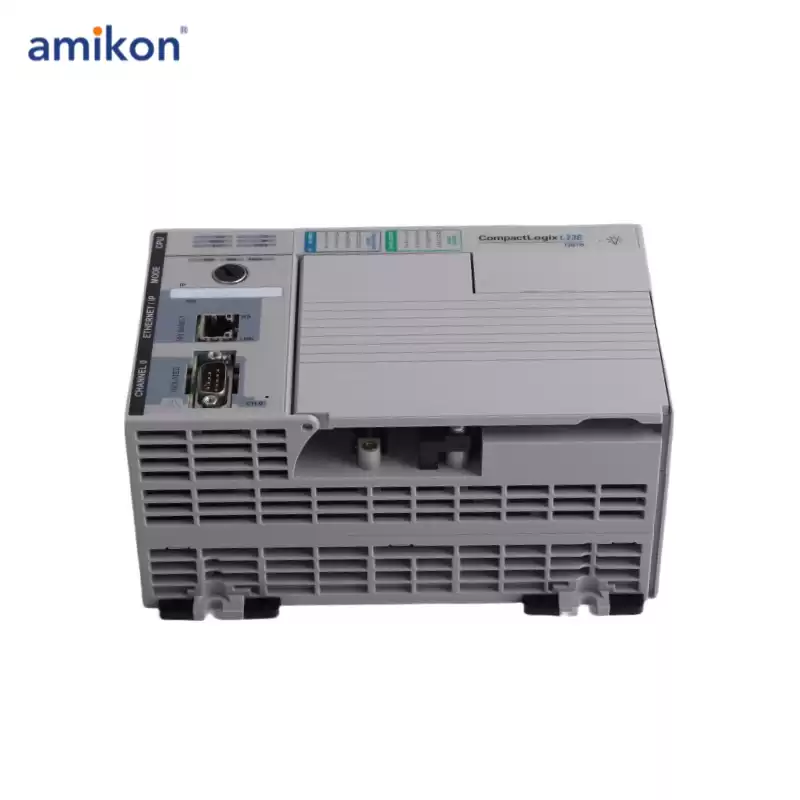

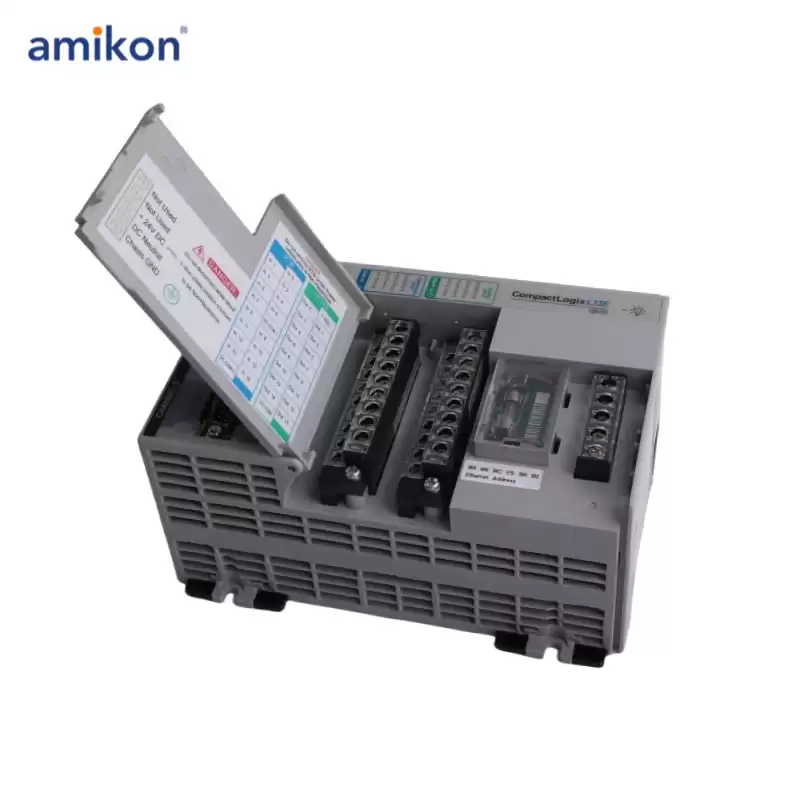

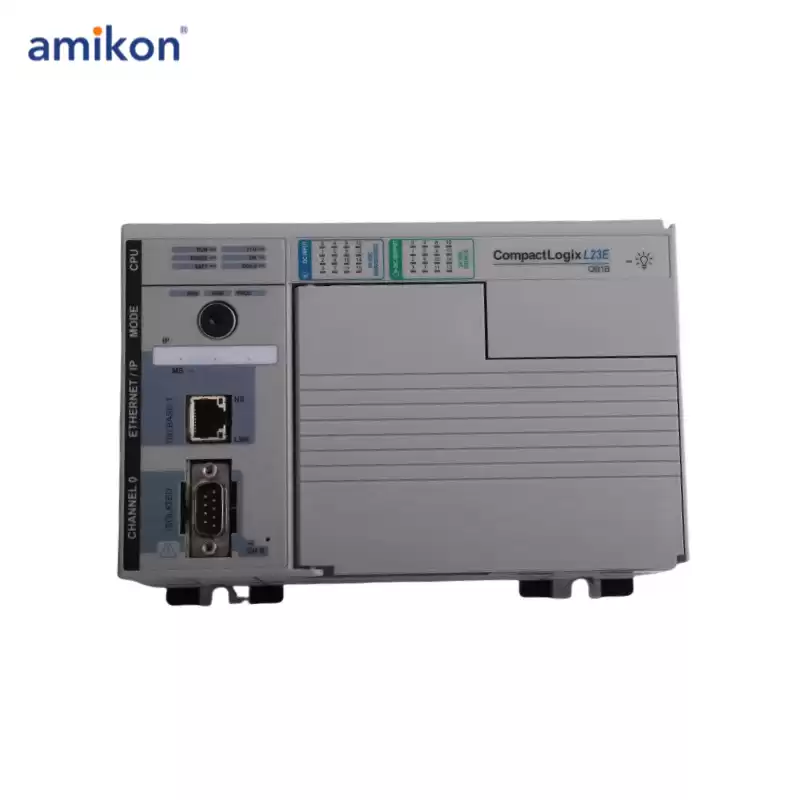

The 1769-L23E-QB1B is a packaged controller that belongs to the Compact Series 5370 L2 family, designed for out-of-the-box functionality with embedded features. It includes an integrated power supply, operating with a nominal supply voltage of 24VDC, which provides the necessary backplane power to the built-in modules.
Additionally, the 1769-L23E-QB1B comes with 16 channels of 24VDC discrete inputs and 16 channels of discrete outputs. For further I/O expansion, up to three additional 1769 I/O modules can be installed to meet specific application needs. This controller also provides 512KB of user memory, capable of handling a mix of up to 32 periodic or continuous tasks, each with 100 programs.
|
Attribute
|
Details
|
|
Part Number/Catalog No.
|
1769-L23E-QB1B
|
|
Communication Ports
|
1 Ethernet I/P; 1 RS232
|
|
Supported Protocols
|
Ethernet I/P; DF1; DH485; ASCII
|
|
Maximum Number of I/O Modules Supported
|
3 1769 Modules
|
|
Number of Tasks
|
32 Tasks
|
|
Number of Programs per Task
|
100
|
|
Number of Embedded Inputs
|
16 (24 VDC)
|
|
Programming Language
|
Relay Ladder (Safety Task only); Structured Text; Function Block; SFC
|
|
Mounting
|
DIN Rail
|
|
Current Draw @ 5V DC
|
1000 mA
|
|
Current Draw @ 24V DC
|
700 mA
|
|
Module Type
|
Processor Module
|
|
Communication
|
Serial and Ethernet
|
|
Memory
|
512 KB
|
|
Shipping Weight
|
3 pounds
|
|
Shipping Dimensions
|
11 x 8 x 6 inches
|
|
Series
|
A and B
|
|
Replacement Terminal Block Part Number
|
1769-RTBN18
|
