Technical Specifications for 1769-L23E-QBFC1B
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Storage Temperature
|
-40 to 85 C
|
|
Part Number/Catalog No.
|
1769-L23E-QBFC1B
|
Output Current
|
12.5A
|
|
Module Type
|
Packaged controller
|
Input Voltage
|
24 VDC
|
|
Manufacture Year
|
2022
|
Memory
|
512KB
|
|
Product Package
|
Original Package
|
UPC
|
10612598350756
|
About 1769-L23E-QBFC1B
|

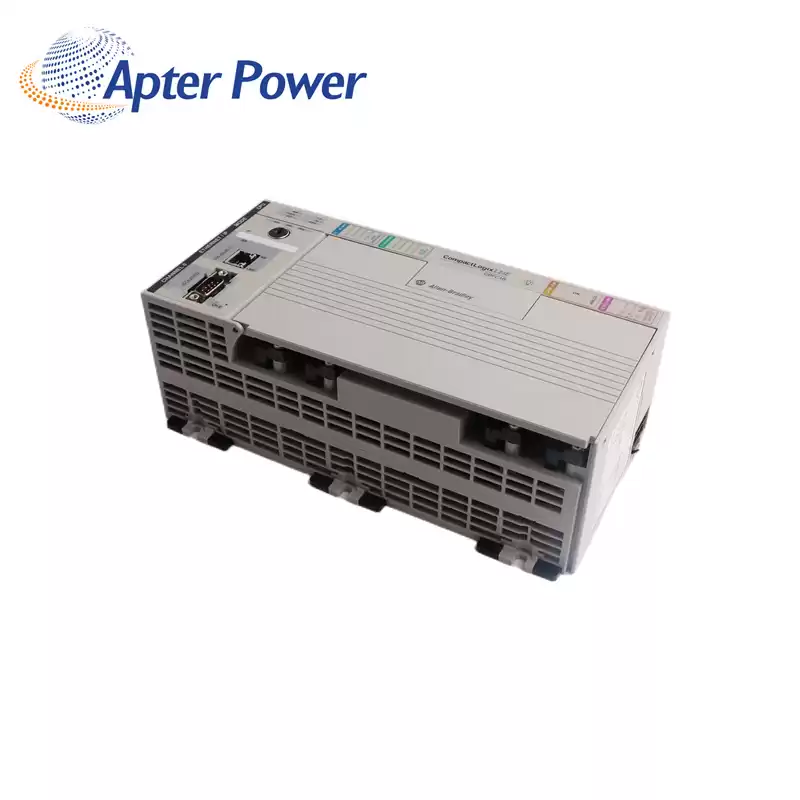

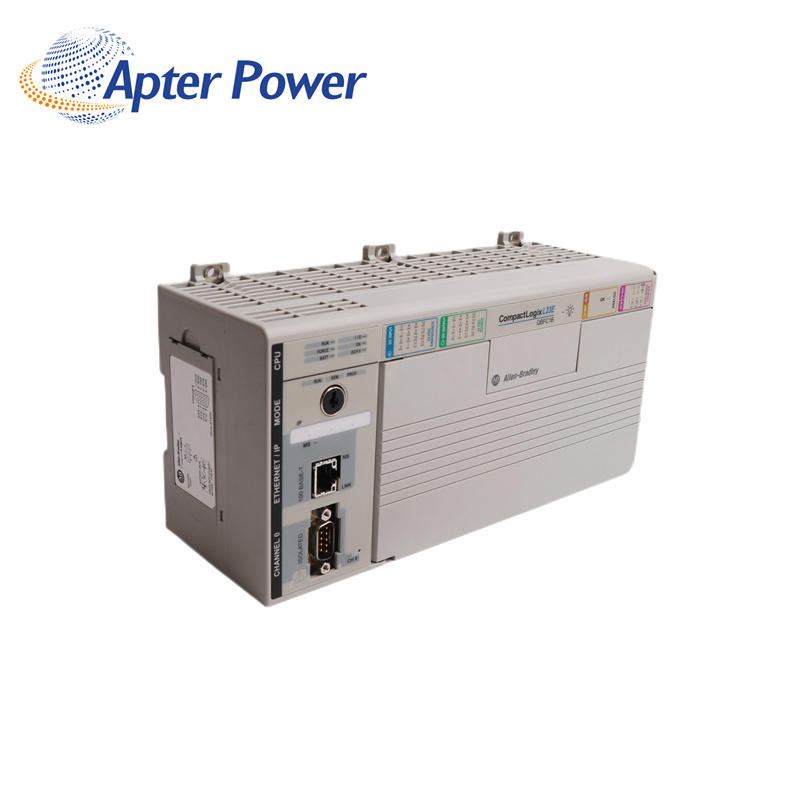

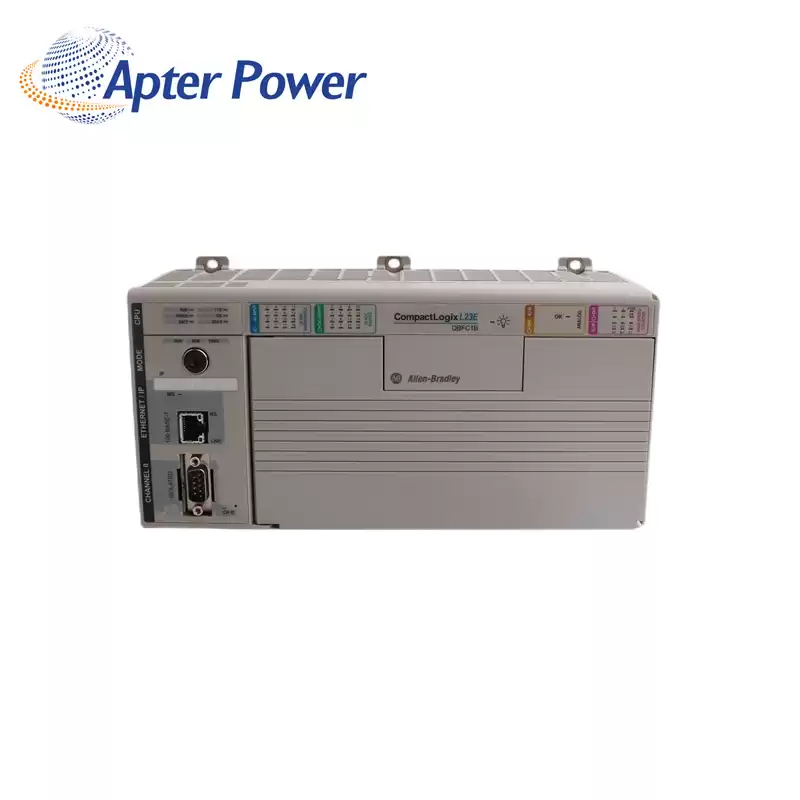

The 1769-L23E-QBFC1B Packaged Controller is a high-performance, rugged, stand-alone programmable logic controller or PLC that can be used in any type of industrial measurement, control, or monitoring application. It is designed with 16 digital inputs, 16 digital outputs, a 9-pin isolated RS-232 Serial port, 4 differential or single-ended analog inputs and 2 single-ended analog outputs, high-speed counters (similar to the 1769-HSC module), and an Ethernet connection via an RJ45 socket.
The 1769-L23E-QBFC1B is a CompactLogix packaged controller that is manufactured by . This controller is ideally used for small applications, able to control industrial machines or processes. This module comes with embedded I/O channels such as Sixteen (16) 24 VDC discrete inputs; Sixteen (16) 24VDC Discrete outputs; Four (4) Analog inputs; Two (2) Analog inputs and Four (4) High-speed counters.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
