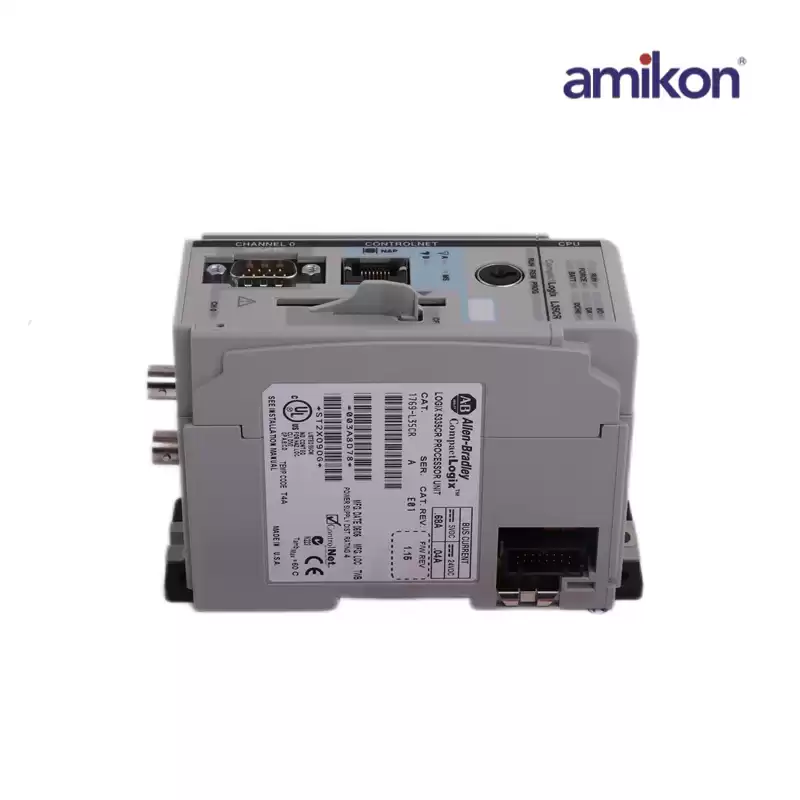

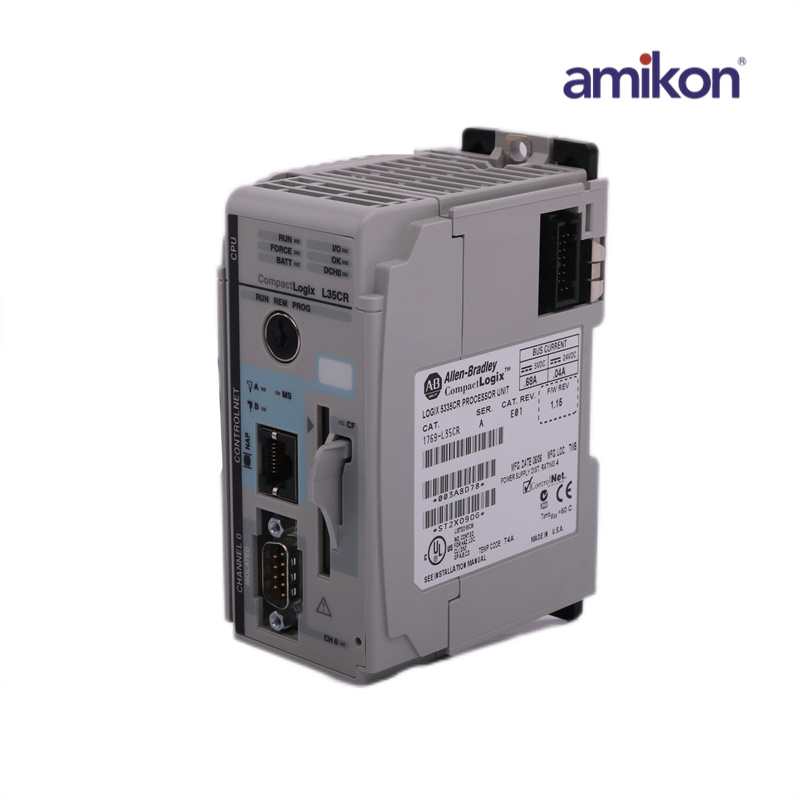

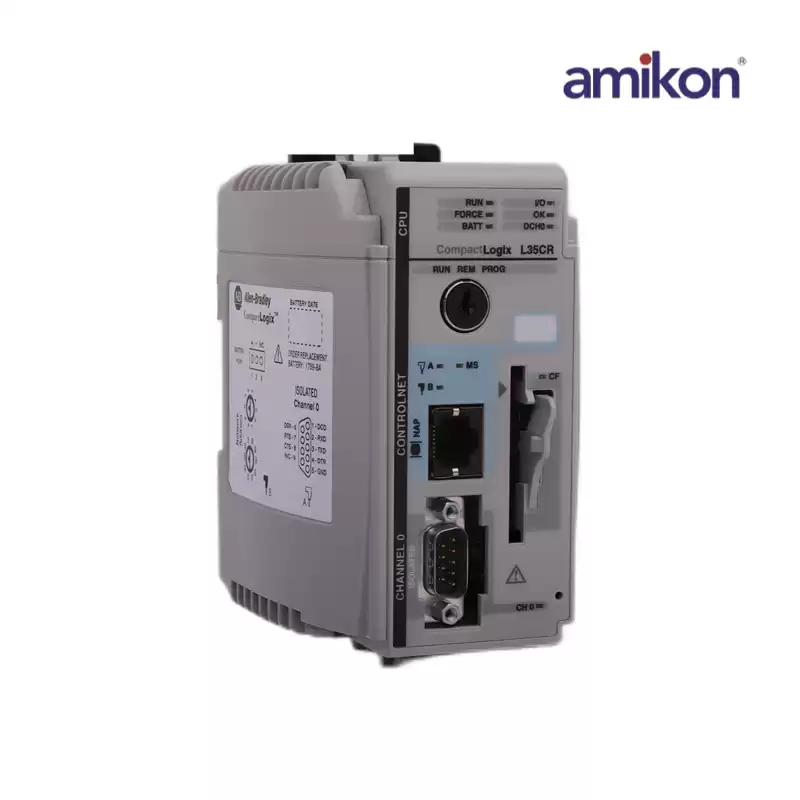

1769-L35CR
|
|
Dimensions ：
|
6.8cmx9.7cmx13.2cm
|
Weight：
|
0.35KG
|
|
The 1769-L35CR has a 30-module expansion capacity. The 1769-L35CR has a (5V) DC draw current of 680mA and a heat dissipation of up to 4.36W. The 1769-L35CR offers a maximum wire insulation of 30V, and it has a backplane current of 680mA (5V DC). It can be mounted easily with a DIN rail mount at 20G operational shock rating or on a panel mount at the same shock rate.
The 1769-L35CR is a Logix controller . Devices can connect to the 1769-L35CR using 1756-CP3 and 1747-CP3 cables through an RS-232 port. The 1769-L35CR must be strategically placed within the 4 power supply modules. It can support up to 30 I/O modules connectable with 2 unique expansion cables to up to 3 I/O banks. The I/O banks of the 1769-L35CR come with a separate power supply and the controller’s uniqueness demands that only 1 1769-L35CR be connected to a Logix system at a time.
|
|
