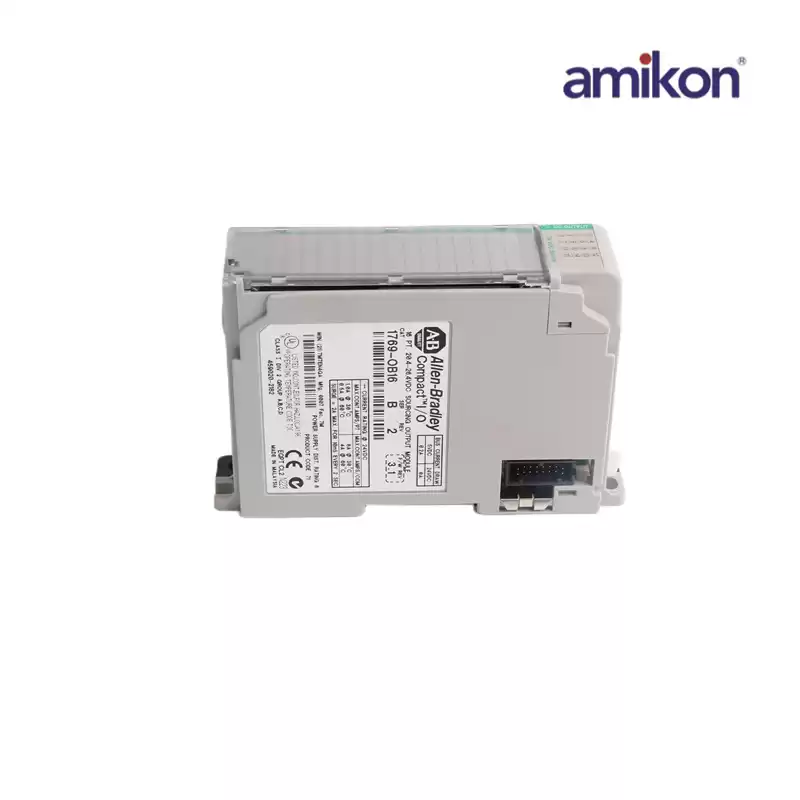

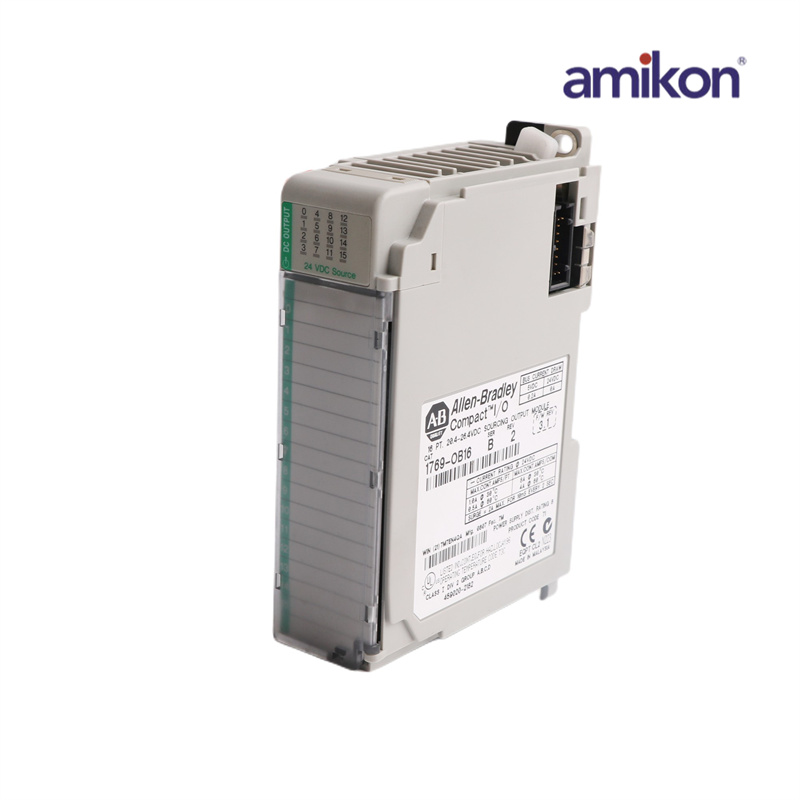

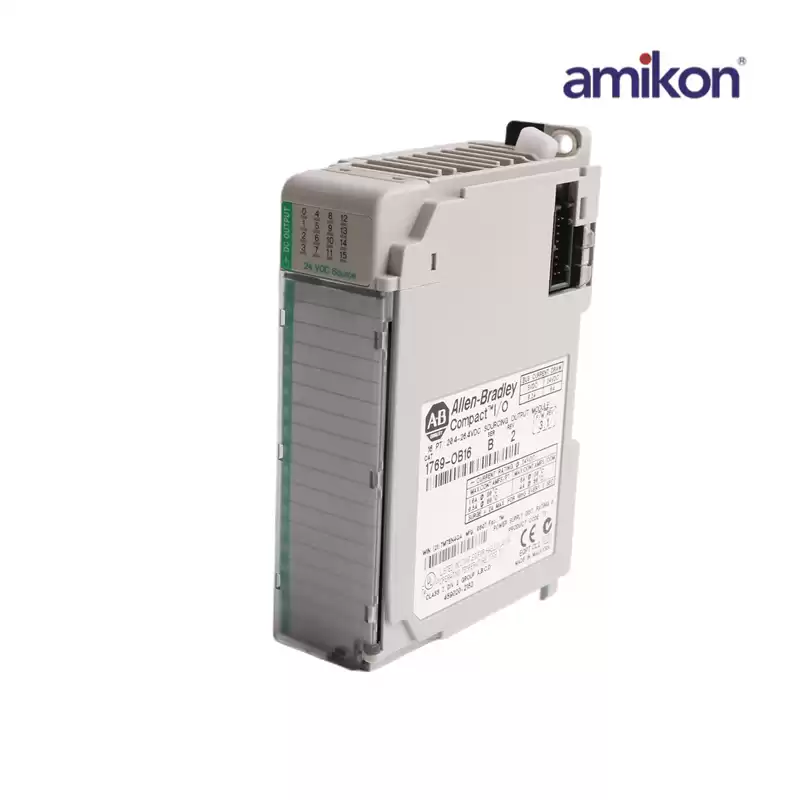

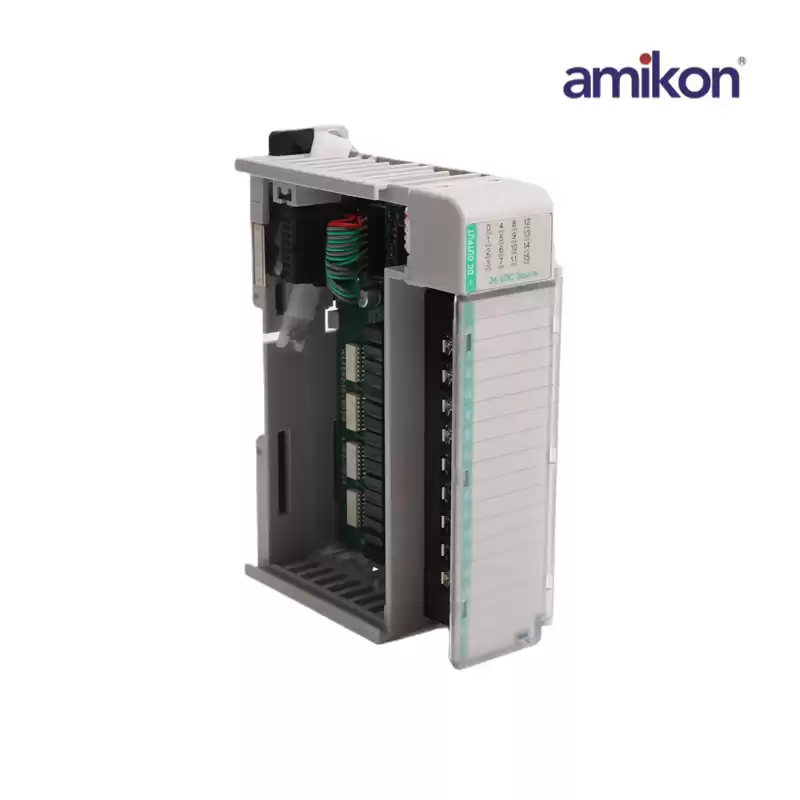

1769-OB16
|
|
Dimensions ：
|
4cmx9cmx13.2cm
|
Weight：
|
0.2KG
|
|
The 1769-OB16 has a 1.0V (max) drop voltage (on-state) at a 1.0mA, and with a 1.0 Ampere at 30 deg. Celsius (86 deg. Fahrenheit) and a 0.5 Ampere at 60 deg. Celsius (140 deg. Fahrenheit) current per point (max). The 1769-OB16 also has an 8.0 A at 30 deg. Celsius (86 deg. Fahrenheit) and a 4.0 A at 60 deg. Celsius (140 deg. Fahrenheit) current per module (max), and a current of 2.0 A for 10ms repeatable every 2 s (surge). It is fitted with IEC Class 2 reinforced insulation, which guards against voltage as high as 75 volts DC. It has 8 modules, a single slot width, and can be mounted on a DIN rail or a panel mount.
|
|
The 1769-OB16 module has dimensions of 4.65 x 1.38 x 3.43 in. (118 x 35 x 87 mm), and a weight of 0.61 lb (280 g).The 1769-OB16 compact solid output module is a device by with 16 outputs alongside a 24-volt DC voltage source. The 1769-OB16 module has a functioning voltage range between 20.4 to 26.4 volts DC, and it has a delay output voltage of 0.1ms and an off-mode delay output of 1.0ms. The 1769-OB16 has a 200mA draw current at 5.1V, and heat dissipation at 2.11Watt.
|
If you have any needs, we can solve your missing parts or exchange them. Welcome to call us for inquiries!
