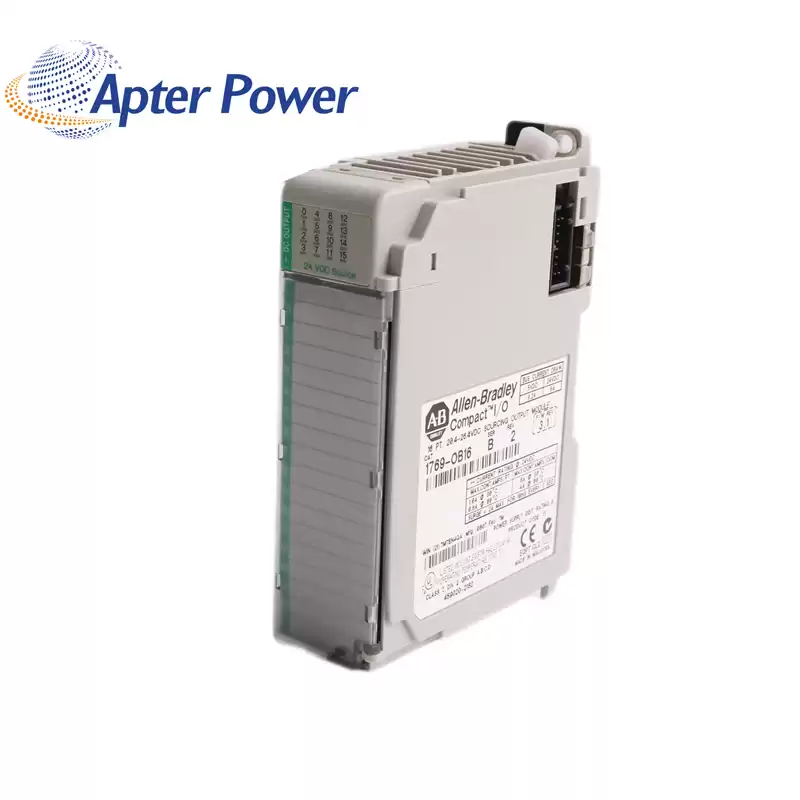

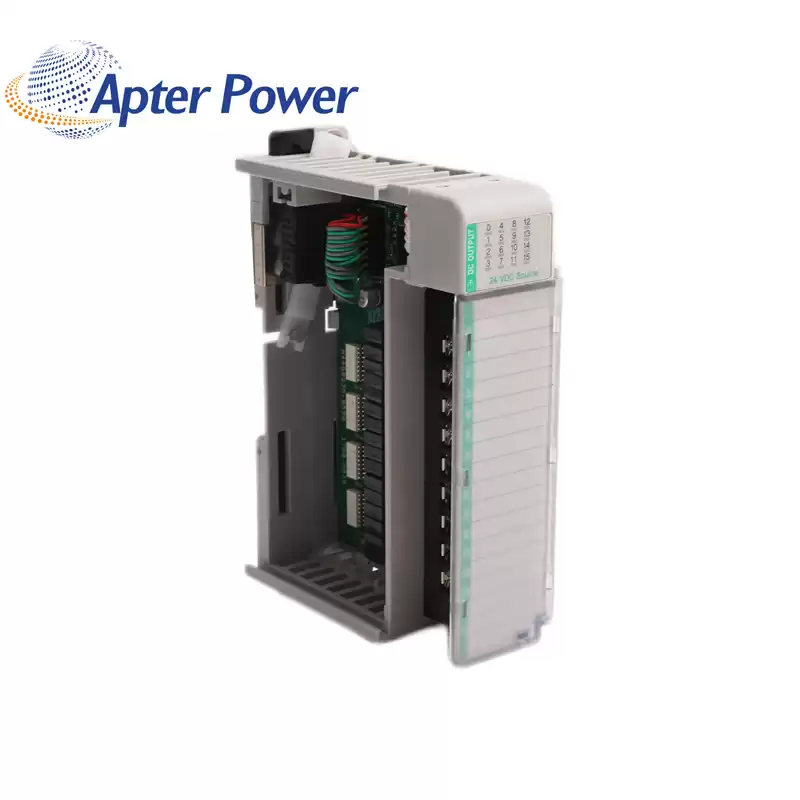

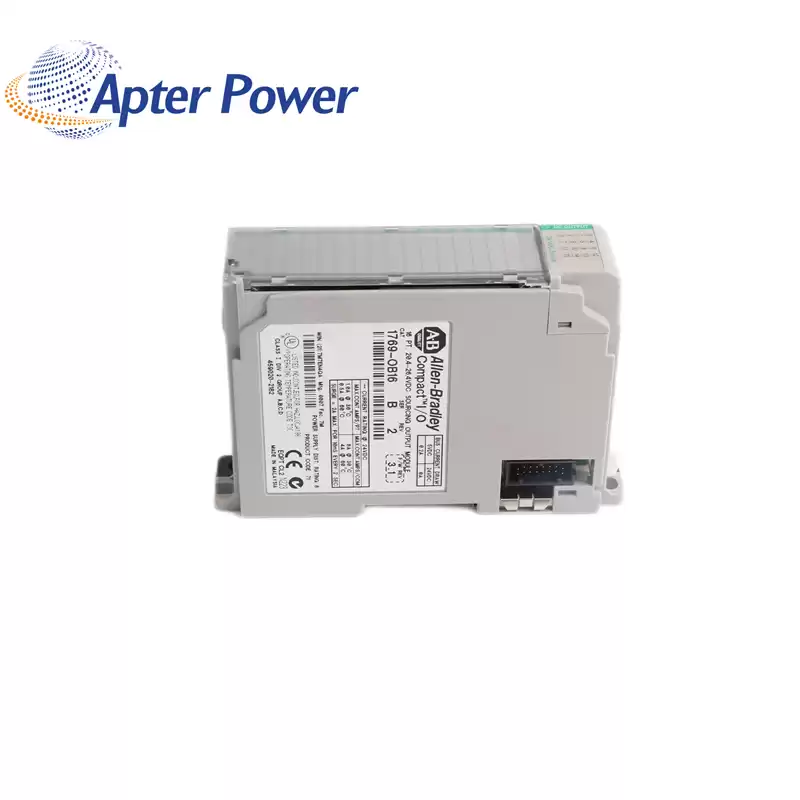

1769-OB16 Digital Output Module

Availability: More than 26 in stock


  • Brand/Manufature
  • Weight0.18KG
  • Dimension4cmx9cmx13.2cm
  • Conditionnew and original
  • Lead Timein stock
  • Certificatecoo/test report/warranty letter

Technical Specifications for 1769-OB16

Manufacturer

Automation


Condition

100% New Original

Brand

Voltage Category

24V DC source

Part Number/Catalog No.

1769-OB16

Power

24 Volts DC

Module Type

Discrete Output Module

Max Current

8A

Manufacture Year

2021

Bus Current draw

200 mA

Product Package

Original Package

UPC

10662468992869


About 1769-OB16

The 1769-OB16 has a 1.0V (max) drop voltage (on-state) at a 1.0mA, and with a 1.0 Ampere at 30 deg. Celsius (86 deg. Fahrenheit) and a 0.5 Ampere at 60 deg. Celsius (140 deg. Fahrenheit) current per point (max). The 1769-OB16 also has an 8.0 A at 30 deg. Celsius (86 deg. Fahrenheit) and a 4.0 A at 60 deg. Celsius (140 deg. Fahrenheit) current per module (max), and a current of 2.0 A for 10ms repeatable every 2 s (surge). It is fitted with IEC Class 2 reinforced insulation, which guards against voltage as high as 75 volts DC. It has 8 modules, a single slot width, and can be mounted on a DIN rail or a panel mount.


The 1769-OB16 module has dimensions of 4.65 x 1.38 x 3.43 in. (118 x 35 x 87 mm), and a weight of 0.61 lb (280 g).The 1769-OB16 compact solid output module is a device by with 16 outputs alongside a 24-volt DC voltage source. The 1769-OB16 module has a functioning voltage range between 20.4 to 26.4 volts DC, and it has a delay output voltage of 0.1ms and an off-mode delay output of 1.0ms. The 1769-OB16 has a 200mA draw current at 5.1V, and heat dissipation at 2.11Watt.


Warranty :       We offer one year warranty for all original new product.


Delivery   :       We will choose the DHL/FEDEX/TNT/UPS


Payment   :      100% advance payment bank wire transfer


Returns    :      If the product has quality problems within one year from the date of receiving the product,  you can send it back to replace.
