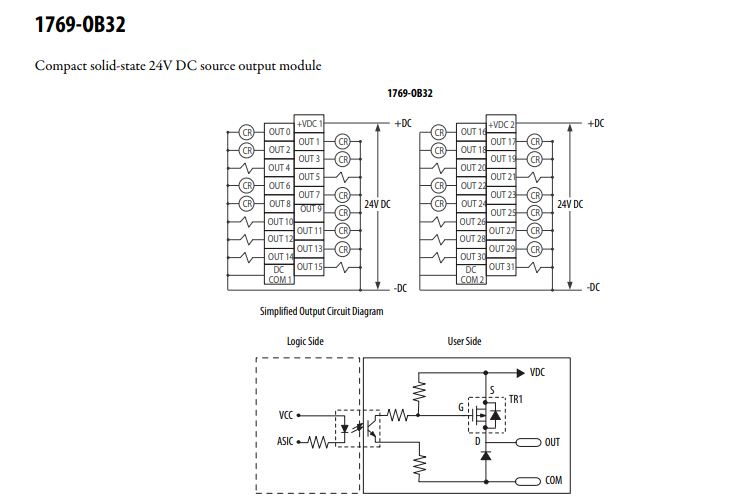

The Allen-Bradley 1769-OB32 compact solid state terminated output module is an output module with a 16-point output, 32 terminations, and a 24V power source. The1769-OB32 has a 20.4-26.4V DC operational range, and an output delay time of 0.5ms (on-mode) or 4ms (off-mode). It is adapted with a 3000mA draw current at 5.1V and a maximum heat dissipation at 4.5W. The 1769-OB32 module is adapted with a maximum off-state leakage current of 1.0 mA at 26.4V and a minimum on-state current of 1.0mA.
It also has an on-state maximum voltage drop of 1.0V DC at 1 A and a maximum current per point of 0.5 A at 60 °C (140 °F), and 1.0 A at 30 °C (86 °F). The 1769-OB32 has a 2.0 A for 10ms surge current, which repeats every 2 seconds. It has a single slot width and is normally mounted on a panel mount or a DIN rail. The module comes with an approximate weight of 450 g (0.992 lb) and in a 118 x 52.5 x 87 mm (4.65 x 2.07 x 3.43 in.) length by breadth by height dimension. It has unique IEC Class 2 reinforced insulation and a 6-module power supply distance. The 1769-OB32 module has a terminal torque screw of 0.68 Nm, a copper wire with 22 by 14 AWG solid wire size, or a 22 by 16 AWG stranded wire size.
|
Attribute
|
|
1769-OB32
|
|
|
|
|
|
Outputs
|
|
32 (16 points/group)
|
|
|
|
|
|
Voltage category
|
|
24V DC source
|
|
|
|
|
|
Operating voltage range
|
|
20.4…26.4V DC
|
|
|
|
|
|
Output delay, on
|
|
0.1 ms
|
|
|
|
|
|
Output delay, off
|
|
1.0 ms
|
|
|
|
|
|
Current draw @ 5.1V
|
|
300 mA
|
Allen Bradley 1769-OB32
1769-OB32 | Allen Bradley | Compact 32-point Solid-state 24V dc Source Output Module
Email:sales3@amikon.cn
|
Part Number:
|
1769-OB32
|
|
Product Line:
|
ControlLogix
|
|
Module Type:
|
DC Output Module
|
|
Input Type:
|
Digital Output
|
|
Outputs:
|
32 Point
|
