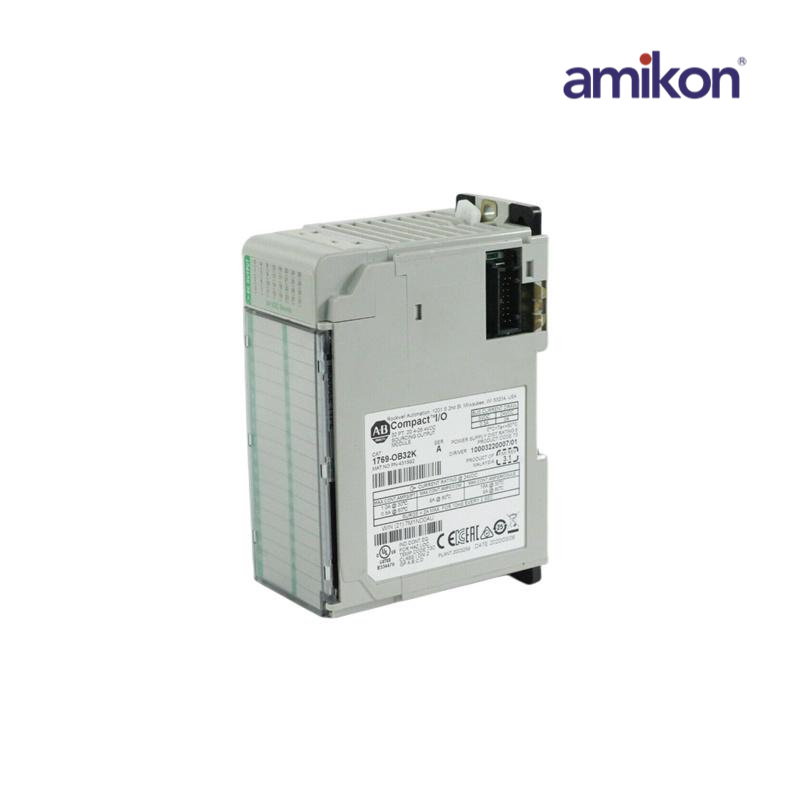

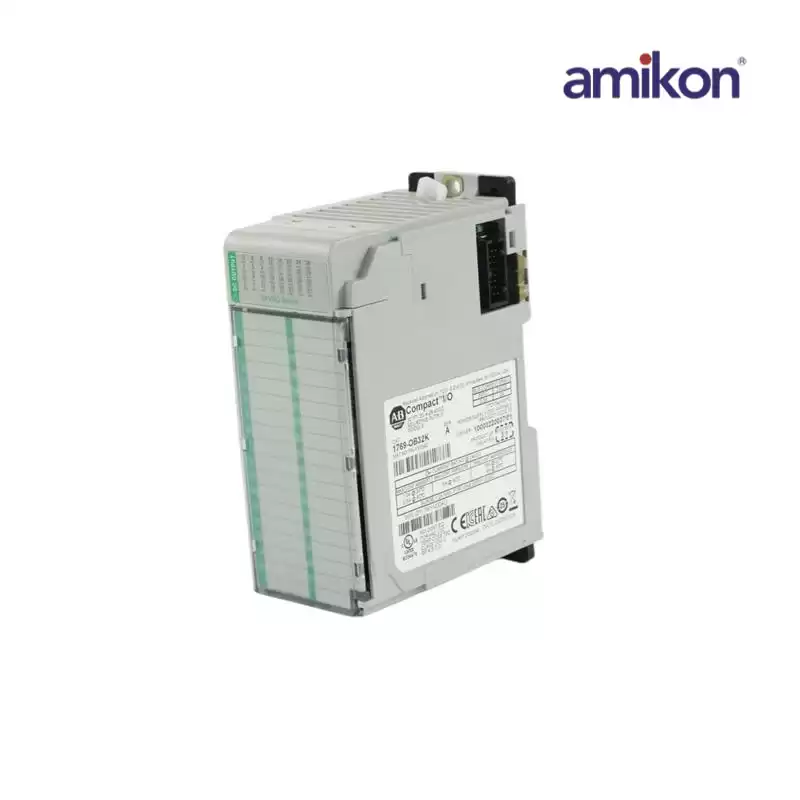

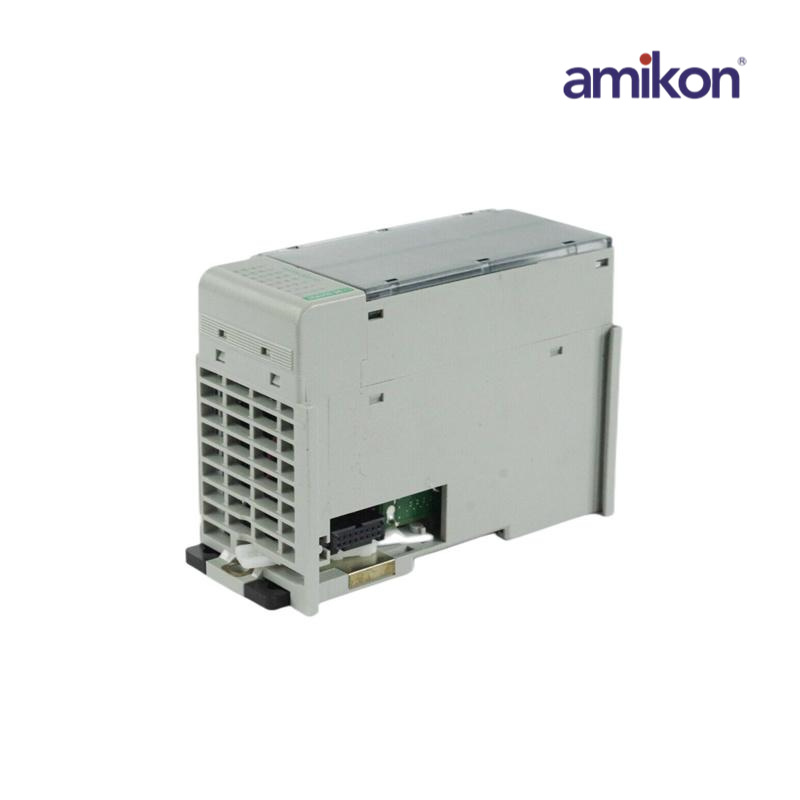

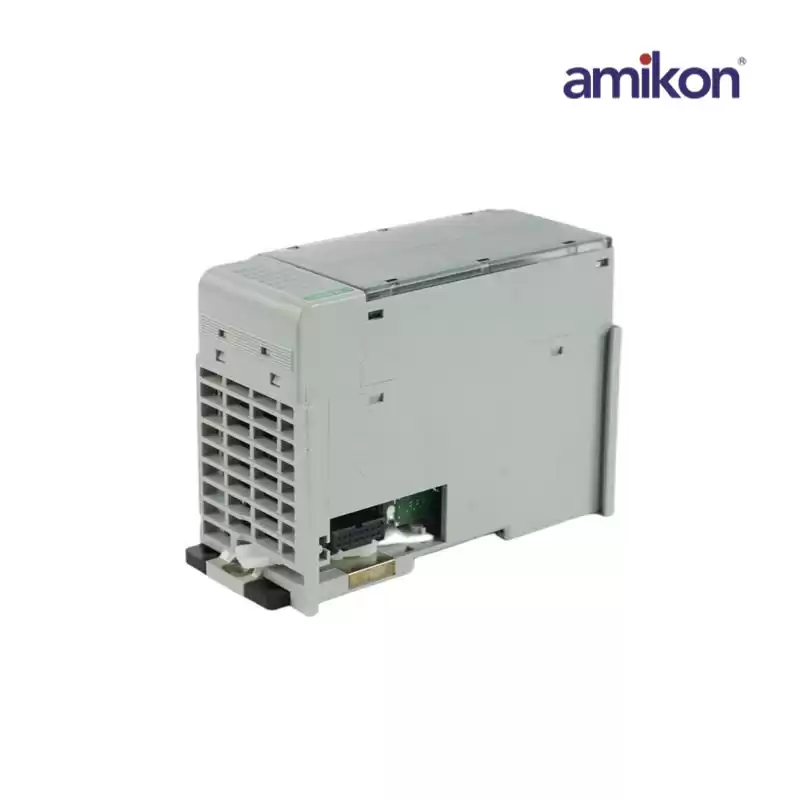

1769-OB32
|
|
Dimensions ：
|
13.2cmx2.5cmx14cm
|
Weight：
|
0.13KG
|
|
The 1769-OB32 has a 20.4 to 26.4 Volts DC operational voltage range, and an output delay time of 0.5 milliseconds (on-mode) or 4 milliseconds (off-mode). It has a 3000 mA current draw at 5.1 Volts and a maximum heat dissipation of 4.5 Watts.
The 1769-OB32 is a high-density module that is equipped with Thirty-Two (32) output channels, isolated in Two (2) groups of Sixteen (16) channels. This module is practical for use in applications where a large number of I/Os are existing, with limited panel space.The 1769-OB32 module has a terminal torque screw of 0.68 N-m, a copper wire with 22 by 14 AWG solid wire size, or a 22 by 16 AWG stranded wire size.
|
|
