1769-OF2 | Allen Bradley | Analog Output Module

1769-OF2  CompactLogix 2 Pt A/O C and V Module



Allen  Bradley   1769-OF2  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)

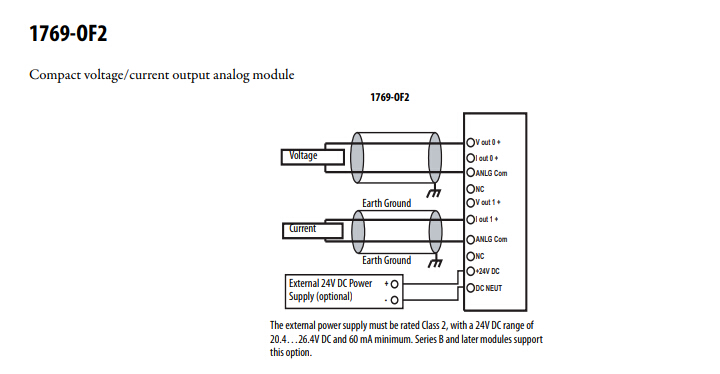

The 1769-OF2 compact voltage/current output module is an output module by Allen-Bradley with 2 single-ended output modules. It has a full voltage range of 0 to 10.5V with an output of 0 to 10V. It is a 14-bit unipolar/bipolar resolution output module with a draw current of 120mA @ 5.1V. The 1769-OF2 current output module has aDelta/Sigma converter type and a 2.63W heat. It has a 2.5ms conversion rate on all channels and a 63% step response @ 2.93ms.




The 1769-OF2 has a current load of 10mA and a restive load on-current output of 0 - 500Ω (inclusive of wire resistance). It has a load-on voltage output range greater 1 kΩ at 10V DC and an inductive load per current output of 0.1 mH. The 1769-OF2 has a capacitive load per output voltage of 1 μF. It requires no field calibration and an accuracy margin of ±0.5% (Voltage full range @ 25 °C (77 °F)), and a ±0.35% (Current full range @ 25 ° C (77 °F)). The 1769-OF2 compact voltage/current output module has a module error boundary around 0.8%, and an accuracy drift of ±0.0086% per °C.








Attribute 1769-OF2
Outputs 2 single-ended
Output range ±10V
0…10V
0…5V
1…5V
0…20 mA
4…20 mA
Current draw @ 5.1V  120 mA
Current draw @  24V 120 mA
Converter type  Delta Sigma






Allen  Bradley  1769-OF2


1769-OF2 | Allen Bradley | Analog Output Module





Email:sales3@amikon.cn




  Part Number:   1769-OF2
  Product Line:   CompactLogix
  Module Type:   Analog Output Module

  Input Type:

  Analog Output

  Communication Cable :

  2 Point
