Technical Specifications for 1769-OF4CI
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Solid Wire Size
|
22 to 14 AWG
|
|
Part Number/Catalog No.
|
1769-OF4CI
|
Conversion rate
|
110 ms
|
|
Module Type
|
Analog Output Module
|
Isolation Voltage
|
50 Volts
|
|
Manufacture Year
|
2021
|
Stranded Wire Size
|
22 to 16 AWG
|
|
Product Package
|
Original Package
|
UPC
|
10781180908658
|
About 1769-OF4CI
|

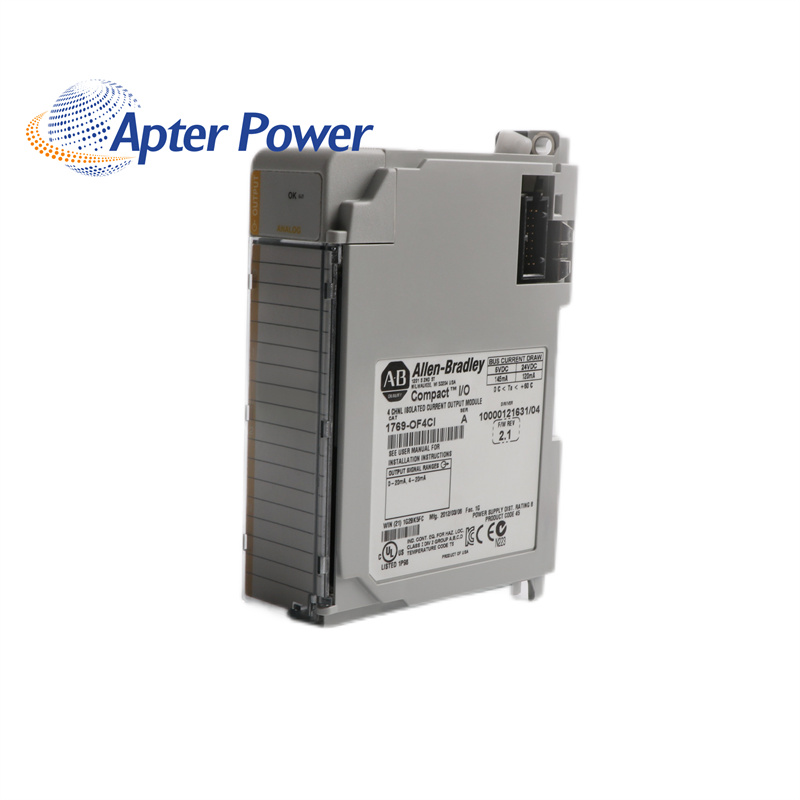

The 1769-OF4CI is a Four (4) channel analog current isolated output module classified under the CompactLogix series manufactured by . The 1769-OF4CI features 16-bit resolution and supports the Belden 8761 shielded compact analog module cable.
The 1769-OF4CI features 330 µ V per bit 0 to 20mA with a 5 Volt DC 165 mA bus current. This unit also features a heat dissipation of 2.0 Watts. It features a conversion rate of 110 milliseconds and a limited voltage per current ratio that is greater than 2.9 milliseconds. The module comes with a resistive load of 0 to 500 Ohms and has an output inductive load rated at 0.1 mH.
The 1769-OF4CI comes with electrostatic discharge that can damage integrated circuits or semiconductors. Therefore, when touching the unit, touch a grounded object so as to discharge the static potential. Avoid touching the bus connector or the connector pins and use a static-safe workstation if available. While not in use, the 1769-OF4CI should be kept in the static shield box.The 1769-OF4CI comes with an accuracy of +/-0.35% with an accuracy drift with respect to the temperature of +/-0.0058% FS per degree Celsius.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
