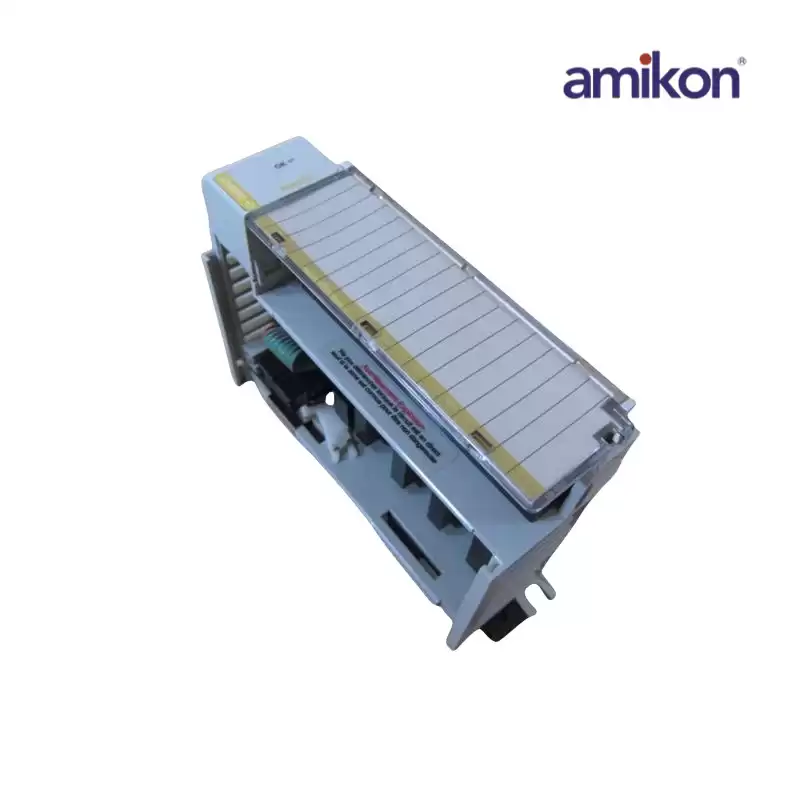

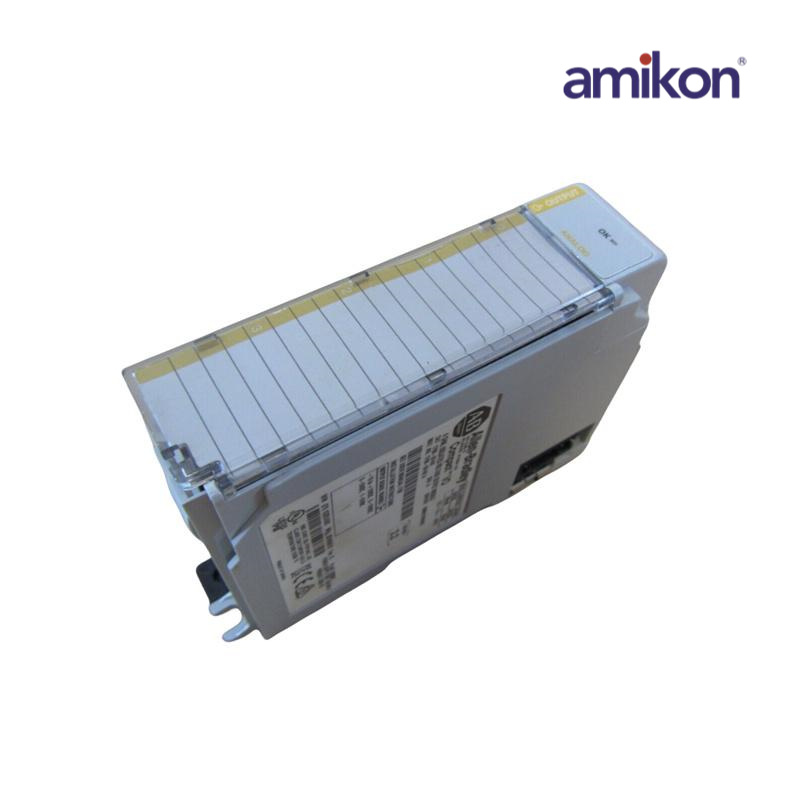

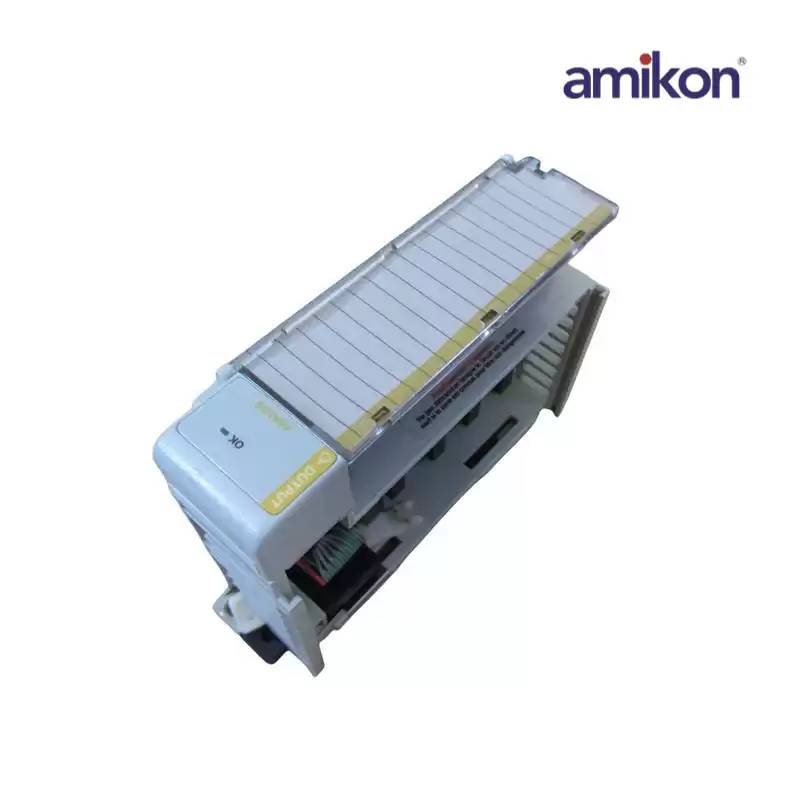

1769-OF4VI
|
|
Dimensions ：
|
40cmx25.5cmx7.2cm
|
Weight：
|
2.9KG
|
|
The 769-OF4VI is protected from short-circuiting and can sustain a maximum short-circuit current of 42mA. It has a power-up response time of less than 0.4ms and it can power down at less than 21ms.The 769-OF4VI has a 120ms maximum conversion rate and a 2.9ms limited voltage per current.
The 769-OF4VI has a maximum output current load of 5mA at a resistive load range of less than or equal to 2 kΩ.The 769-OF4VI is a compact voltage output isolated module with four individually-isolated outputs. It has a voltage range between 0 to 10V, with a full-scale range of 0 to 10.5, and a 15bit 330 μV/bit resolution.
|
|
