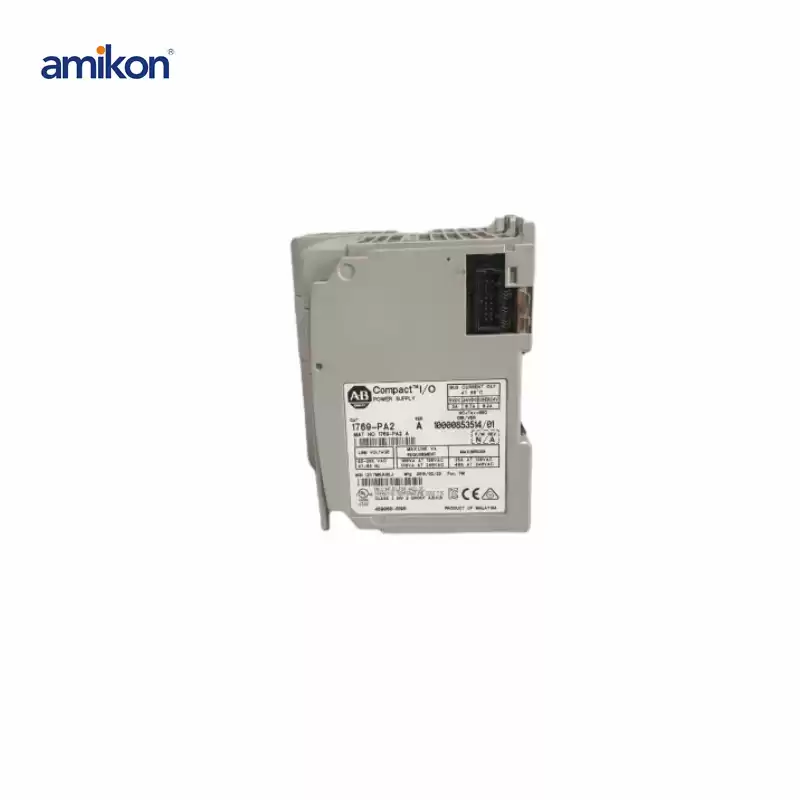

1769-PA2 I/O Module Power Supply
Product Description
The "1769-PA2" is a power supply module from specifically part of their series of programmable logic controllers (PLCs). Here's a detailed look at what the 1769-PA2 module is and its key features:
1. **Module Type**: The 1769-PA2 is a compact power supply module designed to provide DC power to the system.
2. **Power Rating**: It typically provides 24V DC power to the chassis and its modules. The exact current rating and capacity depend on the specific model and configuration.
3. ** Compatibility**: The 1769-PA2 module is part of the 1769 series, which is designed for use with PLCs. It mounts directly onto the chassis, providing a convenient and integrated power solution.
4. **Applications**: The 1769-PA2 power supply module is used in various industrial automation applications where PLCs are employed. These applications include manufacturing, process control, packaging, and other industries requiring robust and reliable control systems.
5. **Features**: Depending on the specific model and revision, the 1769-PA2 module may include features such as diagnostic LEDs for status indication, overcurrent protection, and other protective mechanisms to safeguard the PLC system from power-related issues
Contact Information!
Discuss pricing and delivery time with a sales representative
Whatsapp:+86 189 6519 6563
sales17@amikon.cn
SKYPE:+86-189 6519 6563
General Specifications
|
Attribute
|
Product Model
|
|
1769-PA2
|
|
Line voltage
|
85...132/170...265V ac 47...63 Hz
|
|
Typical line power
|
135VA
|
|
Inrush current, max
|
20 A
|
|
Internal current capacity
|
2 A at 5V dc 0.46 A at 24V dc
|
|
24V dc user-power current capacity
|
200 mA
|
|
Temperature, ambient operating
|
0...60 °C (32...140 °F)
|
|
CPU hold-up time
|
20 ms (full load) 3000 ms (no load)
|
