Technical Specifications for 1771-DB
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Wiring Arm
|
1.3-5 ms
|
|
Part Number/Catalog No.
|
1769-IQ32
|
Voltage Rating
|
24 Volts DC Sink/Source
|
|
Module Type
|
Communication Module
|
Coating
|
Conformal Coat
|
|
Manufacture Year
|
2021
|
Storage Temperature
|
-40-85 oC
|
|
Product Package
|
Original Package
|
UPC
|
10612598001641
|
About 1769-IQ32
|

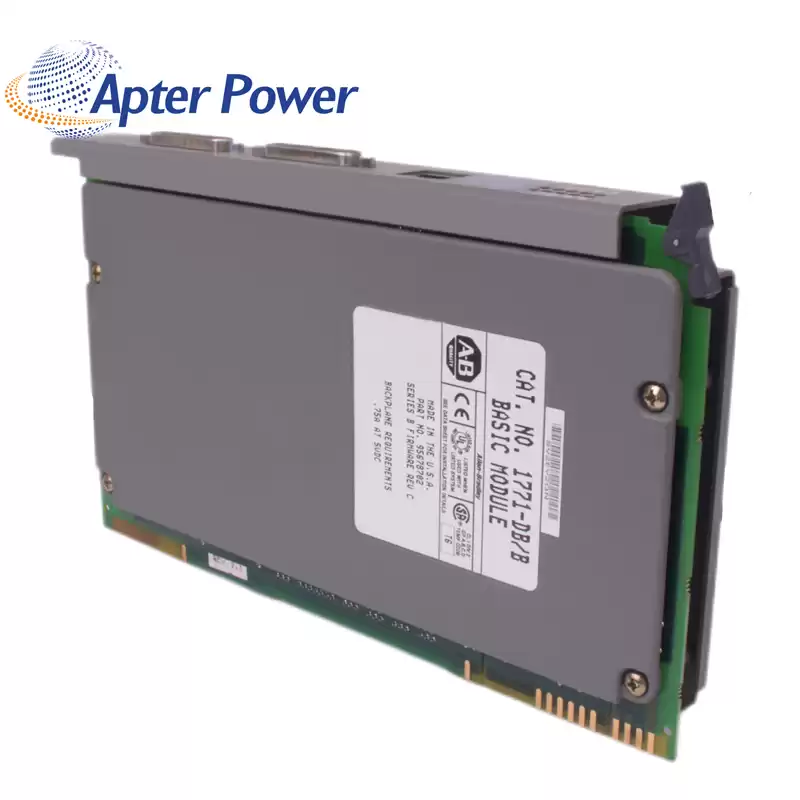

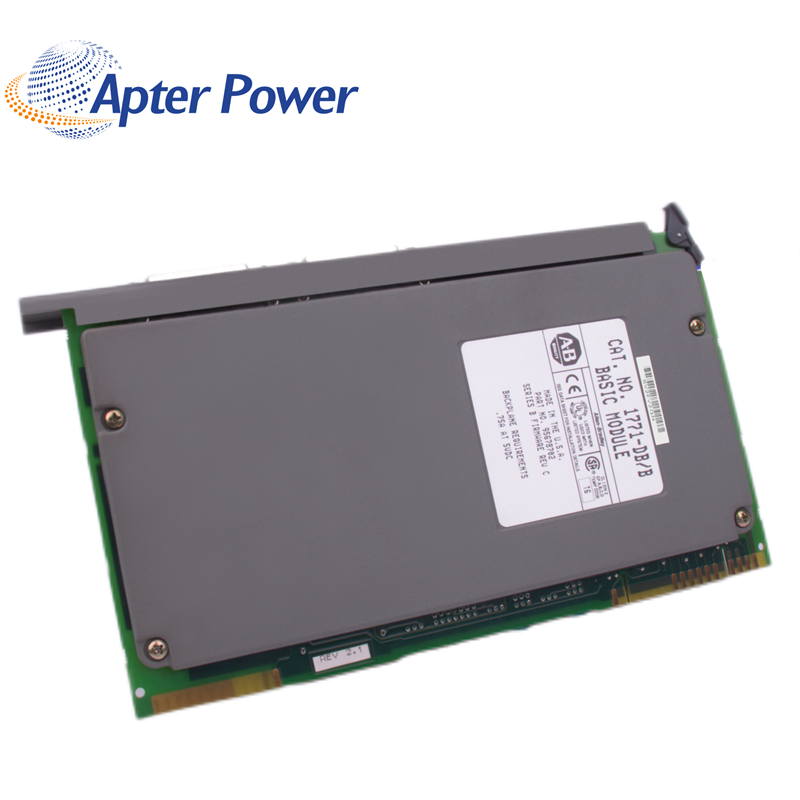

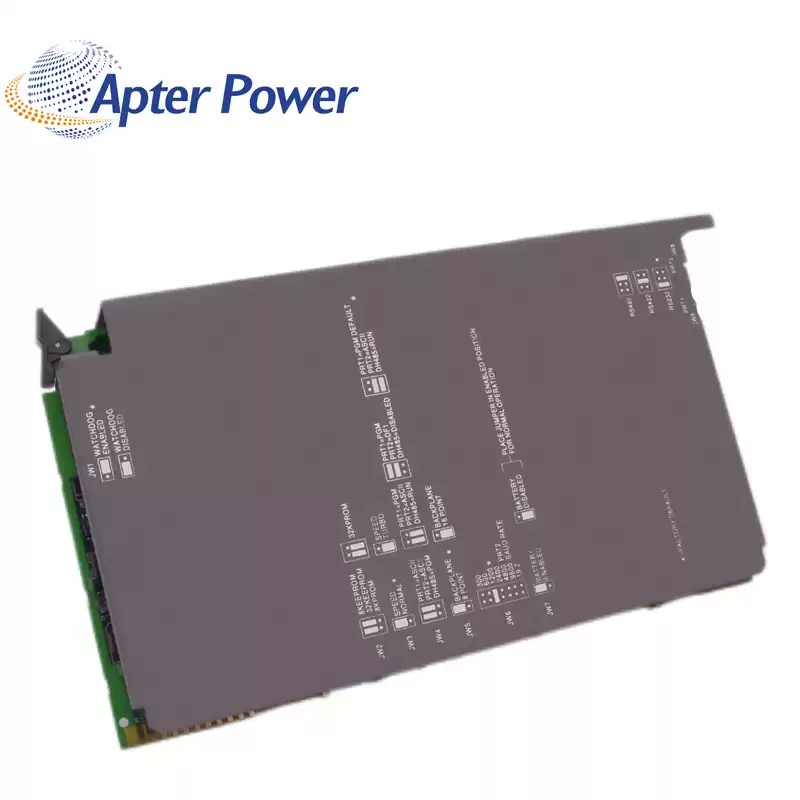

The 1771-DB module has an isolation voltage of 500V DC from port-to-port and port-to-backplane. It has a 32 KB battery-backed RAM and 24 KB available user memory. It has a communication rate ranging from 300 – 19.2 Kbps. It has a backplane current load of 0.75A with a DH-485 interface connected to a DH-485 port and one of 0.65A without a device connected to the DH-485 port.
The 1771-DB has a time-of-day clock with a 10ms resolution and a maximum power dissipation of 4W. For installation, it takes one slot in the I/O chassis and supports BASIC and C programming languages. It requires 2 ports for RS-232, RS-422, or RS-485 connections and 1 port for DH-485 connections.
The 1771-DB module supports BASIC statements and commands and its additional 128 calls. It has a Block-transfer capability which allows complete data transfer between the processor’s data table and the module’s memory, thus minimizing user programming. The 1771-DB has 8 defined and 2 user-defined indicators for troubleshooting and indicators.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
