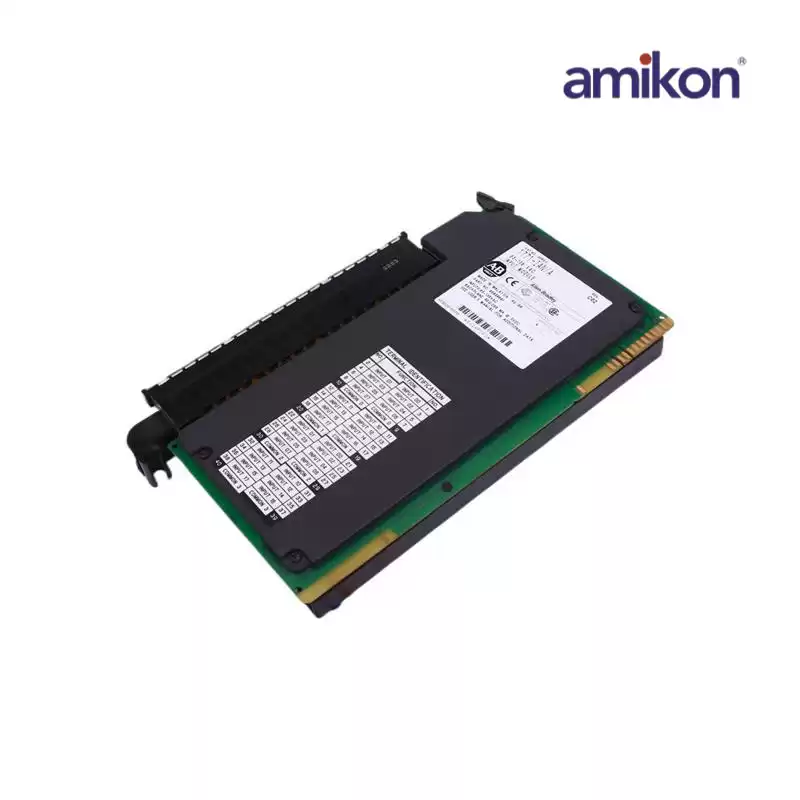

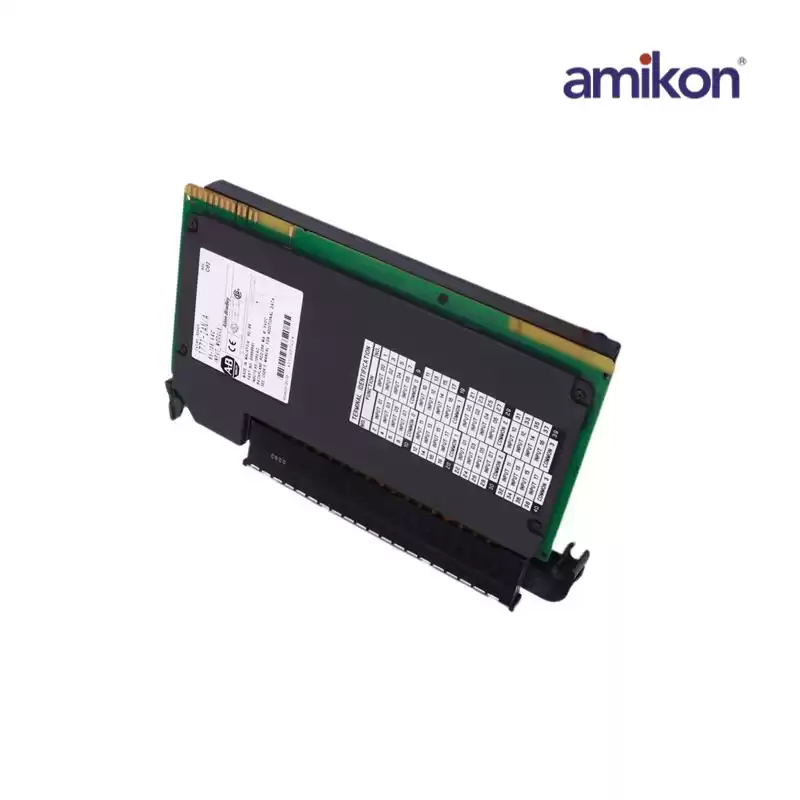

1771-IAN
|
|
Dimensions ：
|
2.5cmx25.2cmx15.2cm
|
Weight：
|
0.5KG
|
|
The 1771-IAN module has 32 (4 sets of 8) inputs with a 120V AC/DC voltage category. It has an operating voltage range of 85 - 138V AC. It has a typical signal delay of 10ms (±7) at on-AC state and 20ms (±15) at off-AC state. It has a maximum off-state current of 2.3mA at 60Hz and 1.9mA at 50Hz and a backplane current load of 280mA.
The 1771-IAN is a PLC 5 Digital AC/DC Input Module. It converts AC signals provided by user devices to the logic level needed by the processor. It directly controls the state of corresponding bits in the PLC data table. It contains various input devices such as pushbuttons, limit switches, pilot lights, motor starters, and annunciators to interface with on/off sensors and actuators.
|
|
