Technical Specifications for 1771-IB
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
74 Miliamperes
|
|
Part Number/Catalog No.
|
1771-IB
|
Humidity
|
0 to 95%
|
|
Module Type
|
DC Input Module
|
Input Voltage
|
10-27 Volts
|
|
Manufacture Year
|
2022
|
Input Power
|
12 Volts DC
|
|
Product Package
|
Original Package
|
UPC
|
10612268001409
|

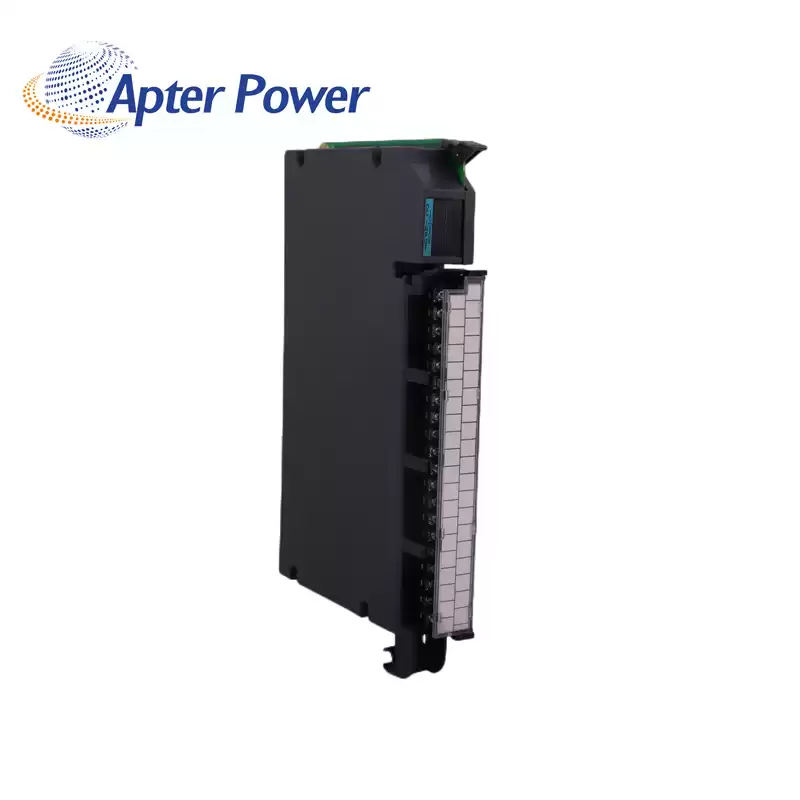

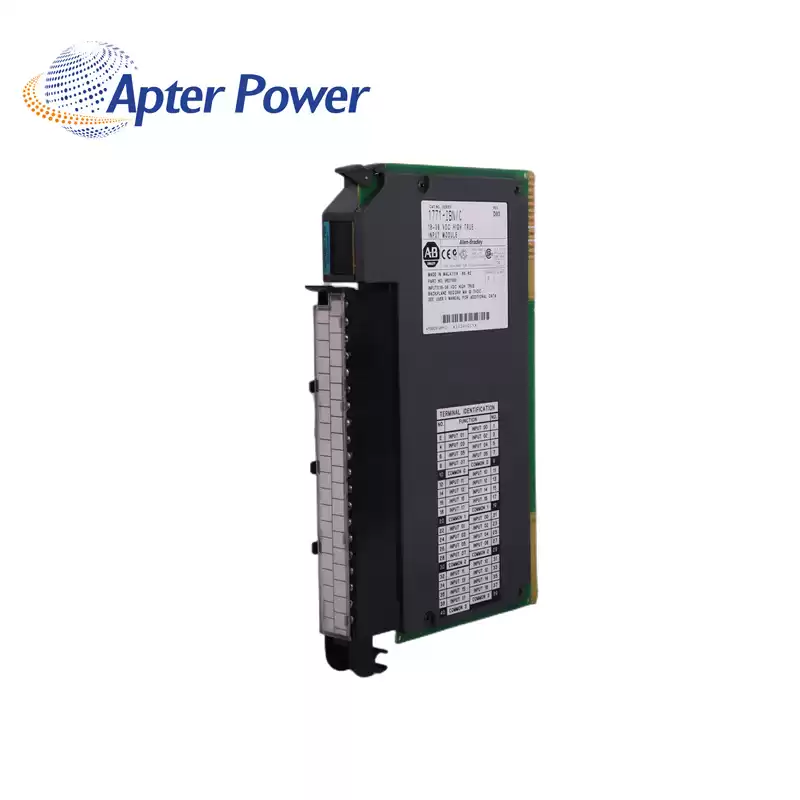

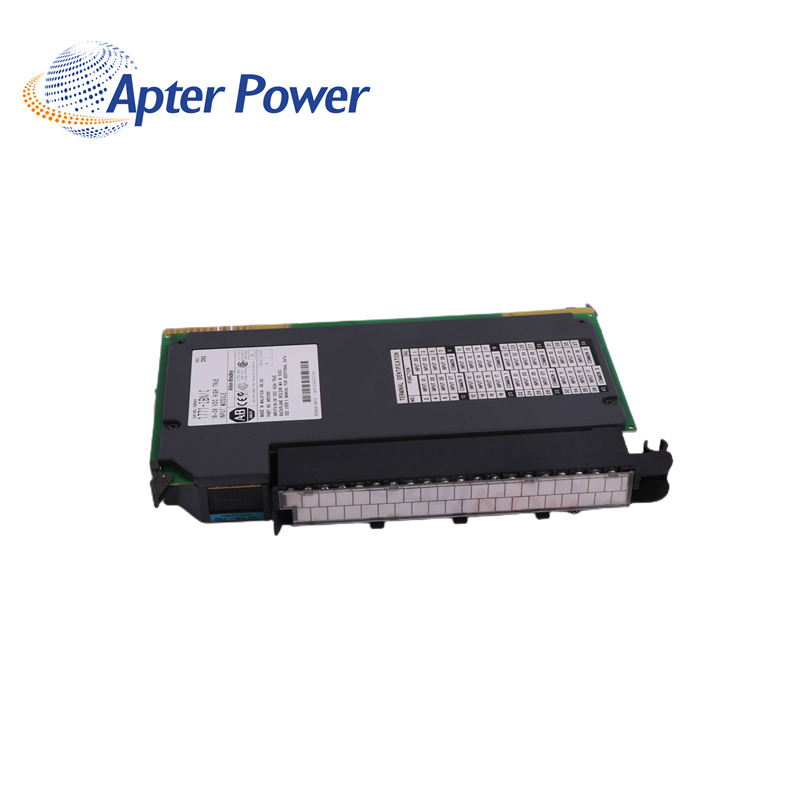

About 1771-IB
|
The 1771-IB module has 8 inputs with a 10 – 60V DC Sink (Source load) voltage category. It has an operating voltage range of 10 - 27V DC. It has a typical signal delay of 12ms (±7) at On-DC state and 20ms (±7) at Off-DC state. It has a maximum Off-state current of 3mA and a backplane current load of 74mA. It has a maximum power dissipation of 5.7W and thermal dissipation of 19.3 BTU/hr.
It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are found between pins 14 and 16 for the upper connector and between pins 4 and 6 for the lower connector.The 1771-IB is a PLC 5 Digital DC Input Module. It converts DC signals provided by user devices to the logic level needed by the processor. It controls the state of corresponding bits in the PLC data table.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
