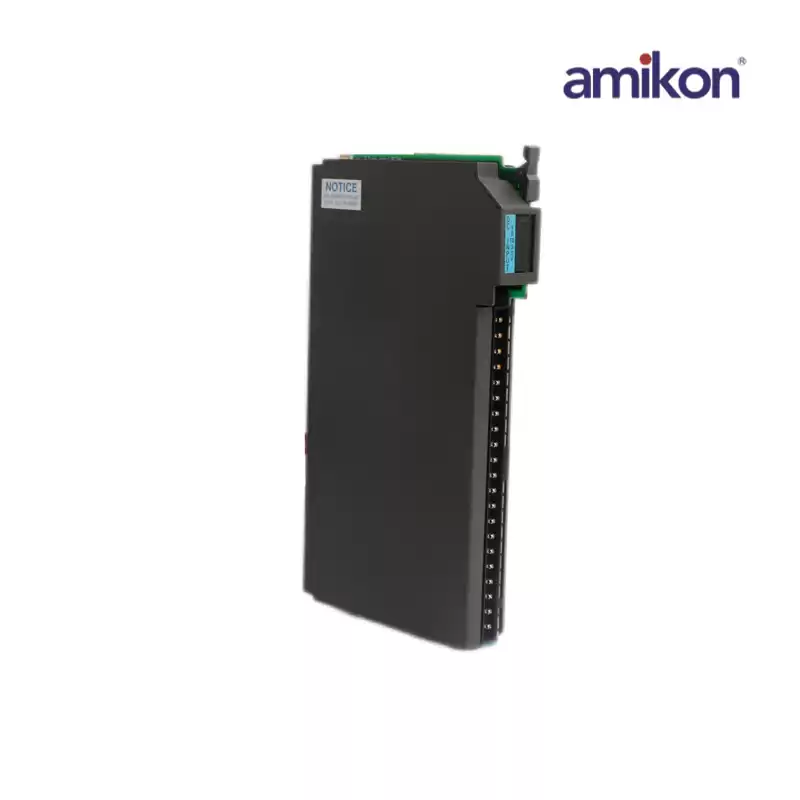

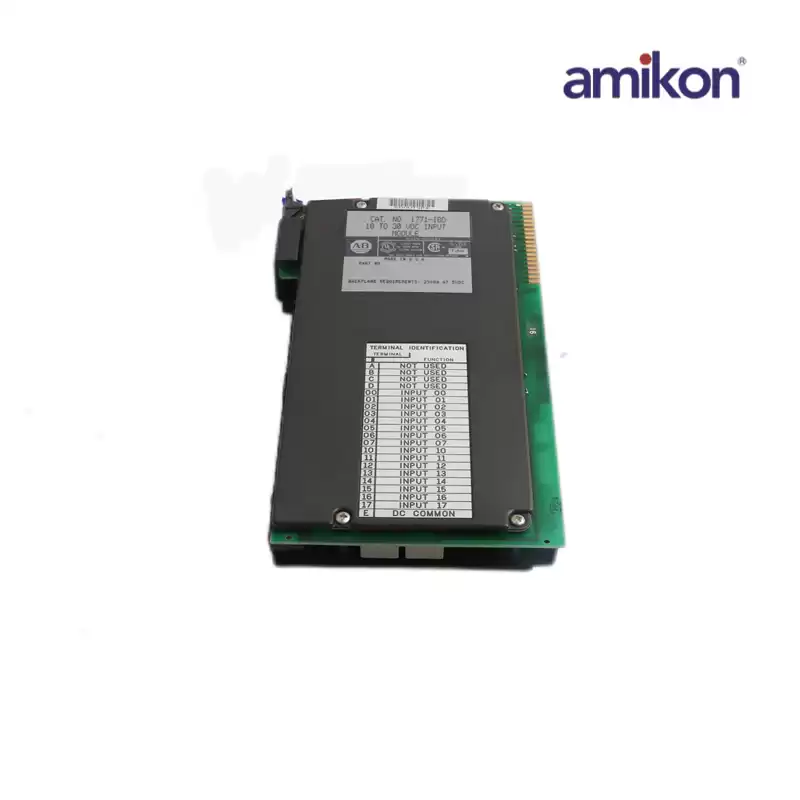

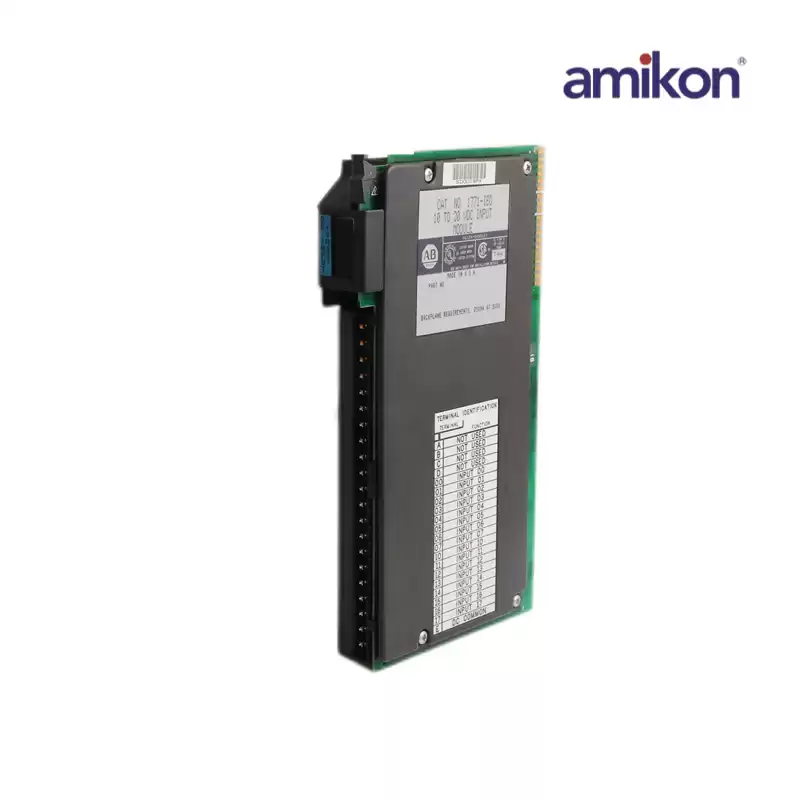

1771-IBD
|
|
Dimensions ：
|
3cmx15.5cmx25.5cm
|
Weight：
|
0.66KG
|
|
The 1771-IBD requires a minimum input current of 4.5mA at 10VDC and 15mA at 30VDC while the Minimum Off-state Current of 2.0mA @ 5VDC. It has an input signal delay of 1ms for low to high signal transition and 1ms or 6ms for High to low signal transition as well. It has a rated power dissipation of 7.3 Watts (max.), 1.0 Watts (min.)and Thermal dissipation of 24.7 BTU/hr (max.), 3.4 BTU/hr (min.).
The 1771-IBD comes with Eighteen (18) LED status indicators that provides information regarding the module status and the signal status present at each input channel of the module. It also comes with a Field Wiring Arm with compatible replacement part number of 1771-WH. Field Wiring Arms are used to provide modular wiring method as they can be removed from the module when terminating signals. Additionally, they contribute to ease of maintenance as they can be removed and installed to compatible modules without the need of disconnecting the attached wires.
|
|
