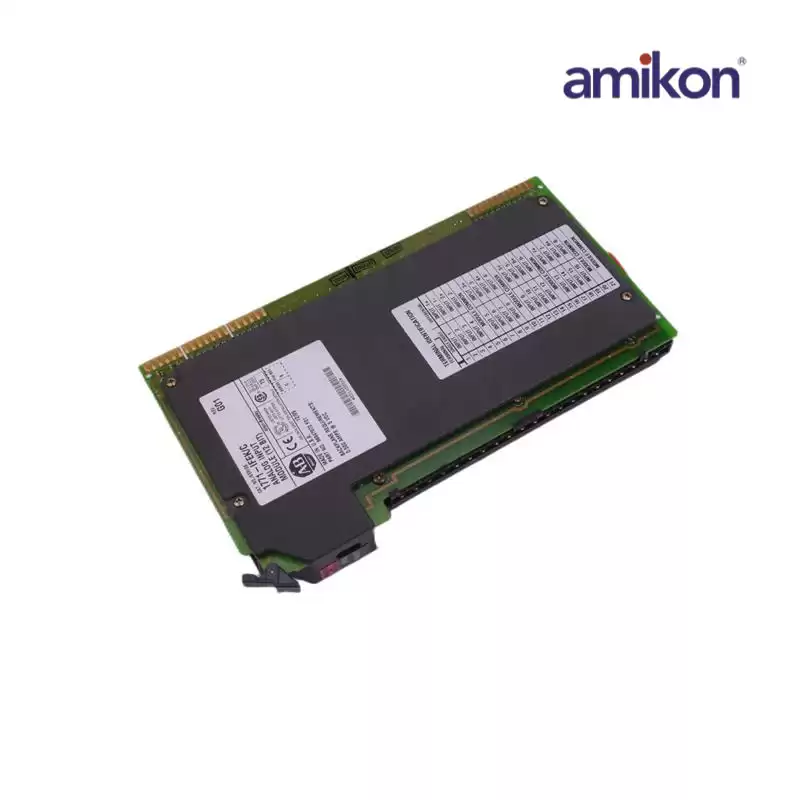

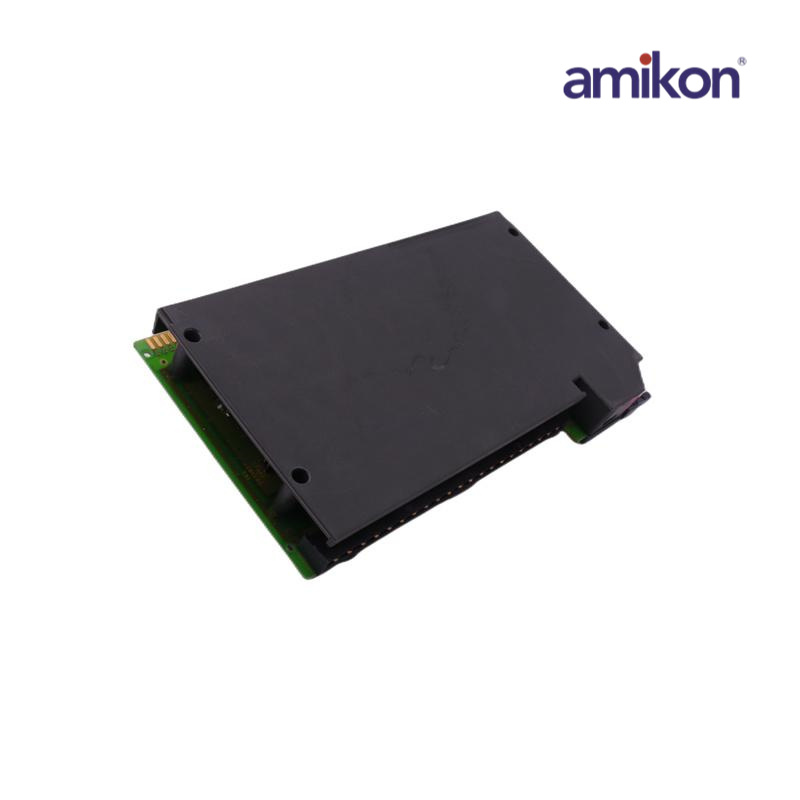

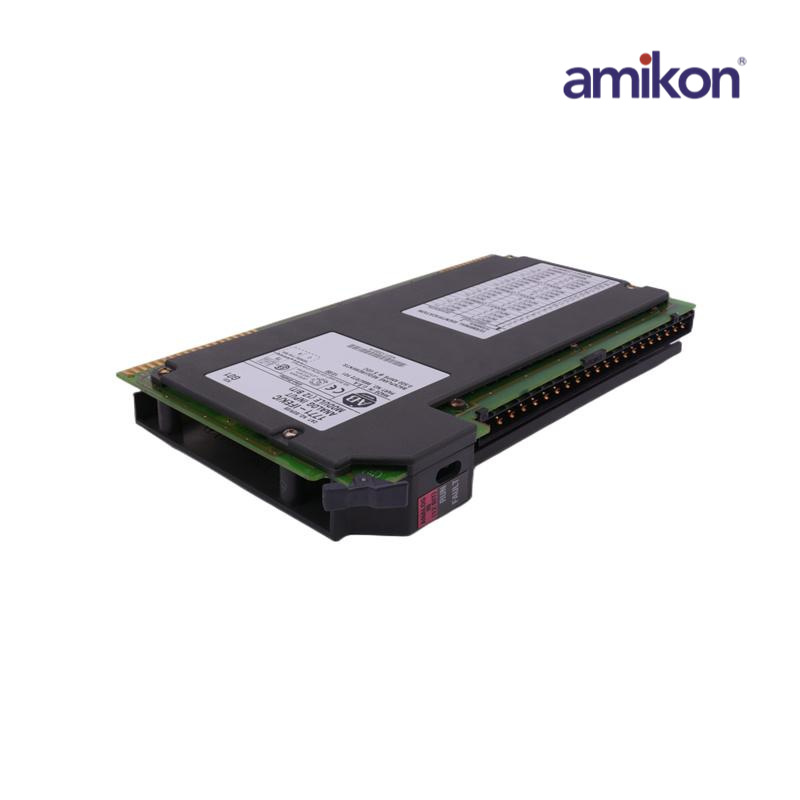

1771-IFEK
|
|
Dimensions ：
|
7.6cmx27.9cmx17.8cm
|
Weight：
|
1.2KG
|
|
The 1171-IFEK module has up to 16 single-ended inputs or 8 differential inputs which it converts to a proportional 4-digit BCD or 12-bit binary value. It has five voltages and three current input ranges for the users to select. Voltage input ranges are 1 – 5V DC, 0 – 5V DC, -5-5V DC, -10-10V DC, and 0 – 10V DC. Current Input ranges are 4 – 20mA, 0 – 20Ma, and -20 - +20mA.
The 1171-IFEK module has selectable real-time sampling, data format, and scaling to engineering units features. It contains a green RUN and a red FAULT indicator on the front panel for power and fault status. The 1171-IFEK has optoelectrical isolation and digital filtering features to reduce the electrical noise.
|
|
