1771-IFM/AB IN STOCK& READY FOR SHIP
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Brand Name AB
Product reference 1771-IFM
EMC Directive
This product is tested to meet Council Directive 89/336/EEC
Electromagnetic Compatibility (EMC) and the following standards,
in whole or in part, documented in a technical construction file:
• EN 50081-2EMC – Generic Emission Standard,
Part 2 – Industrial Environment
• EN 50082-2EMC – Generic Immunity Standard,
Part 2 – Industrial Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC
Low Voltage, by applying the safety requirements of EN 61131–2
Programmable Controllers, Part 2 – Equipment Requirements and
Tests.

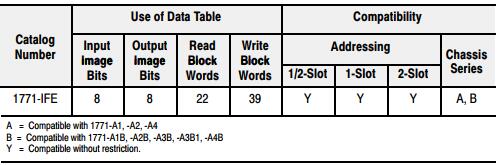

The 1771-IFE module can be used with any 1771 I/O chassis.
Compatibility and data table use is listed below.
Do not use this module with cat. no. 1771-AL PLC-2/20 or 2/30
Local Adapter.
The module receives its power through the 1771 I/O power supply
and requires 500mA from the backplane.
Add this current to the requirements of all other modules in the I/O
chassis to prevent overloading the chassis backplane and/or
backplane power supply.

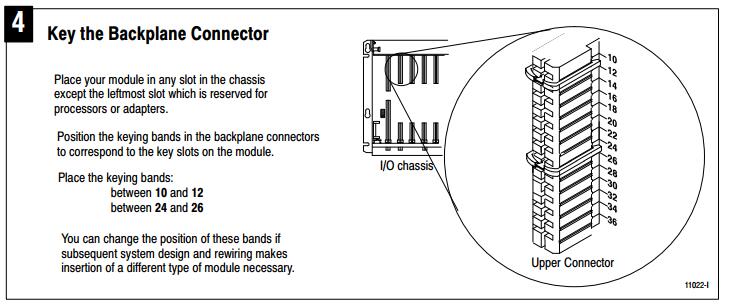

Place your module in any I/O module slot of the I/O chassis except
for the extreme left slot. This slot is reserved for PC processors or
adapter modules.
Group your modules to minimize adverse affects from radiated
electrical noise and heat. We recommend the following.
• Group analog input and low voltage dc modules away from ac
modules or high voltage dc modules to minimize electrical noise
interference.
• Do not place this module in the same I/O group with a discrete
high-density I/O module when using 2-slot addressing. This
module uses a byte in both the input and output image tables for
block transfer.

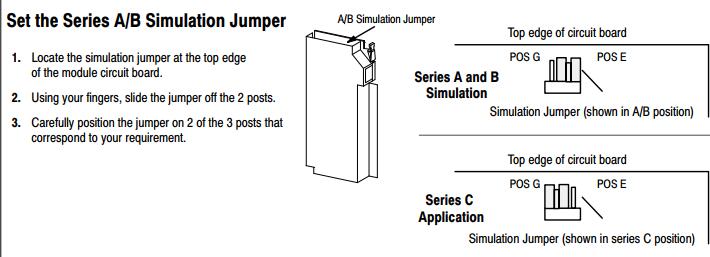

The module is shipped with the A/B simulation jumper set in
position POS G for Series C applications. This setting returns input
data above and below the range end points. If you are replacing a
Series A or B 1771-IFE module with this module, reset the
simulation jumper to the POS E position as shown below.

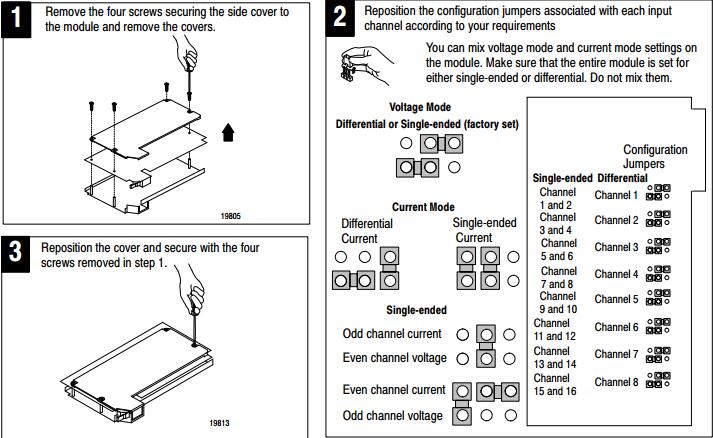

The module has configuration jumpers for determining the input type
(voltage or current) desired for each input. The module is shipped
with the configuration jumpers positioned for voltage mode and
the A/B simulation jumper set for Series C. If you are replacing a
Series A or B 1771-IFE module with this module, reset the
simulation jumper as shown above.
You can select either voltage or current for each input, but all inputs
must be either single-ended or differential. Do not mix single-ended
and differential inputs on the module.
