Technical Specifications for 1771-IG
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
122 Miliamperes
|
|
Part Number/Catalog No.
|
1771-IG
|
Output Resolution
|
0-25 Miliamperes
|
|
Module Type
|
Digital Input Module
|
Input Voltage
|
5.0-5.3 Volts
|
|
Manufacture Year
|
2021
|
Number of Inputs
|
8
|
|
Product Package
|
Original Package
|
UPC
|
10612598002310
|

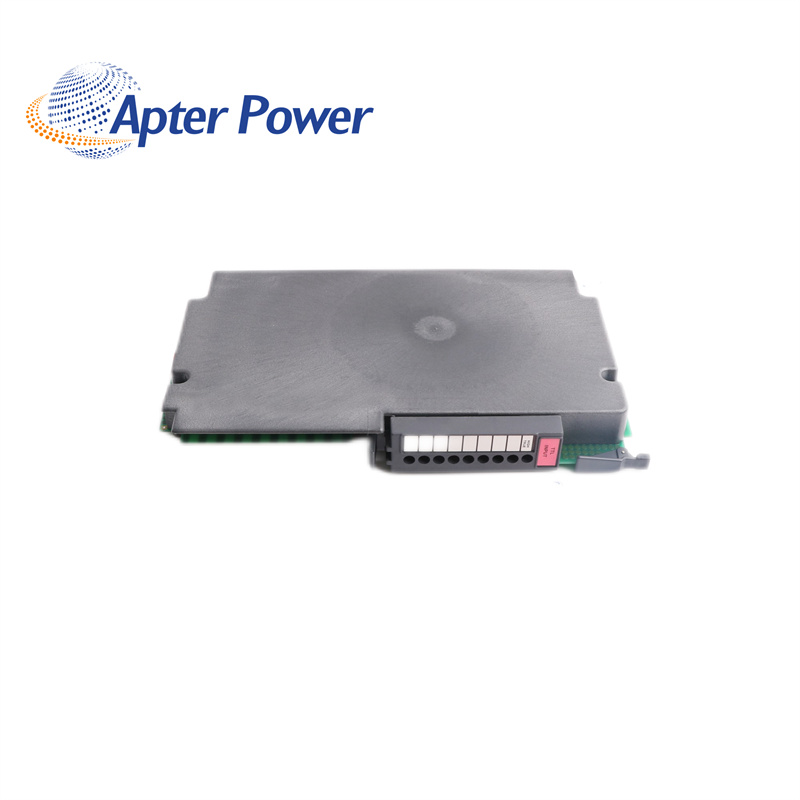

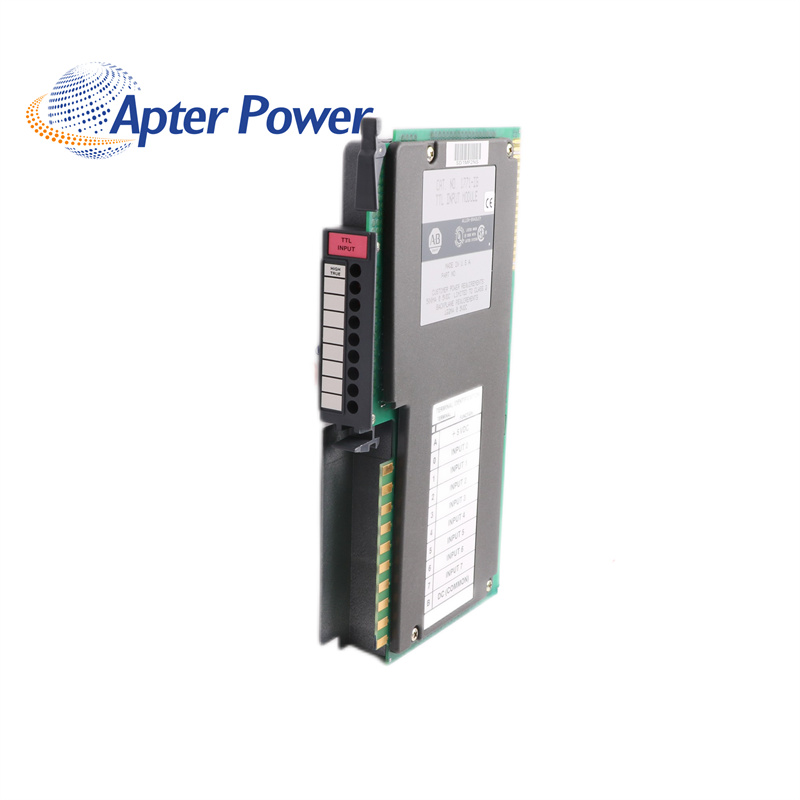

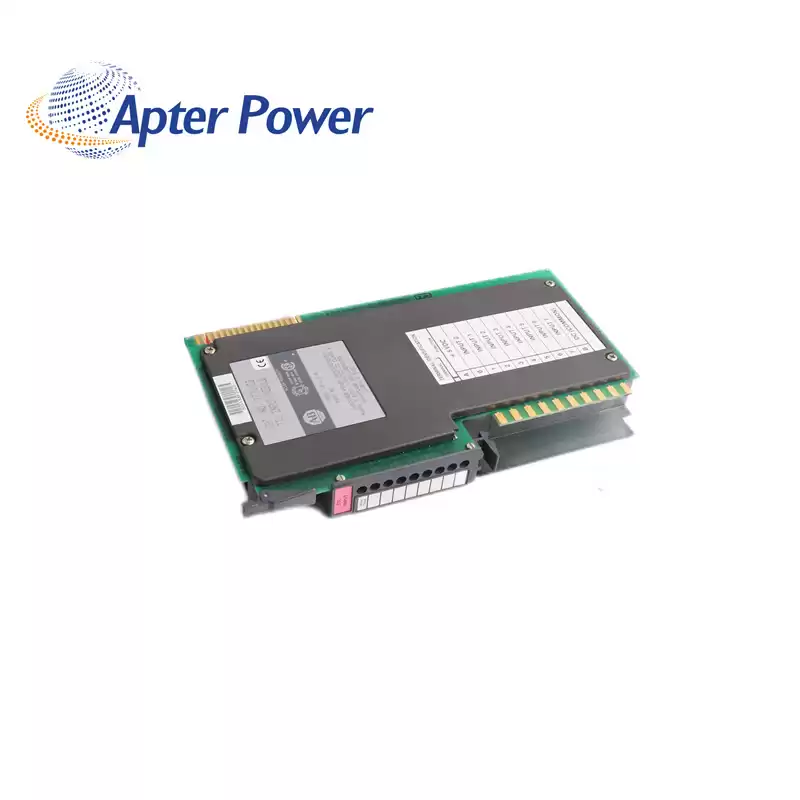

About 1771-IG
|
The 1771-IG module has 8 inputs with 5V DC TTL voltage category. It has an operating voltage range of 5.0 – 5.3V DC and is TTL-compatible. It has an input signal delay of less than 1ms. It has a maximum customer supply current per module of 500mA and a backplane current load of 122mA. It has a maximum power dissipation of 3.3W and a maximum thermal dissipation of 11.3 BTU/hr. It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are between pins 34 and 36 for the upper connector and pins 4 and 6 for the lower connector.
The 1771-IG is a PLC 5 Digital DC Input Module. It converts DC signals provided by user devices to the logic level needed by the processor. It controls the corresponding bits state in PLC data table. It provides a modular design with space-saving and pocket-friendly means to add input to a PLC control system. It has a 1771-WC wiring arm for replacing the module, eliminating the need for disconnecting the wiring.
|
