Technical Specifications for 1771-IK
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Outputs
|
5 Volts DC
|
|
Part Number/Catalog No.
|
1771-IK
|
Backplane Current
|
1.2 Amperes
|
|
Module Type
|
Positioning I/O Modules
|
Model Status
|
Earlier Model
|
|
Manufacture Year
|
2021
|
Input Frequency
|
50 Kilohertz
|
|
Product Package
|
Original Package
|
UPC
|
10659598001641
|

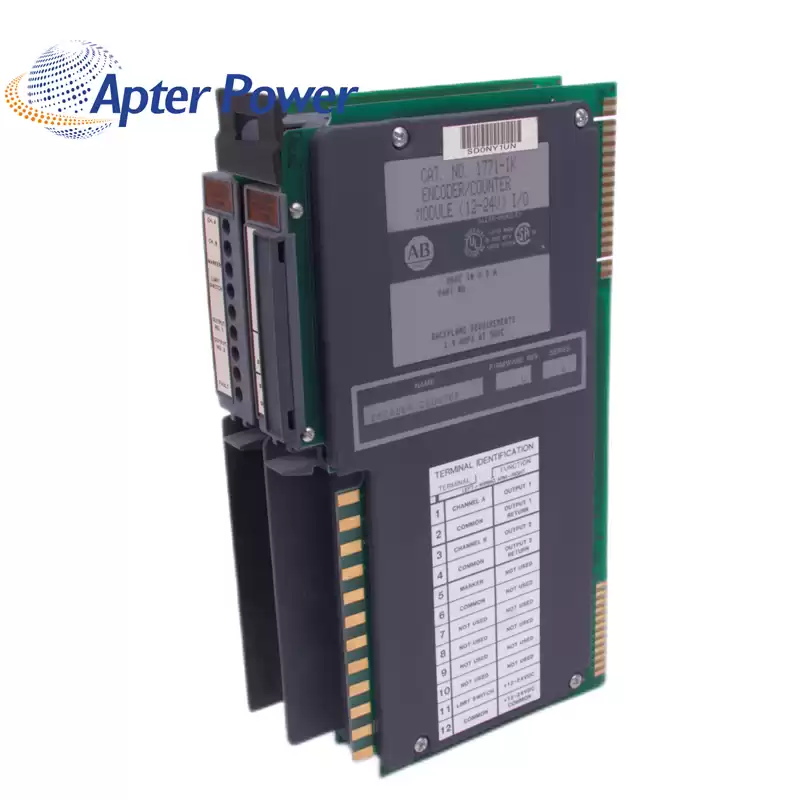

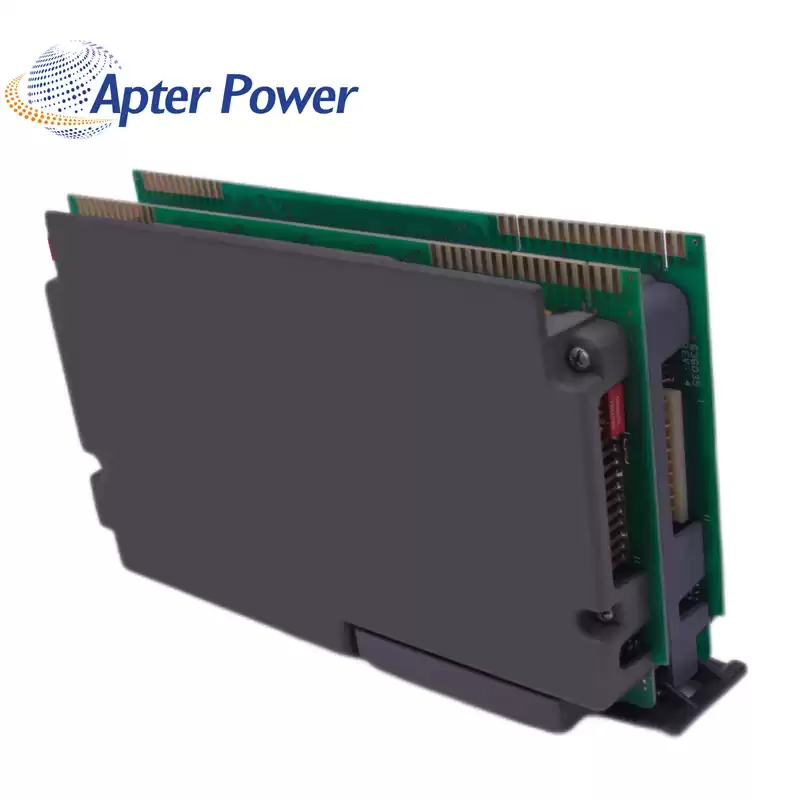

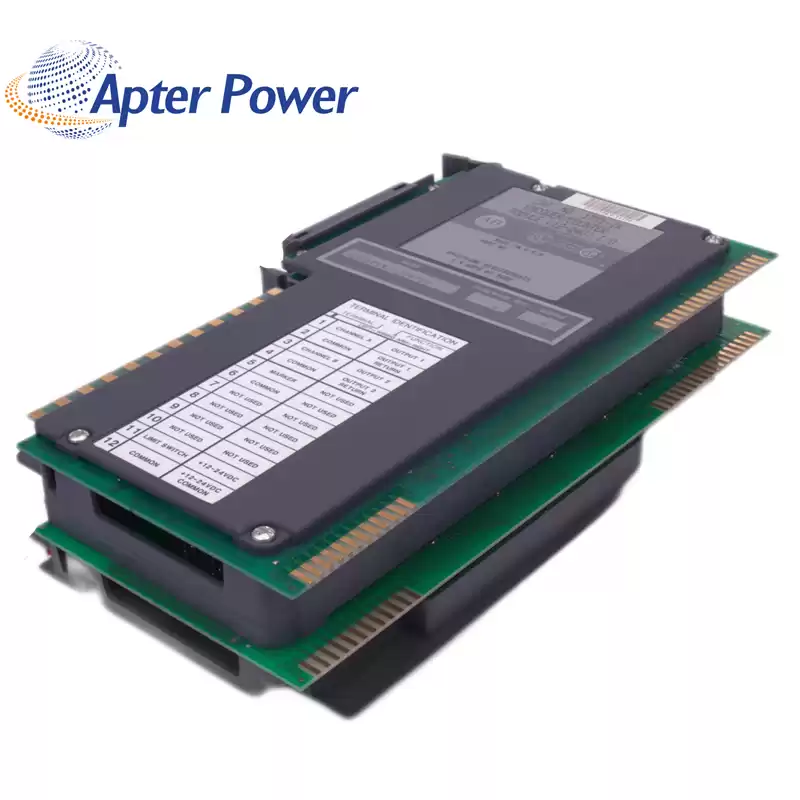

About 1771-IK
|
The 1771-IK module is a counter and encoder module for PLC-5 systems. The module supports 1 counter. The encoder supports dual channels and the counter supports 1 channel. The supported peak input pulse rate is 50 kilohertz. The 1771-IK module supports both the block transfer and single transfer modes. The module requires an external power supply rated for 12 to 24 Volts DC. The input circuits require a maximum current rating of 170 milliamps and the output circuits require a maximum current of 1.08 Amps.
The device driving the input terminal must be capable of sinking 10 milliamps of current for a 12 Volts DC external power supply. The device driving the input terminal must be capable of sinking 20 milliamps of current for a 24 Volts DC external power supply.The maximum power dissipation for the 1771-IK module is 12.1 Watts. The thermal dissipation for the module is 41.3 BTU per hour. The module is installed in an empty slot on an 1771 chassis.
|
