1771-IK
|
|
Dimensions ：
|
7cmx27cmx15.2cm
|
Weight：
|
0.6KG
|
|

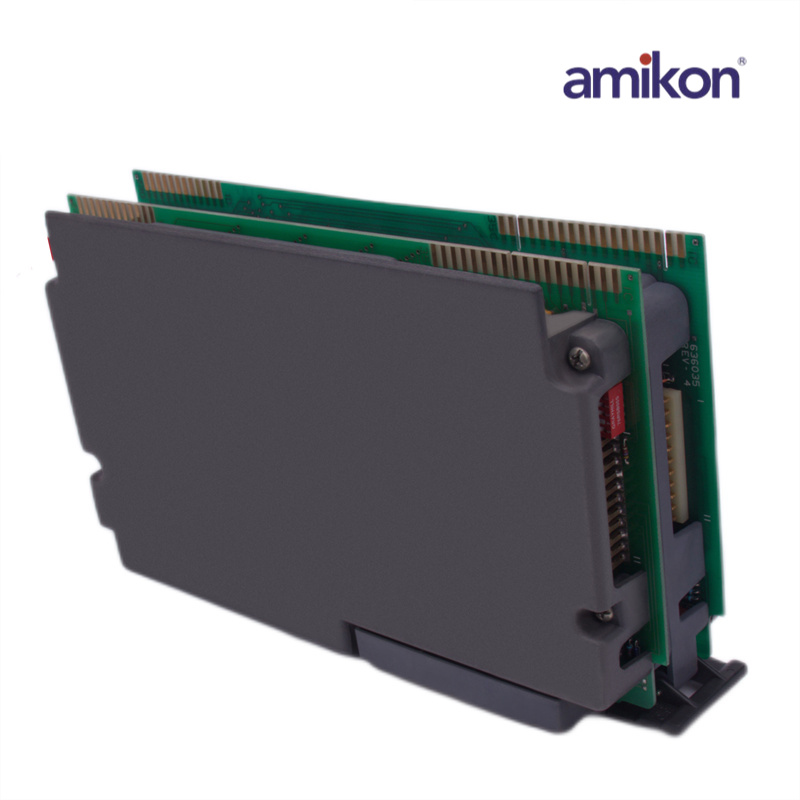

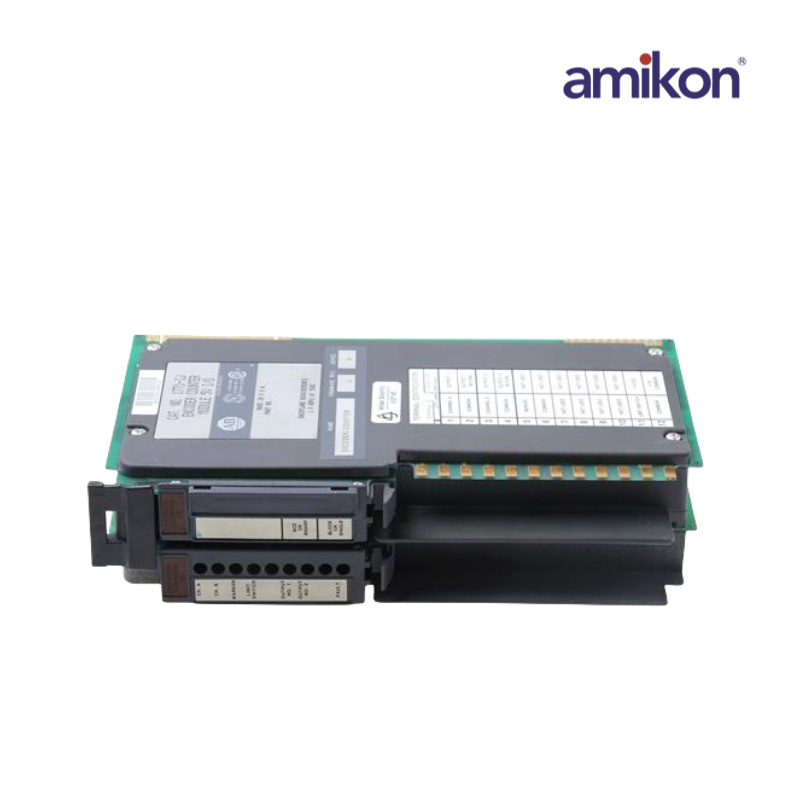

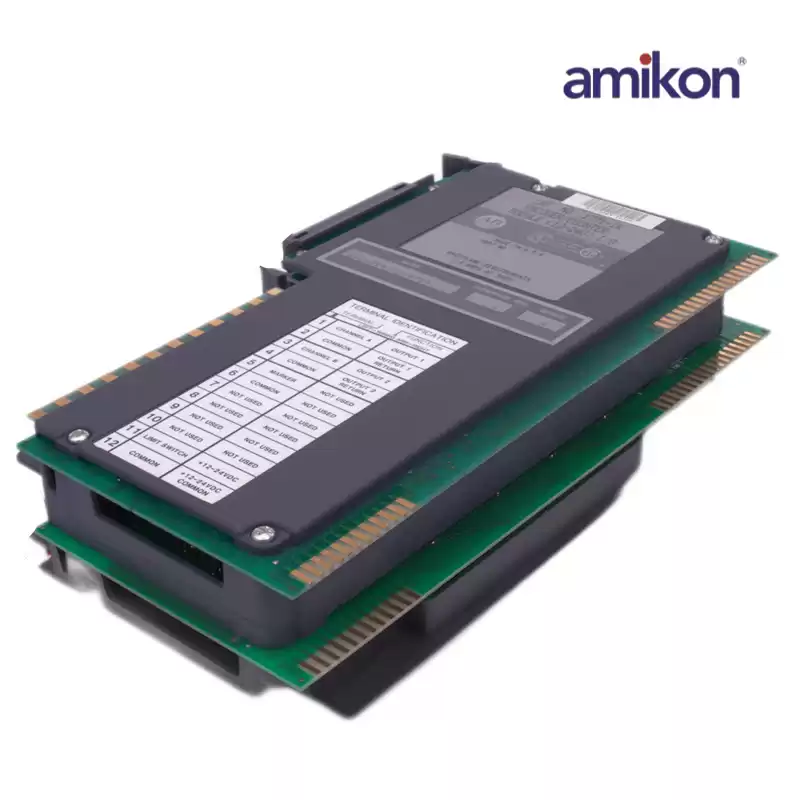

The 1771-IK module is a counter and encoder module for PLC-5 systems. The module supports 1 counter. The encoder supports dual channels and the counter supports 1 channel. The supported peak input pulse rate is 50 kilohertz. The 1771-IK module supports both the block transfer and single transfer modes. The module requires an external power supply rated for 12 to 24 Volts DC. The input circuits require a maximum current rating of 170 milliamps and the output circuits require a maximum current of 1.08 Amps.
The device driving the input terminal must be capable of sinking 10 milliamps of current for a 12 Volts DC external power supply. The device driving the input terminal must be capable of sinking 20 milliamps of current for a 24 Volts DC external power supply.The maximum power dissipation for the 1771-IK module is 12.1 Watts. The thermal dissipation for the module is 41.3 BTU per hour. The module is installed in an empty slot on an 1771 chassis.
|
|
