1771-IL
|
|
Dimensions ：
|
7cmx27cmx15.2cm
|
Weight：
|
0.6KG
|
|

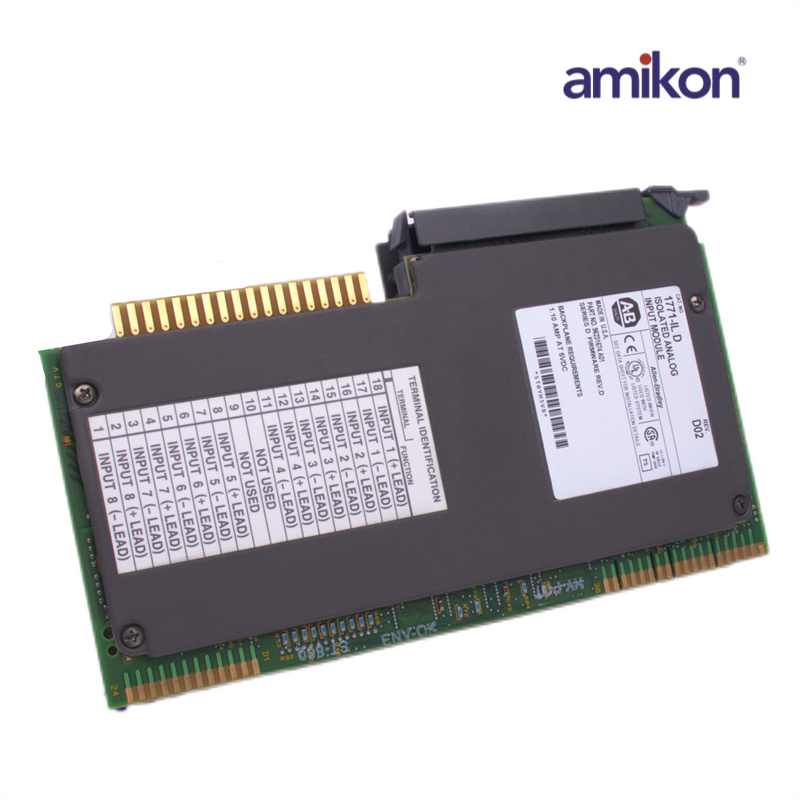

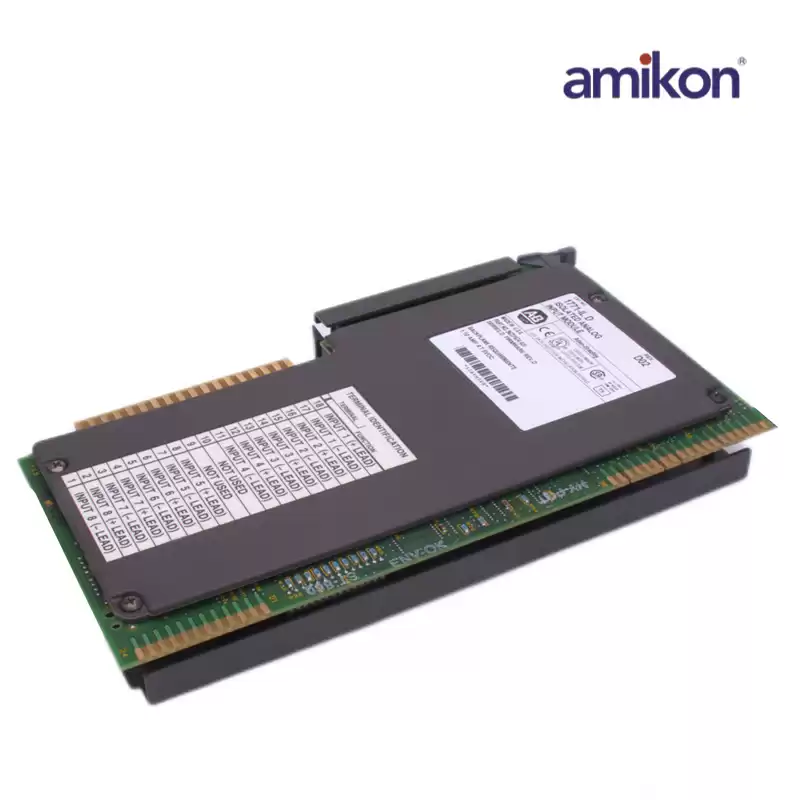

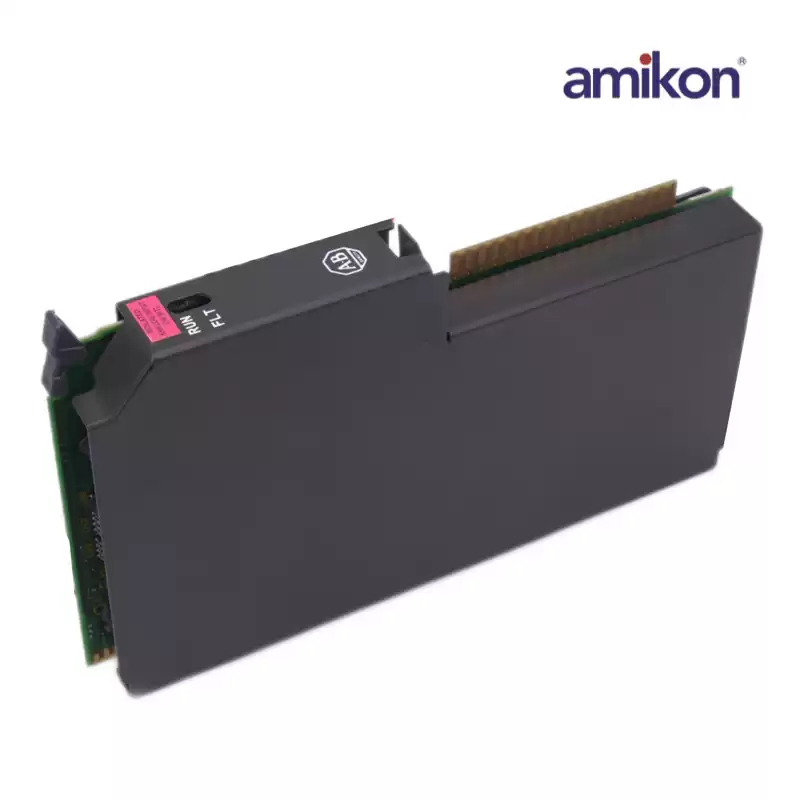

The 1771-IL is an analog input module with Eight (8) fully isolated differential input channels. This module belongs to the legacy PLC5 Programmable Logic Controller (PLC) platform that is manufactured by .
This module is compatible for use with instruments that provides voltage and current signals. Specifically, signal range supported by this controller are 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, for Voltage and 4 to 20mA, 0 to 20mA, and -20 to +20mA for Current signals.The 1771-IL has an integral open circuit detection, Input overvoltage protection and an Auto-Calibration capability.
|
|
